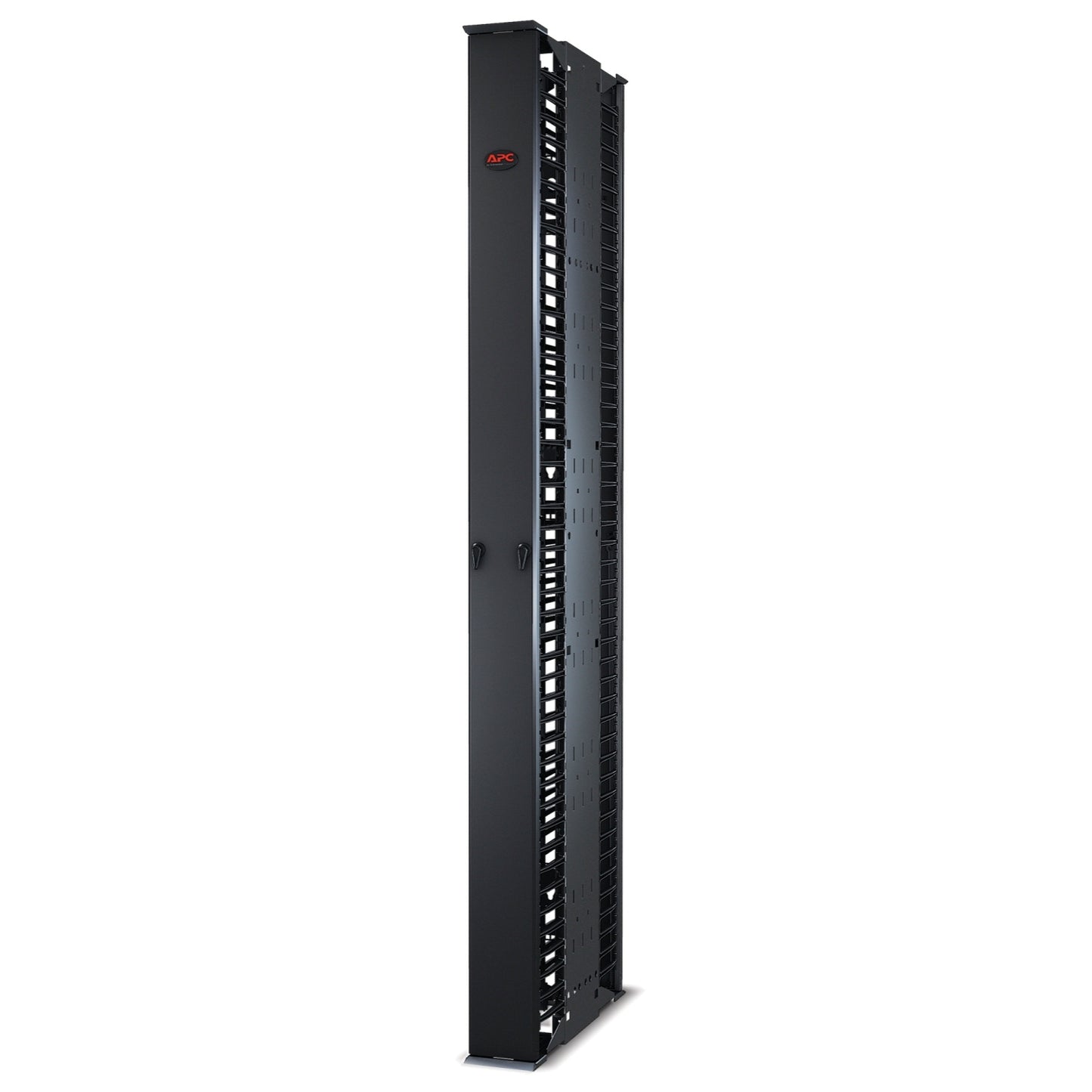

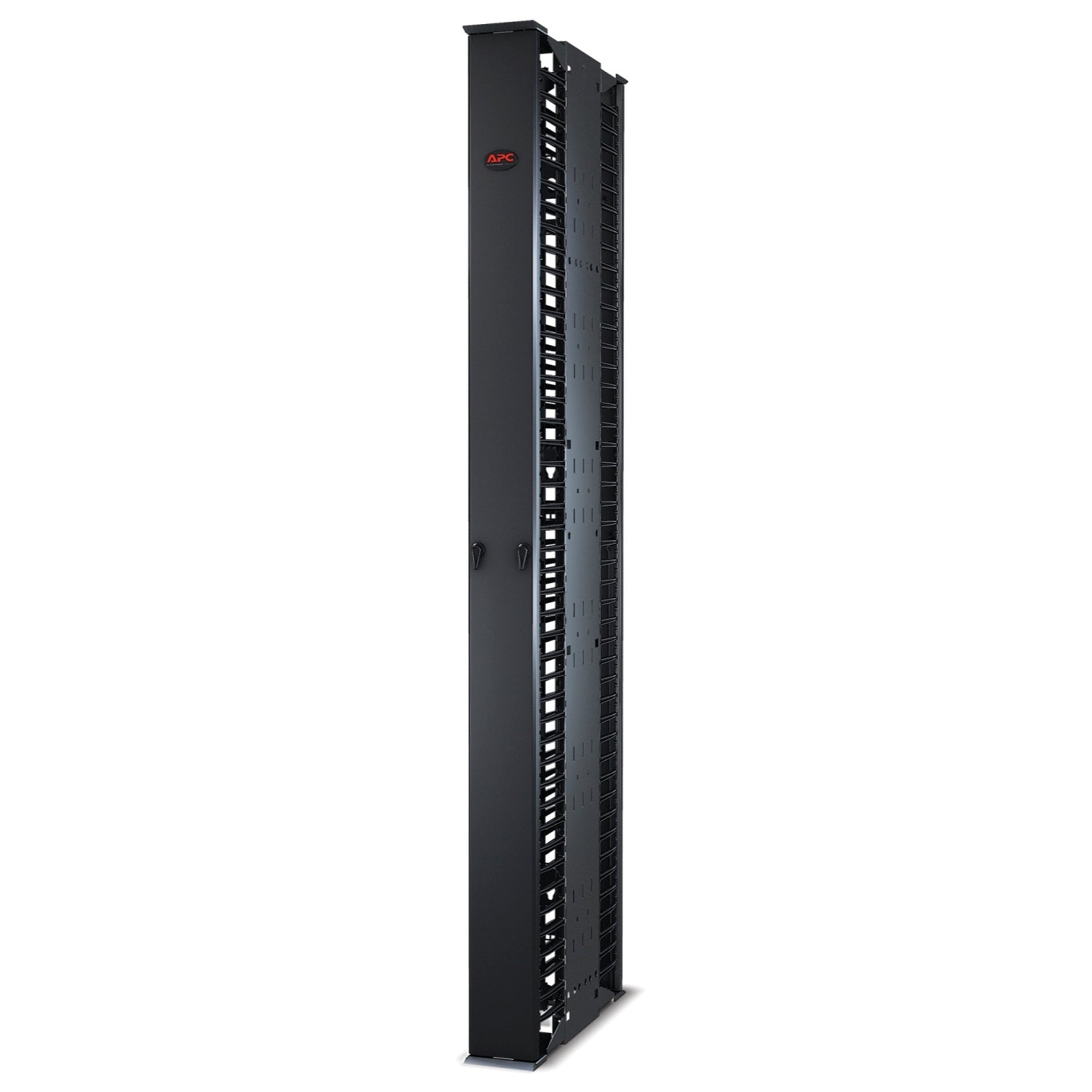

APC AR8625 | CDX Vertical Cable Manager, 84"H x 6"W, Double-Sided with Doors

Name: APC AR8625 | CDX Vertical Cable Manager, 84"H x 6"W, Double-Sided with Doors
Brand: APC
SKU: AR8625
Price: 2047.86 AUD
Availability: BackOrder

Authorised APC Partner

SKU:AR8625

Stock Status: Enquire

$2,047.86 inc. GST

$1,861.69 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

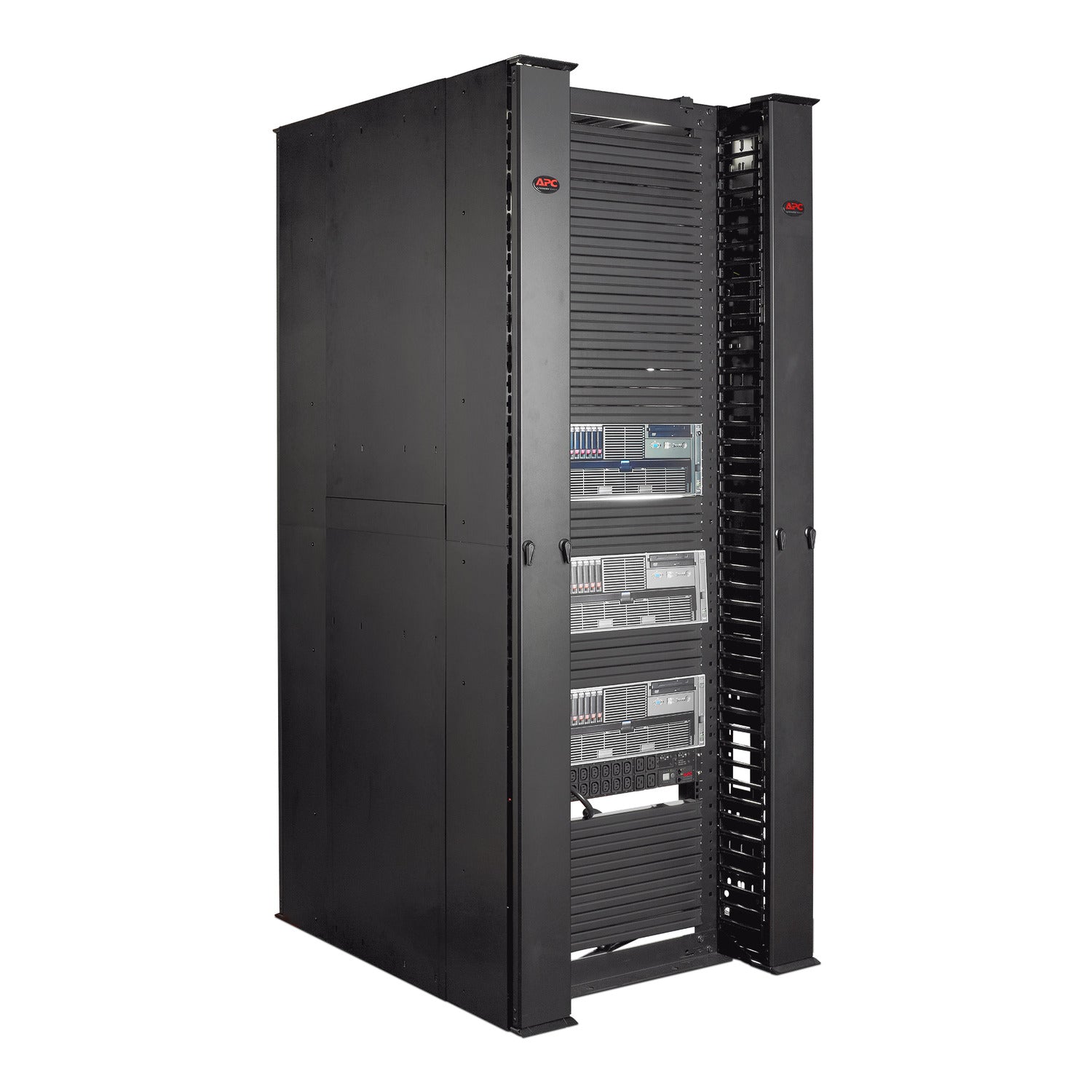

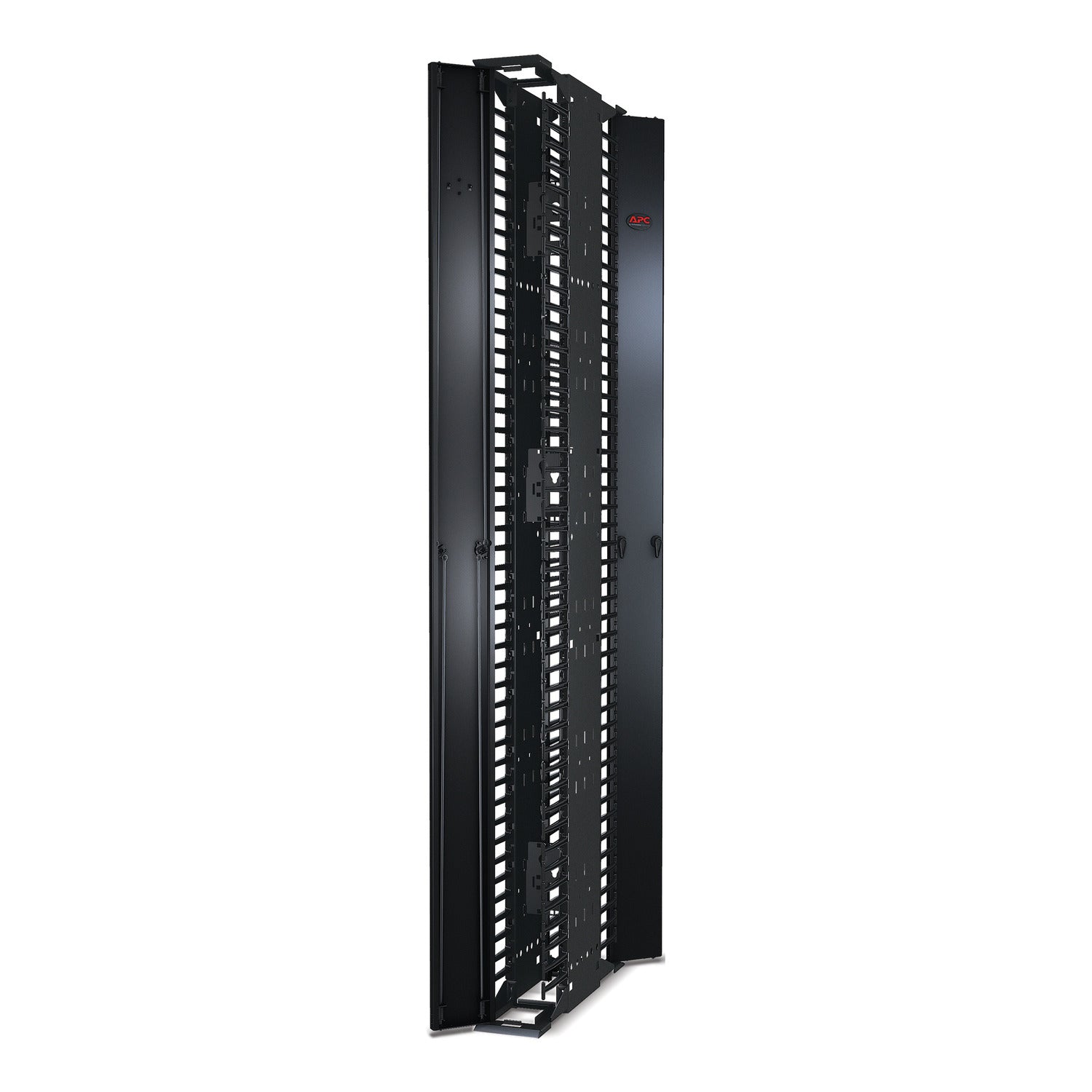

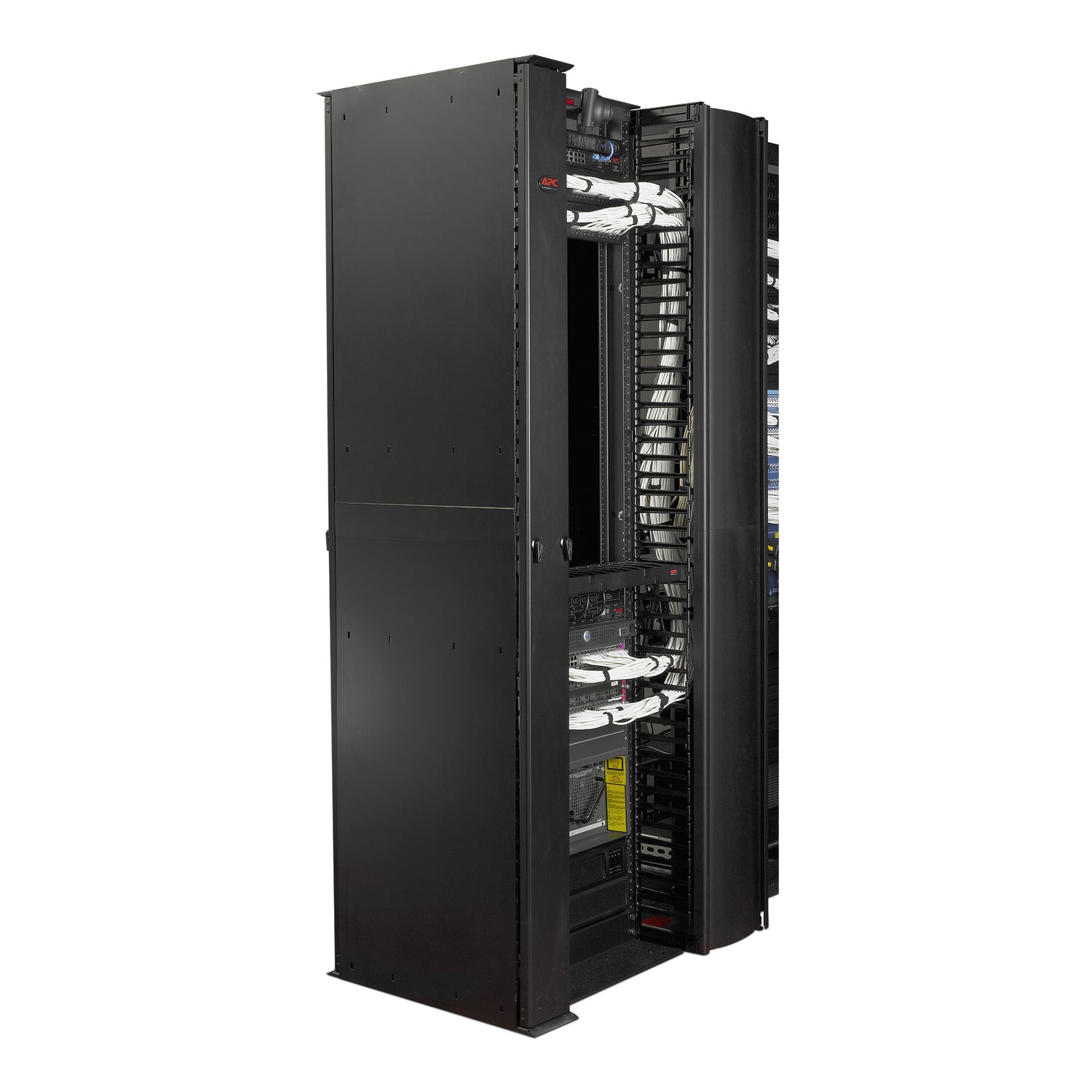

The APC CDX Vertical Cable Manager delivers high-capacity, organised cable routing for 2-post and 4-post open frame racks in data centre and server room environments. At 84 inches tall with a 6-inch wide double-sided cable channel, it provides ample capacity for dense patching applications, with smooth plastic fingers at 1U increments and multiple internal cable tie-off locations to keep cabling neat and accessible on both sides.

Shipping fully assembled for fast deployment, this cable manager includes midspan brackets and supports toolless Rack PDU installation via multi-position backplate mounting. UL Listed and RoHS/REACH certified, it suits Australian enterprise and colocation deployments where cable management compliance and presentation matter.

Features

- Double-sided cable channel provides high cable capacity for dense patching environments

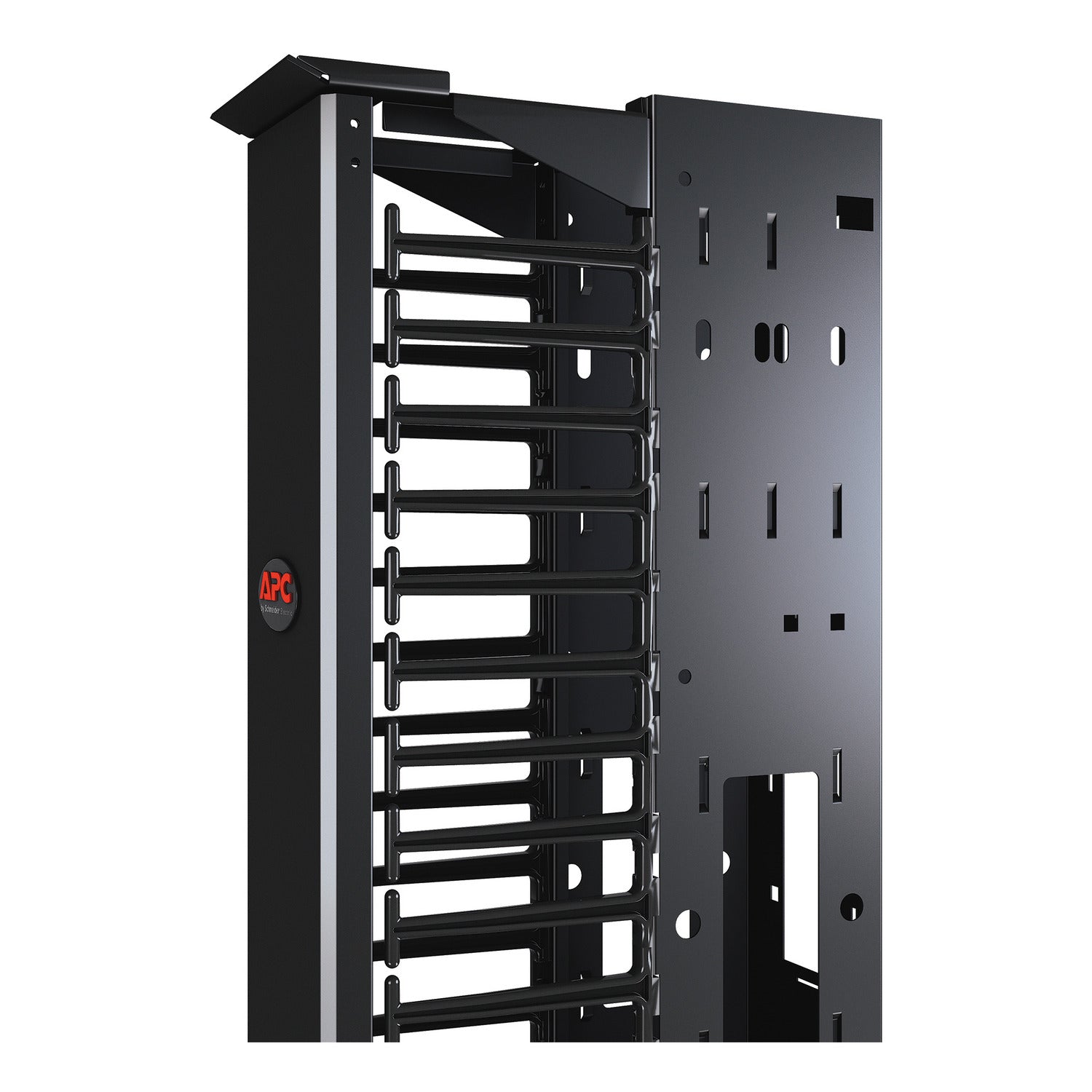

- Smooth plastic fingers at 1U increments ensure organised, snag-free cable routing
- Multiple internal cable tie-off locations secure cables and prevent slack from interfering with equipment
- Ships fully assembled to minimise installation time and labour
- Backplates include multiple mounting positions for toolless Rack PDU installation
- Compatible with both 2-post and 4-post open frame rack configurations
- Includes midspan brackets and installation guide
- UL Listed, RoHS, and REACH certified for enterprise compliance requirements
- 2-Year Limited Warranty

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Height: 84 in (2134 mm)
- Width: 5.98 in (152 mm)
- Depth: 25.98 in (660 mm)
- Weight: 65.92 lb (approx. 29.9 kg)
- Colour: Black
- Material: Plastic
- Configuration: Double-Sided with Doors
- Rack Compatibility: 2-Post and 4-Post Open Frame Racks
- Certifications: UL Listed, RoHS, REACH
- Package Dimensions: 32.5"W x 90"D x 12"H

FAQs

Q: What rack types is the AR8625 compatible with?
A: The AR8625 is designed for use with 2-post and 4-post open frame racks. It is not intended for enclosed cabinet installations.

Q: What does 'double-sided with doors' mean for this cable manager?
A: Double-sided means cables can be routed and managed on both the front and rear sides of the vertical manager, significantly increasing capacity for dense patching environments. The doors help conceal cables and maintain a tidy appearance while still allowing easy access.

Q: Does the AR8625 arrive pre-assembled or require on-site assembly?
A: It ships fully assembled, which reduces installation time considerably. Midspan brackets and an installation guide are included in the box.

Q: Can I mount a Rack PDU to the AR8625?
A: Yes. The backplates include multiple mounting positions that support toolless Rack PDU installation, making it convenient to integrate power distribution alongside your cable management.

Q: What certifications does the AR8625 hold?
A: The AR8625 is UL Listed and complies with both RoHS and REACH environmental standards, making it suitable for regulated enterprise and government data centre environments in Australia.
