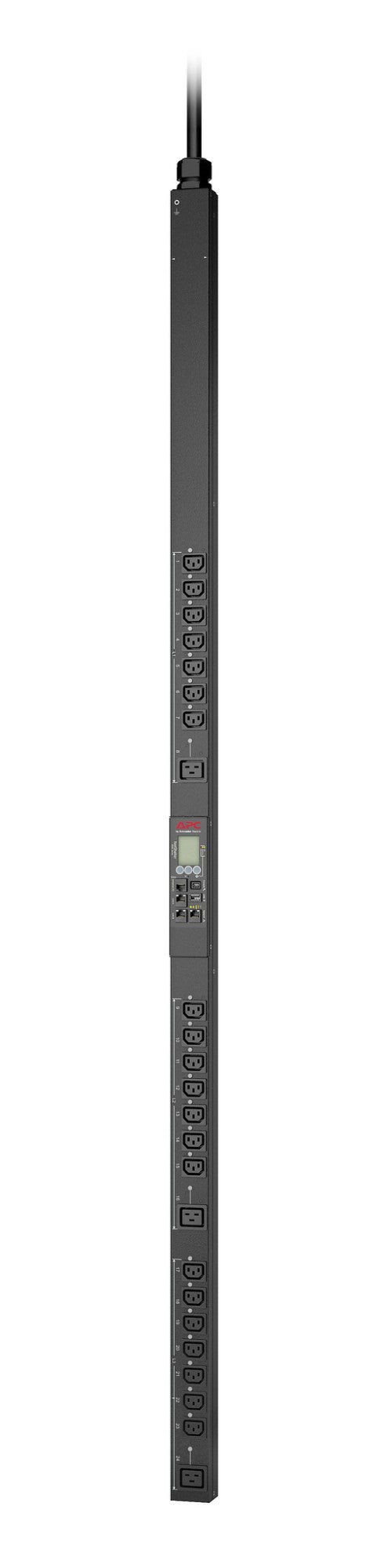

• APC APDU9981EU3 black metal rack PDU with outlets and display
1 1

APC

APC APDU9981EU3 | Rack PDU 9000 Switched ZeroU, 11kW, 3-Phase, 21x C13, 3x C19

APC APDU9981EU3 | Rack PDU 9000 Switched ZeroU, 11kW, 3-Phase, 21x C13, 3x C19

Authorised APC Partner

APDU9981EU3

Stock Status: Enquire

$3,295.45 inc. GST
$2,995.86 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC APDU9981EU3 is a switched ZeroU rack PDU from the APC Rack PDU 9000 range, delivering 11.0kW of power from a 400V 3-phase 16A input to 230V outlets. It provides 21 IEC C13 and 3 IEC C19 outlets with per-outlet switching, making it well suited to dense server racks that need remote power control and high-draw equipment support.

The vertical 0U form factor mounts to the side of NetShelter enclosures so it does not consume rack U-space. Network management over SNMP and Redfish allows outlet-level on/off control and integration with existing monitoring and orchestration tools.

Features

- Switched PDU with outlet-level on/off control
- Remote network management via SNMP and Redfish
- ZeroU vertical mounting saves rack U-space in NetShelter enclosures
- Mixed C13 and C19 outlets for servers and high-draw equipment
- 3-phase 16A input supports 11kW load capacity

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Input: 400V, 3-phase, IEC 60309 16A 3P+N+PE
- Output voltage: 230V
- Rated line current: 16A
- Load capacity: 11kW / 11000VA
- Frequency: 50/60Hz
- Outlets: 21x IEC 60320 C13 and 3x IEC 60320 C19 (24 total)
- Form factor: 0U (ZeroU), side mounting
- Cord length: approx. 1.83m
- Network management: SNMP, Redfish
- Dimensions (H x W x D): 179.2 x 5.5 x 4.6cm
- Net weight: 7kg
- Colour: Black
- Operating temperature: -5 to 60°C
- Operating humidity: 5-95%
- Certifications: cUL, UL, FCC Part 15 Class A, VDE
- Included: installation guide, rack mounting brackets, safety guide

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input supply does the APDU9981EU3 require?
A: It requires a 400V 3-phase supply with an IEC 60309 16A 3P+N+PE connection, and provides 230V at the outlets.

Q: How many outlets does it provide and what types?
A: It has 24 outlets in total: 21 IEC 60320 C13 and 3 IEC 60320 C19.

Q: Can individual outlets be switched on and off remotely?
A: Yes. This is a switched PDU with outlet-level control, managed over the network using SNMP and Redfish.

Q: Does this PDU take up rack space?
A: No. It is a ZeroU (0U) unit that mounts vertically at the side of the rack, leaving all U-space free for equipment.

Q: What is the maximum load capacity?
A: It is rated for 11kW (11000VA) at a 16A rated line current.

Q: What is included in the box?
A: The unit ships with rack mounting brackets, an installation guide and a safety guide.
