• APC APDU10450SW black vertical switched rack PDU with outlets and lights
1 1

APC

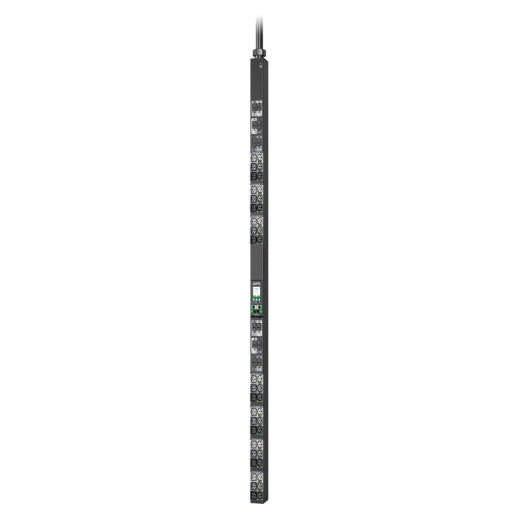

APC APDU10450SW | NetShelter Advanced Switched 3-Phase Rack PDU, 42 Outlets, 34.6kW

APC APDU10450SW | NetShelter Advanced Switched 3-Phase Rack PDU, 42 Outlets, 34.6kW

Authorised APC Partner

APDU10450SW

Stock Status: Enquire

$6,611.40 inc. GST
$6,010.36 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Advanced switched 3-phase rack PDU delivers up to 43.5kW at 400V 63A or 34.6kW at 415V 60A through a 560P6 (IEC309) input. With 42 outlets in a 2.2 inch wide form factor, it suits high-density server racks that need remote on/off control of individual outlets, PDU-level metering and network management.

The outlets are 4-in-1 combination types that accept C13, C15, C19 or C21 plugs, with 21 C13/C15/C19/C21 outlets and 21 C13/C15 outlets. An interactive LCD shows active power measurements, and the PDU is rated to operate at full load up to 60 C (140 F). An alternating phase design simplifies cord management and helps balance loads across the three phases.

Features

- 4-in-1 combination outlets usable as C13, C15, C19 or C21
- Maximum outlet density: 42 outlets in a 2.2 inch wide form factor
- Outlets identified by breaker and input phase on 3-phase models
- Alternating phase design for easier cord management and better load balancing
- Power Sharing lets cascaded PDUs keep the Network Management Card running through an AC power loss
- Live Swap Network Management Card can be replaced without powering down the PDU or connected devices
- Remote switching of outlets and PDU-level power metering with overload notification

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Input: 3PH, 560P6 (IEC309)
- Rated power: 43.5kW at 400V 63A or 34.6kW at 415V 60A
- Outlets: 42 total, (21) C13/C15/C19/C21 and (21) C13/C15
- Outlet switching: Switched, remote on/off
- Display: Interactive LCD
- Metering: Active power measurements (volts, amps, kW, kWh)
- Network management: Full-featured network management capability
- Maximum operating temperature at full load: 60 C (140 F)
- Form factor: 2.2 inch wide, 42 outlets

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does this PDU use?
A: It has a 3-phase 560P6 (IEC309) input. It is rated for 43.5kW at 400V 63A or 34.6kW at 415V 60A, so the supply circuit and plug must match your site voltage and current rating.

Q: Which plug types do the outlets accept?
A: The 42 outlets are 4-in-1 combination types. There are 21 outlets that accept C13, C15, C19 or C21 plugs, and 21 outlets that accept C13 or C15 plugs.

Q: Can individual outlets be switched on and off remotely?
A: Yes. This is a switched model, so outlets can be turned on and off remotely through the network management capability.

Q: Does it provide power metering?
A: Yes. It provides PDU-level metering of active power measurements (volts, amps, kW, kWh), shown on an interactive LCD and available through network management, with overload notification.

Q: What happens to management if AC power is lost on a cascaded PDU?
A: Power Sharing allows PDUs cascaded over 2 Ethernet ports to keep the Network Management Card running through an AC power loss.

Q: Can the Network Management Card be replaced without downtime?
A: Yes. The Live Swap Network Management Card can be replaced without powering down the PDU or the connected devices.
