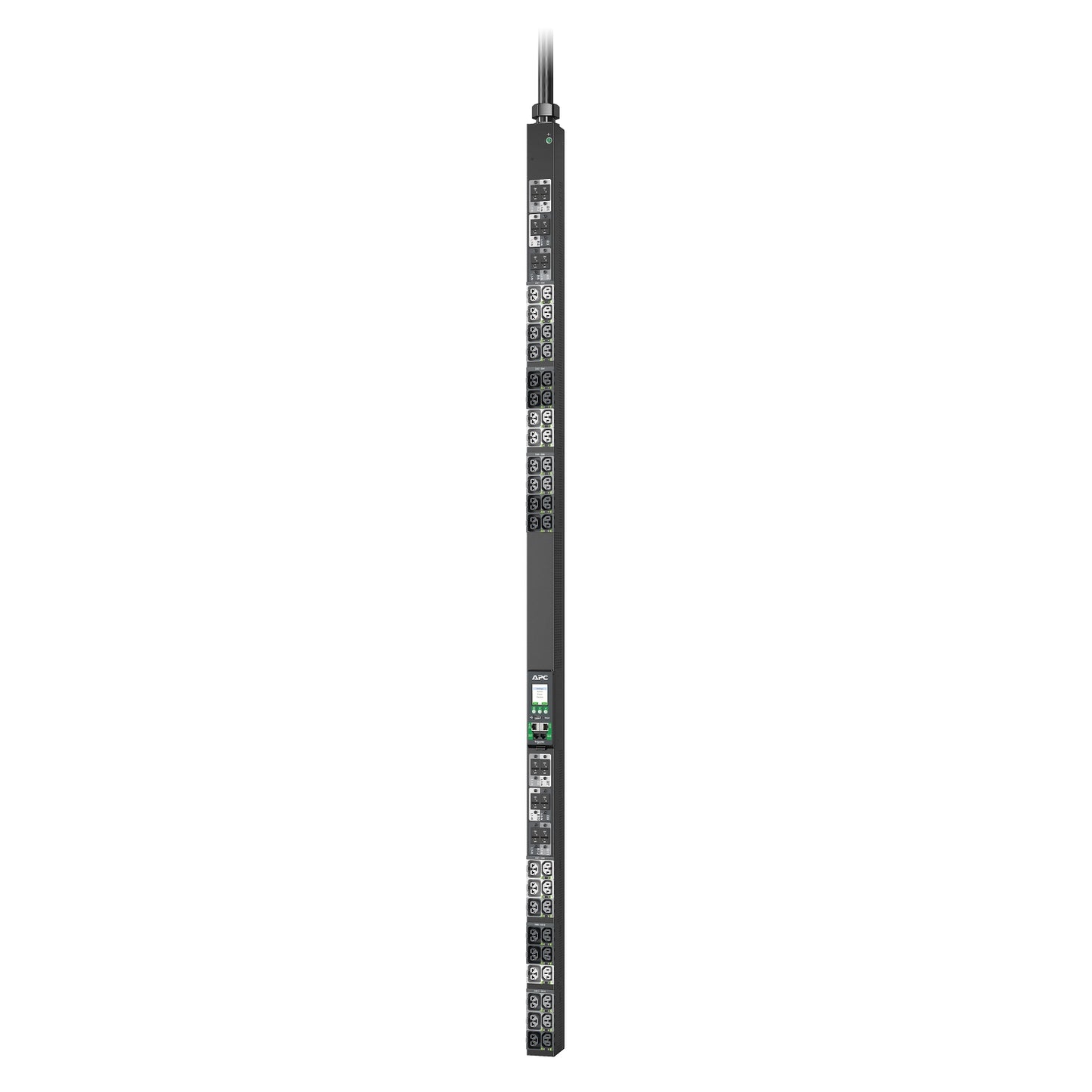

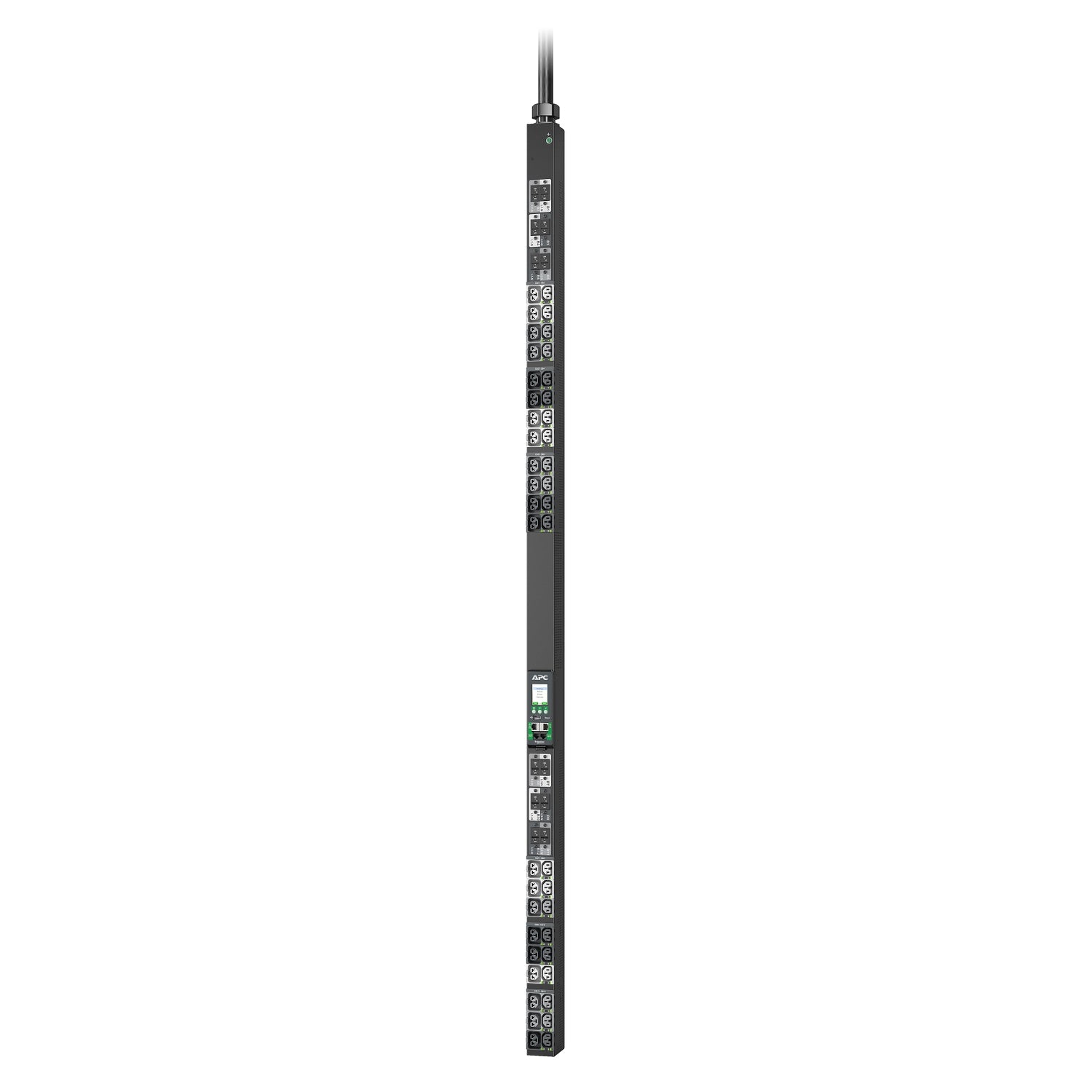

APC APDU10450SM | NetShelter Advanced Switched Metered Rack PDU, 43.5kW, 42 Outlets

APC APDU10450SM | NetShelter Advanced Switched Metered Rack PDU, 43.5kW, 42 Outlets

Authorised APC Partner

APDU10450SM

Stock Status: Enquire

$8,074.37 inc. GST
$7,340.34 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Advanced switched metered rack PDU is a 0U vertical, 3-phase power distribution unit with 42 outlets, rated for 34.6kW at 415V 60A or 43.5kW at 400V 63A through an IEC 60309 560P6 input. It provides remote outlet switching and metering at both outlet level and PDU level, making it well suited to high-density racks that need remote power cycling and accurate power monitoring.

Outlets are made up of 21 four-in-1 combination outlets (C13/C15/C19/C21) and 21 C13/C15 outlets in a slim 2.2 inch wide body. An integrated network management card with Ethernet and an interactive LCD display provide local and remote access to active power measurements including volts, amps, kW and kWh.

Features

- 4-in-1 combination outlets usable as C13, C19, C15 or C21
- 42 outlets in a 2.2 inch wide form factor
- Outlets colour-coded or labelled by breaker and input phase on 3-phase models
- Alternating phase outlet groups for easier cord management and load balancing
- Power Sharing lets cascaded PDUs keep a Network Management Card running during AC power loss
- Live Swap Network Management Card can be replaced without powering down the PDU or connected devices
- Rated to operate up to 60C (140F) at full load
- Outlet-level and PDU-level metering with overload notification
- Remote outlet switching for power cycling connected equipment

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Product type: Switched, metered outlet rack PDU
- Input: 3PH, IEC 60309 560P6
- Capacity: 34.6kW at 415V 60A, or 43.5kW at 400V 63A
- Outlets: 42 total, (21) C13/C15/C19/C21 and (21) C13/C15
- Mounting: Rack-mounted, 0U vertical
- Metering: Outlet-level and PDU-level
- Management: Network management card with Ethernet
- Display: Interactive LCD
- Height: 182.6 cm (71.89 in)
- Width: 5.6 cm (2.20 in)
- Depth: 7.5 cm (2.95 in)
- Net weight: 12.7 kg (28.0 lb)

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the APDU10450SM use?
A: It uses a 3-phase IEC 60309 560P6 input. It is rated for 34.6kW at 415V 60A or 43.5kW at 400V 63A.

Q: What outlet types are provided?
A: There are 42 outlets in total: 21 four-in-1 combination outlets that accept C13, C15, C19 or C21 connectors, and 21 outlets that accept C13 or C15 connectors.

Q: Can individual outlets be switched remotely?
A: Yes. This is a switched PDU, so outlets can be controlled remotely through the network management card, and metering is available at both outlet and PDU level.

Q: How is this PDU mounted?
A: It is a 0U vertical rack PDU, so it mounts alongside the equipment in the rack without using any rack unit space.

Q: What power data can I monitor?
A: The PDU reports active power measurements including volts, amps, kW and kWh, viewable on the interactive LCD display or through the network management card.

Q: Can the network management card be replaced without downtime?
A: Yes. The Live Swap network management card can be replaced without powering down the PDU or the connected devices.
