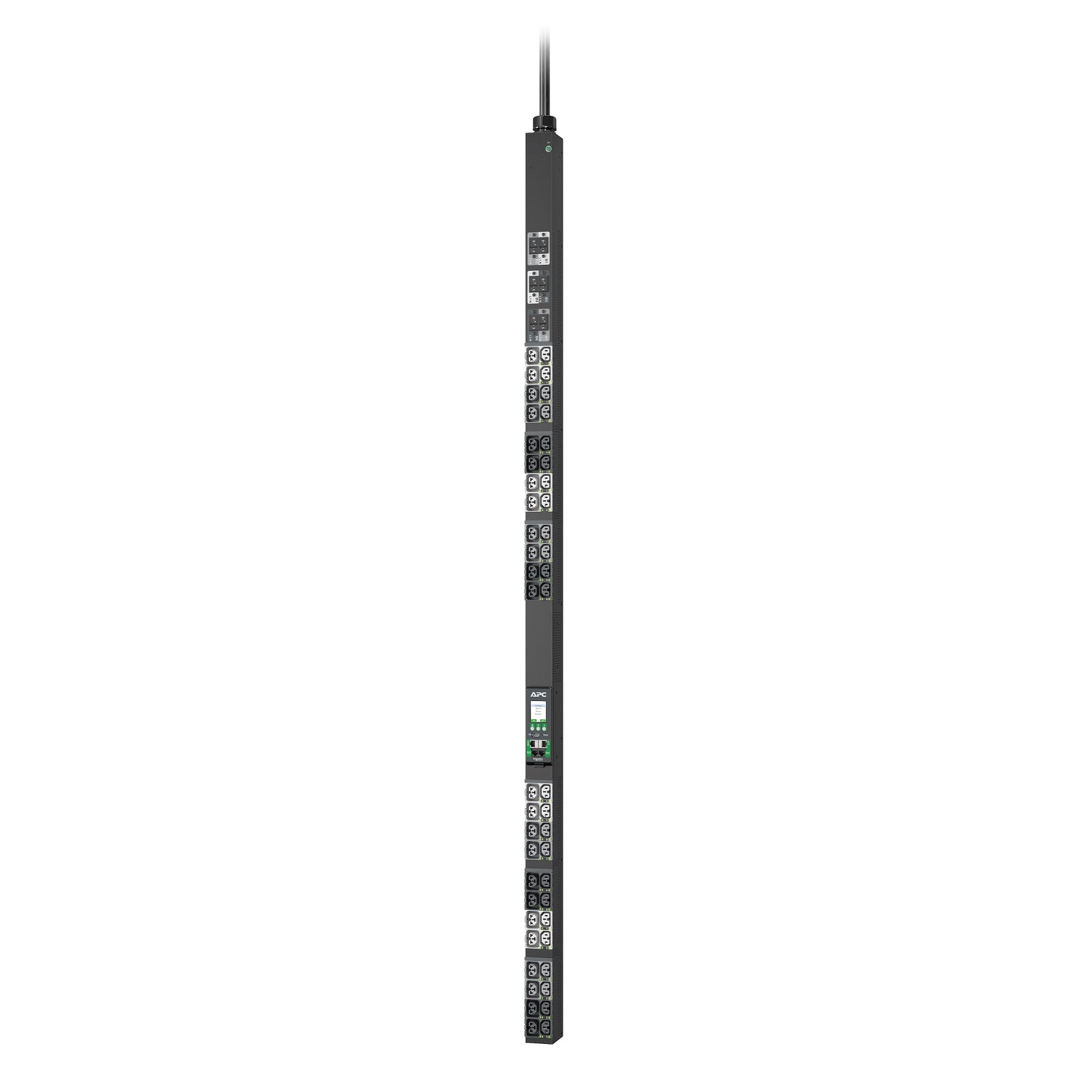

APC APDU10350SW | NetShelter Advanced Switched 3-Phase Rack PDU, 17.3kW 415V 30A, 48 Outlets

APC APDU10350SW | NetShelter Advanced Switched 3-Phase Rack PDU, 17.3kW 415V 30A, 48 Outlets

Authorised APC Partner

APDU10350SW

In stock:2

$4,615.61 inc. GST
$4,196.01 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Rack PDU Advanced APDU10350SW is a 0U vertical, switched three-phase rack PDU rated at 17.3 kW at 415V/30A, with an IEC 60309 530P6 (3P+N+PE) input and 48 outlets. It suits high-density server and network racks where remote outlet control and power visibility are required.

Outlets are split into 24 x C13/C15/C19/C21 combination outlets and 24 x C13/C15 outlets, so a single PDU can feed a mix of equipment. Switched outlets allow remote on/off control, while PDU-level metering is available through remote access and the local interactive LCD display. Dual 10/100/1000 Ethernet ports support network management and daisy chaining. Outlets are colour-coded by breaker and input phase to simplify deployment.

Features

- Switched outlets allow remote on/off control
- 4-in-1 combination outlets work as C13, C19, C15 or C21 for flexible deployment
- PDU-level power metering via remote access and local display, with overload notification
- Active power measurements (volts, amps, kW, kWh)
- Live-swap network management card can be replaced without downtime
- Colour-coded outlets labelled by breaker and input phase to simplify deployment
- High outlet density: 48 outlets in a 2.2 inch wide form factor

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Switched
- Phase: Three-phase
- Power rating: 17.3 kW / 17.3 kVA at 415V/30A
- Input plug: IEC 60309 30A 3P+N+PE (530P6)
- Total outlets: 48
- Outlet types: 24 x IEC 60320 C13/C15/C19/C21 combination, 24 x IEC 60320 C13/C15
- Output voltage: 240 V AC
- AC input frequency: 50 - 60 Hz
- Mounting: 0U vertical
- Display: Interactive LCD
- Network management: Dual 10/100/1000 Ethernet
- Daisy chain: Yes
- Cord length: 1.8 m
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input plug does the APDU10350SW use?
A: It uses an IEC 60309 30A 3P+N+PE (530P6) input plug, rated at 17.3 kW at 415V/30A.

Q: Can I switch individual outlets on and off remotely?
A: Yes. This is a switched PDU, so outlets can be turned on and off remotely through network management.

Q: What types of equipment plugs does it support?
A: It has 24 combination outlets that accept C13, C15, C19 or C21 connectors, plus 24 outlets that accept C13 or C15 connectors.

Q: How is this PDU mounted in the rack?
A: It is a 0U vertical PDU, mounted in the side space of the rack so it does not use any rack unit space.

Q: Can I monitor power usage on the PDU?
A: Yes. PDU-level metering is available remotely and on the local interactive LCD display, including volts, amps, kW and kWh.

Q: Can the network management card be replaced without downtime?
A: Yes. The network management card is live-swappable, so it can be replaced without powering down the PDU or connected equipment.
