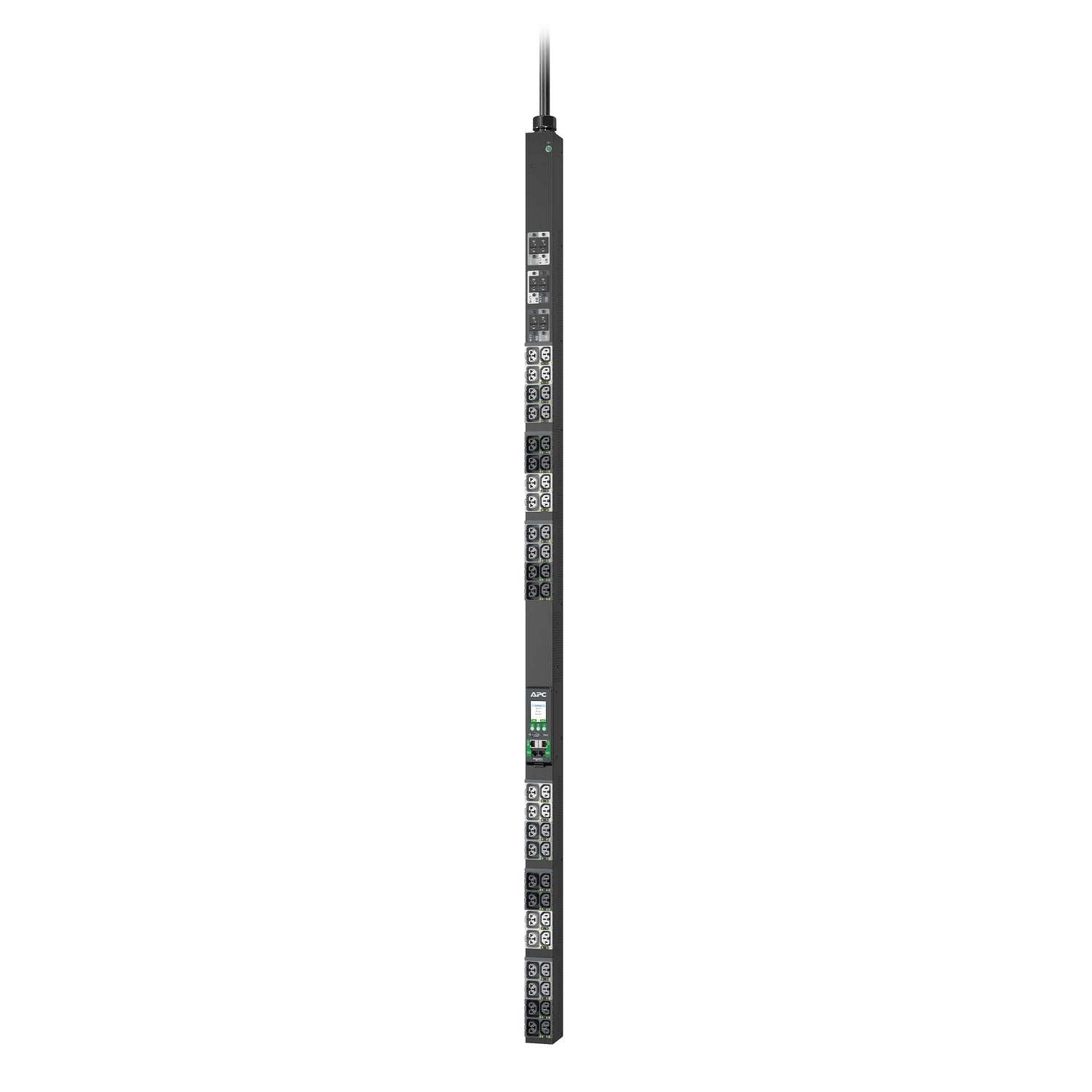

• APC APDU10350SM black metal rack PDU with outlets and green display
1 1

APC

APC APDU10350SM | NetShelter Advanced Switched Metered-by-Outlet Rack PDU, 3-Phase, 48 Outlets

APC APDU10350SM | NetShelter Advanced Switched Metered-by-Outlet Rack PDU, 3-Phase, 48 Outlets

Authorised APC Partner

APDU10350SM

Stock Status: Enquire

$5,634.82 inc. GST
$5,122.56 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Rack PDU Advanced APDU10350SM is a 0U vertical three-phase switched rack PDU with metering at the outlet level, delivering 48 outlets in a compact 56 mm wide body. It is rated 22.1 kW at 400 V/32 A or 17.3 kW at 415 V/30 A and connects to the supply through an IEC 60309 (530P6) input plug, making it suited to high-density racks that need remote power control and per-outlet visibility.

The 48 outlets are made up of 24 C13/C15/C19/C21 combination outlets and 24 C13/C15 outlets, colour coded and labelled by breaker and input phase to simplify deployment. Circuit breaker monitoring, an alternating phase outlet layout, hydraulic magnetic circuit breakers and a 60 C operating temperature rating support dependable operation in demanding data centre environments. Dual 10/100/1000 network ports keep cascaded PDUs manageable if one unit loses AC power, and a colour LCD display provides local status. Optional APC AP8700 locking power cords are supported.

Features

- Maximum outlet density with 48 outlets in a 2.2 inch wide form factor
- Per-outlet metering and switching for remote power control and monitoring
- Outlets colour coded and labelled by breaker and input phase to simplify deployment
- Circuit breaker monitoring
- Alternating phase outlet layout
- Hydraulic magnetic circuit breakers
- 60 C (140 F) operating temperature rating
- Dual network ports keep cascaded PDUs' Network Management Cards running if one PDU loses AC power
- Live-swap Network Management Card
- Environmental sensor support
- Colour LCD display for local status
- Compatible with optional APC AP8700 locking power cords

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 48 AC outlets: 24 x C13/C15/C19/C21 combination and 24 x C13/C15
- PDU types: Switched, Metered, Metered-by-outlet
- Three-phase input with IEC 60309 (530P6) plug
- Load capacity: 22.1 kW at 400 V/32 A or 17.3 kW at 415 V/30 A (22100 VA)
- Nominal input voltage: 400 V, nominal output voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Rack capacity: 0U, vertical mounting
- Display: colour LCD
- Network: dual Ethernet ports (10/100/1000)
- Operating temperature: -5 to 60 C
- Dimensions (W x D x H): 56 x 75 x 1780 mm
- Weight: 9.6 kg
- Colour: Black
- Certifications: CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What is the power rating of the APDU10350SM?
A: It is rated 22.1 kW at 400 V/32 A or 17.3 kW at 415 V/30 A, with a load capacity of 22100 VA.

Q: What input plug does this PDU use?
A: It has a three-phase IEC 60309 (530P6) input plug.

Q: What outlet types are provided?
A: There are 48 outlets in total: 24 combination C13/C15/C19/C21 outlets and 24 C13/C15 outlets.

Q: Can I switch and monitor individual outlets?
A: Yes. This model is switched and metered-by-outlet, so each outlet can be monitored and controlled remotely.

Q: How is it mounted in the rack?
A: It is a 0U vertical PDU, so it mounts alongside the equipment and does not use any rack unit space.

Q: Does it support locking power cords?
A: Yes, it is compatible with optional APC AP8700 locking power cords.
