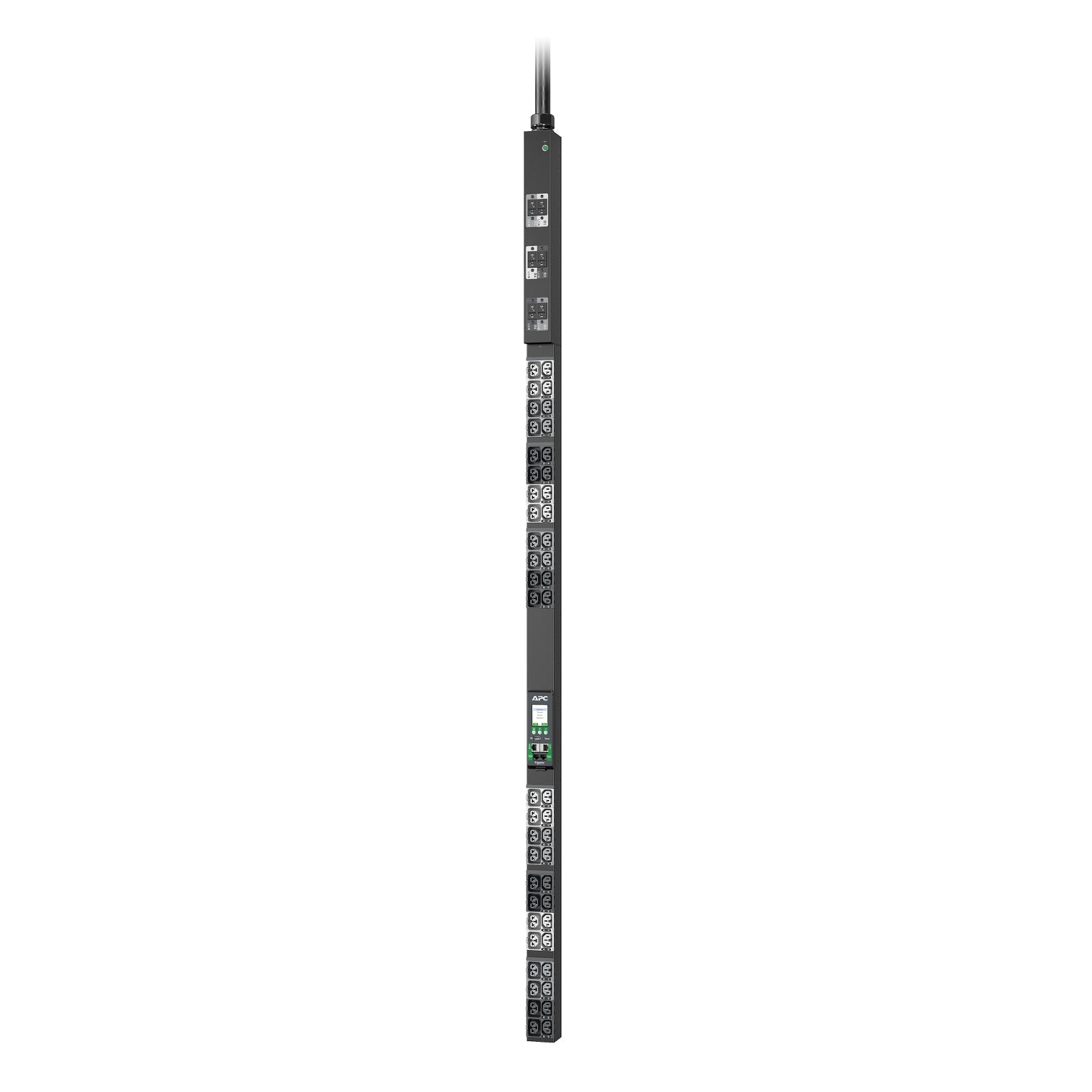

• Black APC APDU10350ME metered 3-phase rack PDU with 48 outlets
1 1

APC

APC APDU10350ME | NetShelter Rack PDU Advanced, Metered, 3-Phase, 48 Outlets, 17.3kW

APC APDU10350ME | NetShelter Rack PDU Advanced, Metered, 3-Phase, 48 Outlets, 17.3kW

Authorised APC Partner

APDU10350ME

Stock Status: Enquire

$3,075.72 inc. GST
$2,796.11 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter Rack PDU Advanced is a metered, three-phase, 0U vertical rack PDU with 48 outlets, rated for 22.1kW at 400V/32A or 17.3kW at 415V/30A. It connects through an IEC 60309 30A 3P+N+PE (530P6) input with a 1.8m cord, and combines 24 x C13/C15/C19/C21 outlets with 24 x C13/C15 outlets for high-density power distribution in server and network racks.

An interactive LCD display shows active power measurement at the rack, while the network management interface (10/100/1000BASE-T) allows remote monitoring of current, voltage, power, temperature and humidity. The slim 2.2 inch wide form factor mounts vertically at the side of the rack and is compatible with most NetShelter SX enclosures and third-party racks.

Features

- Maximum outlet density with 48 outlets in a 2.2 inch wide form factor
- 4-in-1 outlets (C13/C15/C19/C21) for flexible equipment deployment
- Interactive LCD display with active power measurement
- Live Swap Network Management Card, replaceable without powering down the PDU
- Full network management capability for remote monitoring
- Colour-coded outlets for easier circuit identification
- Compatible with most NetShelter SX enclosures and third-party racks

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 48 outlets: 24 x C13/C15/C19/C21 and 24 x C13/C15
- Metered, 3-phase, 0U vertical mounting
- 22.1kW at 400V/32A or 17.3kW at 415V/30A
- Input connection: IEC 60309 30A 3P+N+PE (530P6)
- Input cord length: 1.8m
- Main output voltage: 240V
- AC input frequency: 50-60Hz
- Interactive LCD display
- Network management: 10/100/1000BASE-T
- Monitoring: current, voltage, power, temperature, humidity
- Firmware upgradeable via network or USB
- Daisy chain supported
- Dimensions (H x W x D): 178.0 x 5.6 x 7.5 cm
- Weight: 8.4kg
- IP44 degree of protection
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the APDU10350ME use?
A: It uses an IEC 60309 30A 3P+N+PE (530P6) input connection on a 1.8m cord. A matching three-phase supply is required.

Q: What is the power rating of this PDU?
A: It is rated for 22.1kW at 400V/32A or 17.3kW at 415V/30A, depending on the supply voltage and current.

Q: What types of outlets does it provide?
A: It provides 48 outlets in total: 24 x C13/C15/C19/C21 and 24 x C13/C15. This suits both standard IEC C13 equipment and higher-draw C19 devices.

Q: Can I monitor power remotely?
A: Yes. The PDU has a network management interface (10/100/1000BASE-T) and monitors current, voltage, power, temperature and humidity. An interactive LCD display shows readings locally.

Q: How does this mount in the rack?
A: It is a 0U vertical PDU that mounts at the side of the rack. It is compatible with most NetShelter SX enclosures and third-party racks.

Q: Can the network management card be replaced without downtime?
A: Yes. The Live Swap Network Management Card can be replaced without powering down the PDU.
