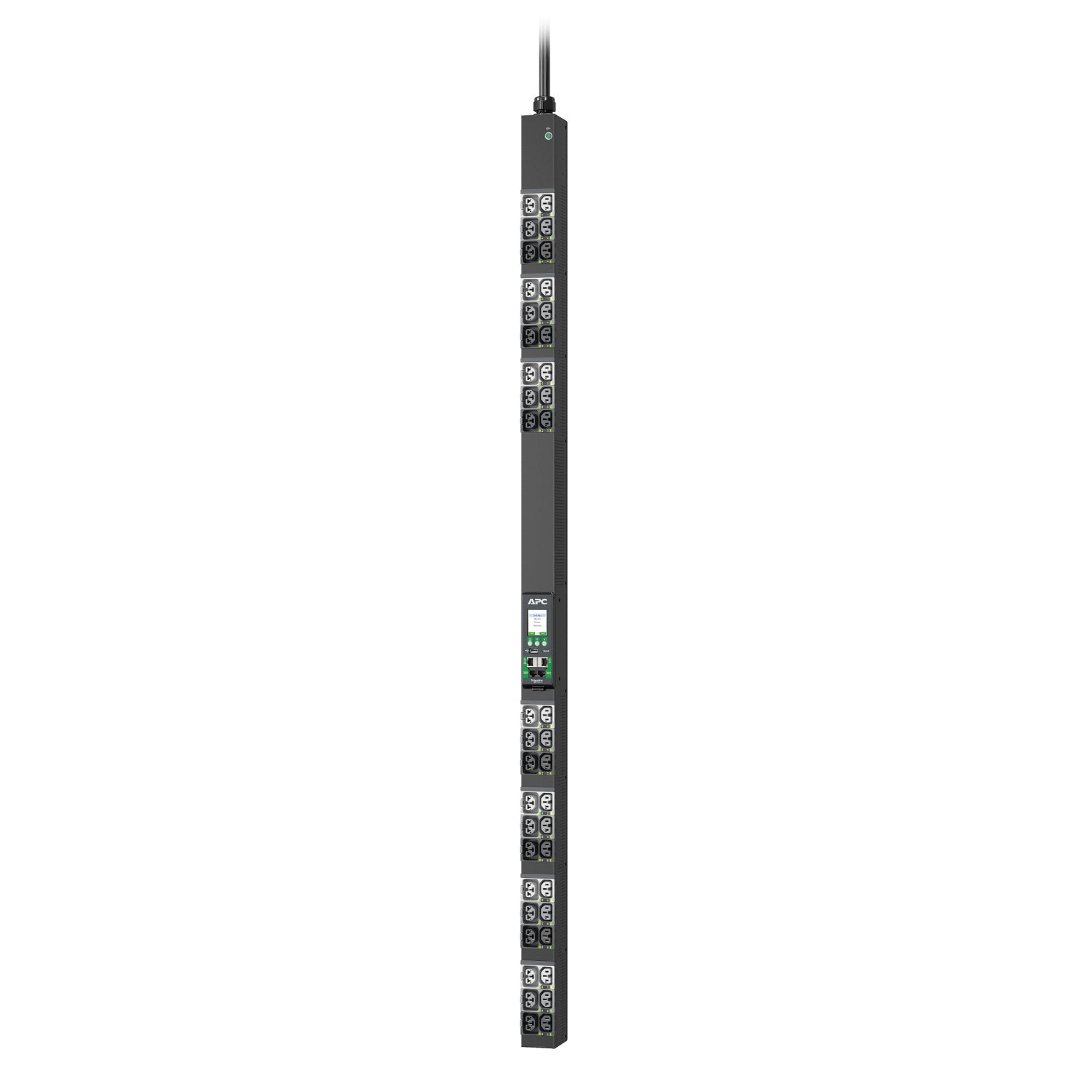

• APC APDU10250SW rack PDU with black P205E power strip and digital display
1 1

APC

APC APDU10250SW | NetShelter Rack PDU Advanced Switched 3-Phase, 11.5kW, 42 Outlets

APC APDU10250SW | NetShelter Rack PDU Advanced Switched 3-Phase, 11.5kW, 42 Outlets

Authorised APC Partner

APDU10250SW

Stock Status: Enquire

$3,395.89 inc. GST
$3,087.17 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC APDU10250SW is a NetShelter Rack PDU Advanced, a switched 3-phase vertical rack PDU rated 11.5 kW at 415V 20A (11 kW at 400V 16A). It delivers 42 outlets in a 0U vertical form factor, and its switched outlets can be turned on, off or recycled remotely over the network, which suits remote data centre and edge deployments.

Outlet density is achieved with 21 x C13/C15 and 21 x C13/C15/C19/C21 combination outlets, all colour-coded and labelled by breaker and input phase to simplify deployment. PDU-level metering with a local LCD gives power visibility and overload notification, while two RJ-45 network ports, a USB port and secure SNMPv3 management support remote monitoring and daisy chaining. It is compatible with most NetShelter SX enclosures and third-party racks.

Features

- Switched outlets to turn outlets on or off remotely
- PDU-level power metering via remote access, with a local display for power visibility and overload notification
- 4-in-1 combination outlets that work as C13, C15, C19 or C21 for flexible deployment
- Maximum outlet density: 42 outlets in a 2.2 inch wide form factor
- Outlets colour-coded and labelled by breaker and input phase to simplify deployment
- Compatible with most NetShelter SX enclosures and third-party racks
- Daisy chain support, surge protection and password protection

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Type: Switched, 3-phase rack PDU, 0U vertical mounting
- Power rating: 11.5 kW / 11500 VA at 415V 20A (11 kW at 400V 16A)
- Input: IEC 60309 520P6 (3P+N+PE, 20A), 50-60 Hz
- Input cable length: 1.8 m
- Outlets: 42 total, 21 x IEC 60320 C13/C15 and 21 x IEC 60320 C13/C15/C19/C21
- Display: local LCD
- Network management: 2 x RJ-45 Ethernet ports, 1 x USB port
- Monitoring: current, voltage, power, temperature, humidity
- Outlet control: turn on, turn off, recycle, lock-out
- Security: SNMP, SNMPv2, SNMPv3, MD5, DES, 128/192/256-bit AES
- Firmware upgradeable via network or USB
- Surge protection and daisy chain support
- Colour: black
- Approvals: CE, UKCA, UL 62368-1, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input supply does the APDU10250SW require?
A: It uses an IEC 60309 520P6 (3P+N+PE, 20A) input plug on a 1.8 m cable. It is rated 11.5 kW at 415V 20A, or 11 kW at 400V 16A.

Q: What outlet types does it provide?
A: There are 42 outlets in total: 21 x C13/C15 and 21 x C13/C15/C19/C21 combination outlets, so it suits both standard IT equipment and higher-power devices.

Q: Can I control outlets remotely?
A: Yes. This is a switched PDU, so individual outlets can be turned on, turned off, recycled or locked out over the network.

Q: Does it provide power monitoring?
A: Yes. It provides PDU-level power metering viewable on the local LCD and remotely, with monitoring of current, voltage, power, temperature and humidity.

Q: Will it fit my rack?
A: It is a 0U vertical PDU compatible with most NetShelter SX enclosures and third-party racks, in a 2.2 inch wide form factor.

Q: How is it managed securely?
A: It has two RJ-45 network ports and supports SNMPv3 with AES encryption and password protection. Firmware can be upgraded via the network or USB.
