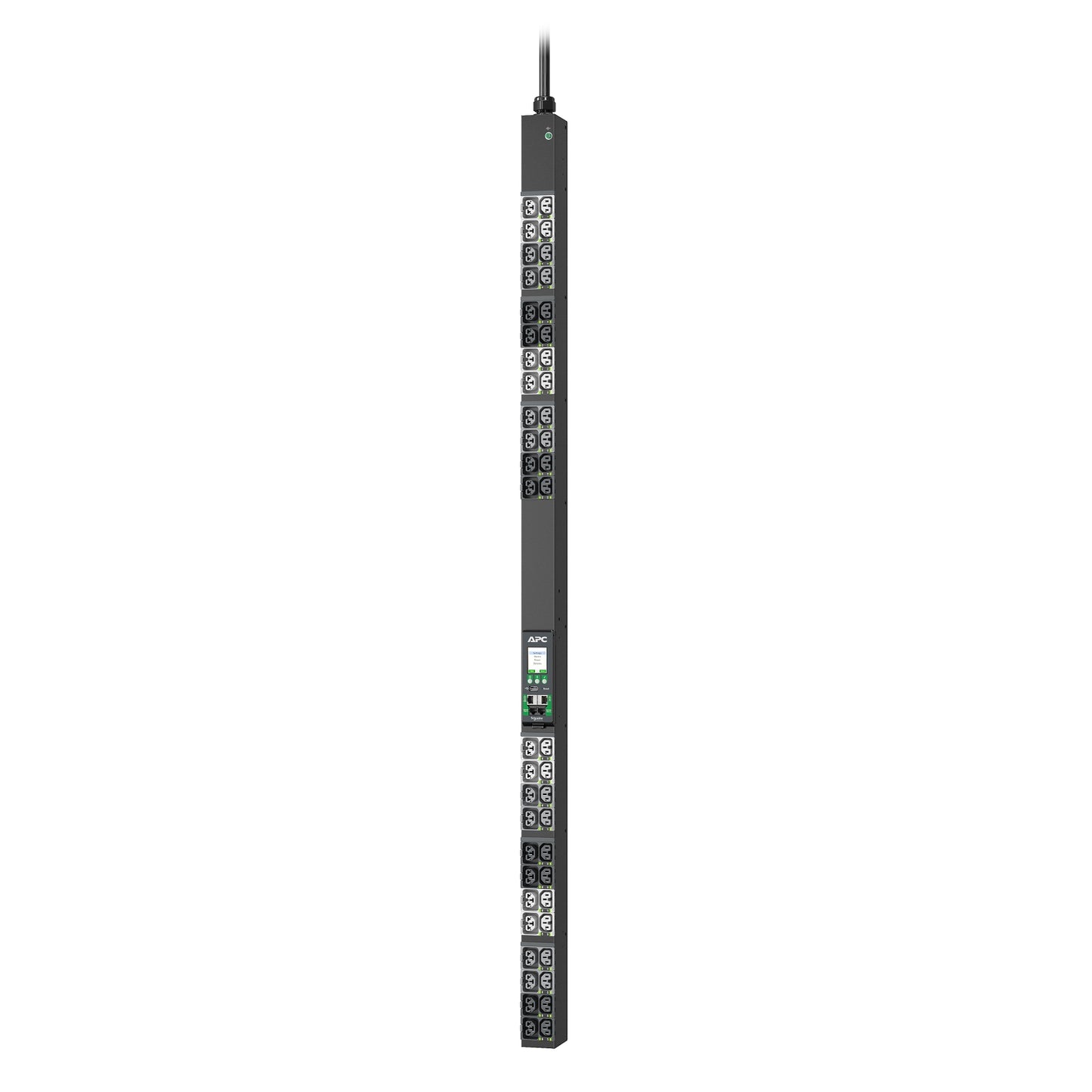

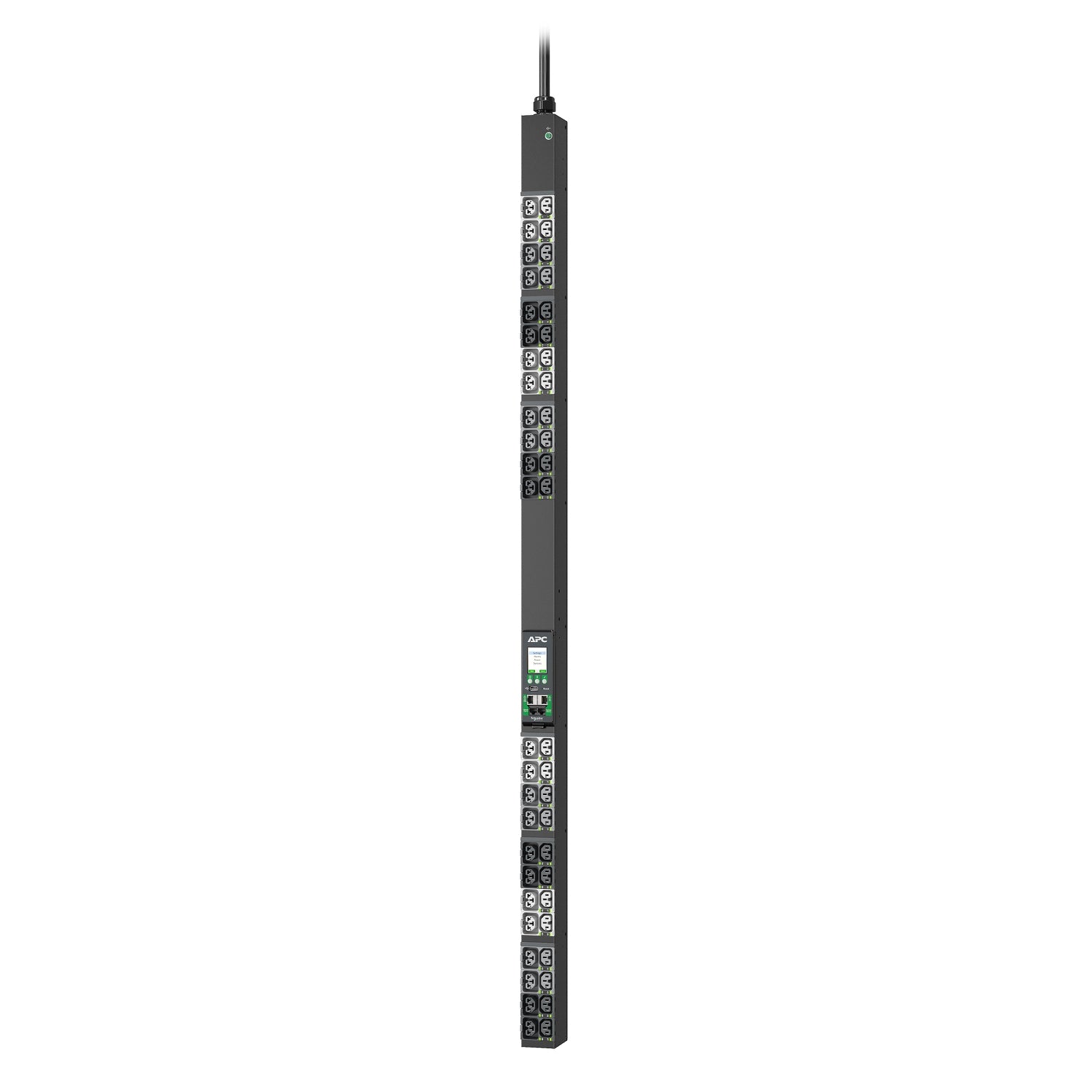

APC APDU10250SM | NetShelter Advanced Switched Metered Rack PDU, 3-Phase, 11.5kW, 48 Outlets

APC APDU10250SM | NetShelter Advanced Switched Metered Rack PDU, 3-Phase, 11.5kW, 48 Outlets

Authorised APC Partner

APDU10250SM

Stock Status: Enquire

$4,455.33 inc. GST
$4,050.30 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Rack PDU Advanced APDU10250SM is a 0U vertical, three-phase switched rack PDU with metered outlets, delivering 11kW at 400V 16A or 11.5kW at 415V 20A through an IEC309 520P6 input. With 48 high-density outlets, outlet-level and PDU-level metering and remote on, off or cycle control, it suits server and network racks that need granular power monitoring and management.

The 48 outlets combine 24 C13/C15/C19/C21 combination outlets with 24 C13/C15 outlets in a slim 56mm wide chassis. Outlets are colour-coded and labelled by breaker and input phase, and the alternating phase design groups each of the three phases into small outlet groups to simplify load balancing. Network management is built in, with an interactive LCD display, dual RJ-45 network ports and a USB port.

Features

- Switched outlets can be turned on, off or cycled remotely
- Outlet-level and PDU-level power metering with notification of potential overload
- 4-in-1 combination outlets work as C13, C15, C19 or C21
- 48 outlets in a 56mm wide 0U form factor
- Outlets are colour-coded and labelled by breaker and input phase
- Alternating phase design groups each of the 3 phases into small outlet groups
- Full-featured network management with firmware upgrade over network or USB

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 48 outlets: 24 x C13/C15/C19/C21 combination and 24 x C13/C15
- Switched with metering at outlet level and PDU level
- Load capacity 11.5kVA/11.5kW (11kW at 400V 16A, 11.5kW at 415V 20A)
- Input: 3-phase, IEC 60309 20A 3P+N+PE (520P6) plug
- Nominal input voltage 400V/415V 3PH, 50/60Hz
- Nominal output voltage 240V
- Maximum input current 20A, maximum current draw 16A
- Input cord length 1.8m
- 0U vertical rack mount, black
- Interactive LCD display, 2 x RJ-45 network ports, 1 x USB port

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input plug does the APDU10250SM use?
A: It has a 1.8m input cord fitted with an IEC 60309 20A 3P+N+PE (520P6) plug, for three-phase 400V/415V supply.

Q: How much power can this PDU deliver?
A: The load capacity is 11.5kVA/11.5kW. That is 11kW at 400V 16A or 11.5kW at 415V 20A.

Q: What is the difference between switched and metered outlets on this PDU?
A: Switched means each outlet can be turned on, off or cycled remotely over the network. Metering gives power readings at both outlet level and PDU level, with notification of potential overload.

Q: Which outlet types are provided?
A: There are 48 outlets in total: 24 combination outlets that accept C13, C15, C19 or C21 connectors, plus 24 C13/C15 outlets.

Q: How is this PDU mounted in the rack?
A: It is a 0U vertical PDU, so it mounts alongside the equipment in the rack without using any rack unit space.

Q: How do I manage this PDU remotely?
A: It has two RJ-45 network ports and a USB port, plus an interactive LCD display. Firmware can be upgraded over the network or via USB.
