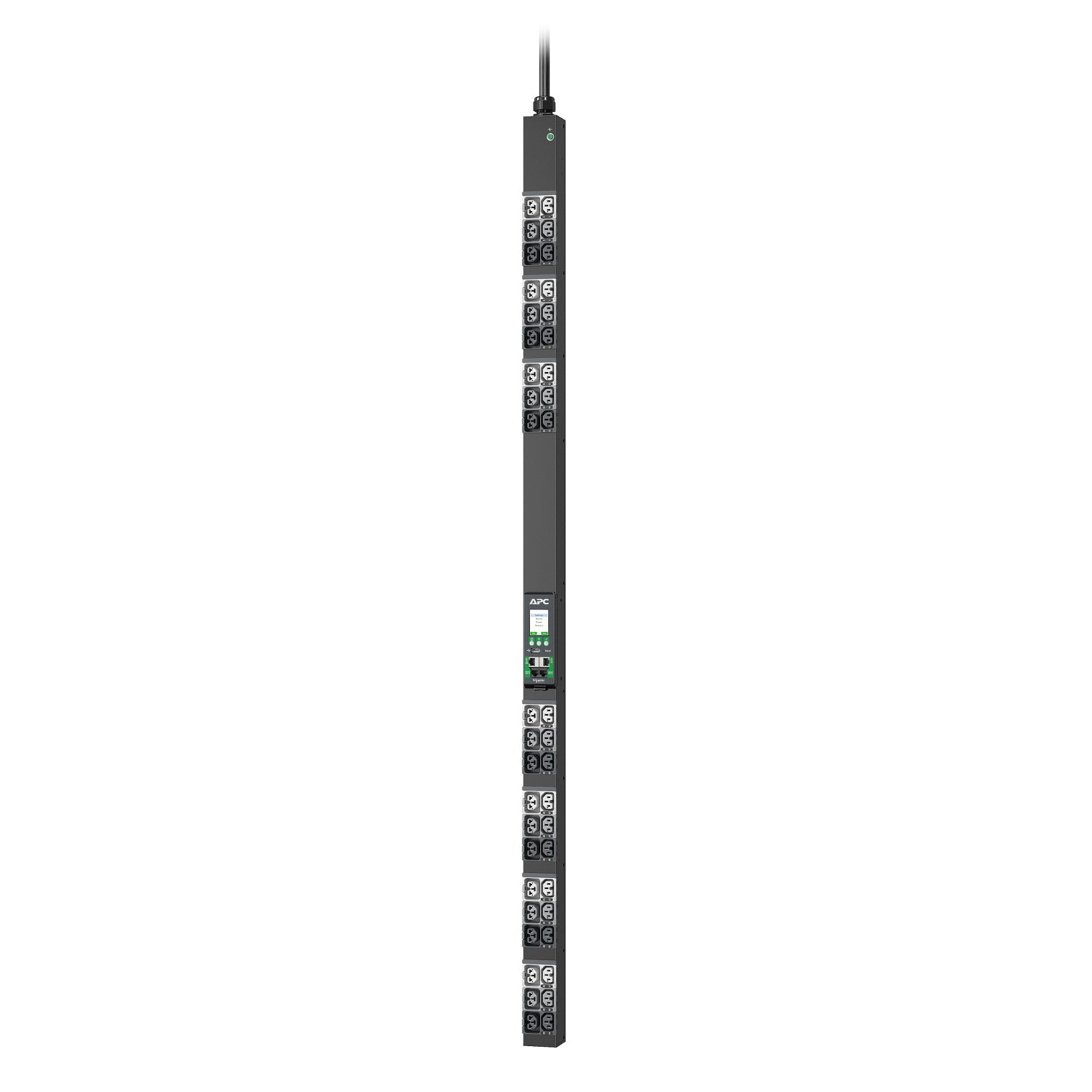

• APC APDU10250ME black metered PDU with 42 IEC309 outlets and digital display
1 1

APC

APC APDU10250ME | NetShelter Advanced Metered 3-Phase Rack PDU, 42 Outlets, 11kW

APC APDU10250ME | NetShelter Advanced Metered 3-Phase Rack PDU, 42 Outlets, 11kW

Authorised APC Partner

APDU10250ME

Stock Status: Enquire

$2,133.17 inc. GST
$1,939.25 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter Rack PDU Advanced is a metered three-phase 0U vertical rack PDU with 42 outlets, rated 11 kW at 400 V 16 A or 11.5 kW at 415 V 20 A. It suits high-density server and networking racks, with 21 C13/C15 outlets and 21 4-in-1 outlets that accept C13, C15, C19 and C21 plugs, and an IEC 60309 3P+N+PE 20 A input plug on a 1.8 m cord.

PDU-level power metering is available on the colour LCD and remotely over the network, with web and SNMP management, dual Ethernet ports and daisy chaining. Alternating phase, colour-coded outlet groups help with cable management and load balancing, and hydraulic-magnetic circuit breakers protect the circuits. It is compatible with most NetShelter SX enclosures and third-party racks, and works with EcoStruxure IT monitoring.

Features

- 4-in-1 outlets work as C13, C15, C19 or C21 outlets
- Alternating phase, colour-coded outlet groups for cable management and load balancing
- Hydraulic-magnetic circuit breakers
- Ultra-low profile 0U design
- Locking IEC outlets when used with locking power cords
- Colour LCD local display
- Web and SNMP network management over Gigabit Ethernet
- Local USB port for firmware updates
- Dual network ports
- Compatible with EcoStruxure IT monitoring
- Compatible with most NetShelter SX enclosures and third-party racks

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Metered, three-phase
- Form factor: 0U vertical rackmount
- Colour: Black
- Nominal input voltage: 400 V / 415 V, 3 phases
- Input circuit: 16 A (IEC) / 20 A (UL), 3P
- Nominal power: 11.0 kW (IEC) / 11.5 kW (UL)
- Input plug: IEC 60309 20 A 3P+N+PE
- Cord length: 1.8 m
- Outlets: 42 total, 21 x C13/C15 and 21 x 4-in-1 (C13/C15/C19/C21)
- Display: Colour LCD
- Network: 2 x Ethernet (RJ-45) ports, 1 x USB port
- Daisy chain: Yes
- Firmware upgrade: Network or USB
- Security: 128/192/256-bit AES, DES, MD5, SNMPv1/v2/v3
- Monitoring: Current, humidity, power, temperature, voltage
- Outlet control: Lock-out, recycle, turn on
- IP rating: IP44
- Operating temperature: -5 to 60 C
- Operating relative humidity: 5 to 95 %
- Weight: 7.7 kg
- Shipping dimensions: 20.8 x 11.6 x 172 cm
- Certifications: CE, UKCA, UL 62368-1, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 Subpart B, TAA compliance

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input power does the APDU10250ME require?
A: It is a three-phase unit rated 11 kW at 400 V 16 A or 11.5 kW at 415 V 20 A, with an IEC 60309 3P+N+PE 20 A input plug on a 1.8 m cord.

Q: Which plug types do the outlets accept?
A: It has 42 outlets: 21 x C13/C15 and 21 4-in-1 outlets that accept C13, C15, C19 and C21 plugs.

Q: Can I monitor power remotely?
A: Yes. It provides PDU-level metering on the colour LCD and over the network via web and SNMP, with two Ethernet ports and daisy chain support. It is compatible with EcoStruxure IT monitoring.

Q: Does this PDU switch individual outlets?
A: This is a metered PDU. It reports current, power, voltage, temperature and humidity, and supports outlet lock-out, recycle and turn-on control.

Q: Will it fit my rack?
A: It is a 0U vertical PDU compatible with most NetShelter SX enclosures and third-party racks.

Q: How is firmware updated?
A: Firmware can be upgraded over the network or locally via the USB port.
