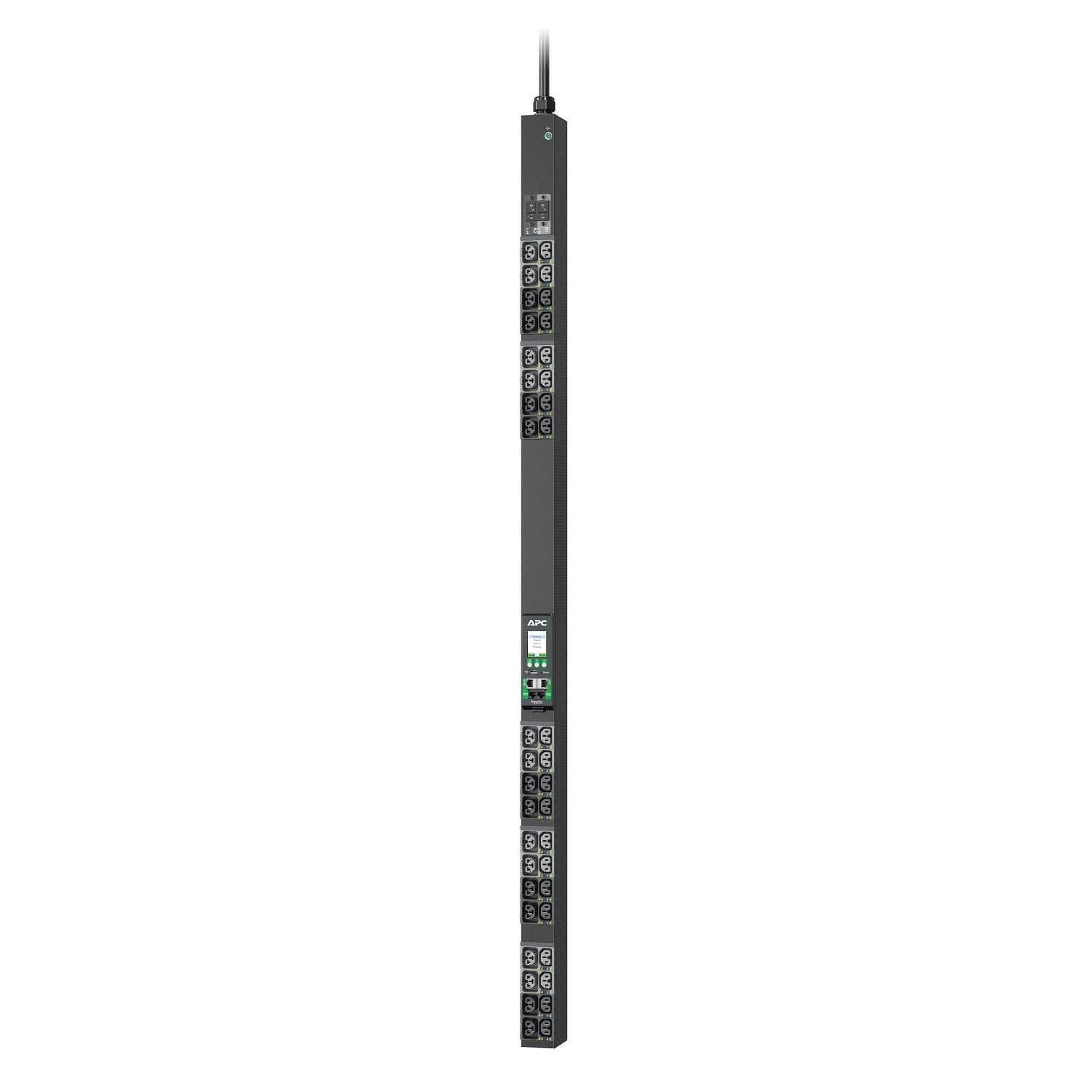

APC APDU10150SW | NetShelter Switched Rack PDU, 7.4kW, 230V 32A, 40 Outlet

APC APDU10150SW | NetShelter Switched Rack PDU, 7.4kW, 230V 32A, 40 Outlet

Authorised APC Partner

APDU10150SW

Stock Status: Enquire

$2,946.69 inc. GST
$2,678.81 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter Rack PDU Advanced is a 0U vertical switched rack PDU with 40 outlets and network management, delivering up to 7.4kW from a single-phase 230V, 32A input via an IEC 60309 2P+E (332P6) plug. Switched outlet control and active power measurements (volts, amps, kW, kWh) suit high-density racks where remote power cycling and energy monitoring are required.

The 40 outlets comprise 20 x C13/C15/C19/C21 and 20 x C13/C15, with 4-in-1 combination outlets for flexible deployment. Outlets are colour coded by breaker, an interactive LCD display shows local readings, and two Ethernet ports allow Power Sharing so the network management card stays online during AC power loss. The 3.0m input cord and black finish suit standard rack installations.

Features

- 4-in-1 combination outlets usable as C13, C15, C19 or C21 for flexible deployment
- Maximum outlet density: 40 outlets in a 2.2 inch wide form factor
- Outlets colour coded by breaker to simplify deployment
- Full-featured network management capability
- Power Sharing: PDUs cascaded via 2 Ethernet ports keep the network management card running during AC power loss
- Network communication, sensor operation and alarm traps continue uninterrupted during power loss

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Type: Switched rack PDU, 0U vertical mount
- Outlets: 40 total, 20 x C13/C15/C19/C21 and 20 x C13/C15
- Input: 1-phase 230V, 32A, IEC 60309 2P+E (332P6) plug
- Maximum power: 7.4kW / 7400VA
- Permissible input voltage: 200-240V, 50/60Hz
- Input cord length: 3.0m
- Network ports: 10/100BASE-T and 1000BASE-T
- Display: Interactive LCD
- Metering: Active power measurements (volts, amps, kW, kWh)
- Dimensions (H x W x D): 149.0 x 5.6 x 7.5 cm
- Weight: 7.4kg
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input supply does the APDU10150SW require?
A: It requires a single-phase 230V, 32A supply and connects through an IEC 60309 2P+E (332P6) plug on the 3.0m input cord.

Q: How many outlets does it provide and what types?
A: It provides 40 outlets: 20 x C13/C15/C19/C21 combination outlets and 20 x C13/C15 outlets.

Q: Can I switch individual outlets remotely?
A: Yes. This is a switched rack PDU with full network management capability, allowing outlet control and monitoring over the network.

Q: What is the maximum power capacity?
A: The maximum power is 7.4kW (7400VA) within an input voltage range of 200-240V, 50/60Hz.

Q: How is it mounted in the rack?
A: It is a 0U vertical rack PDU, so it mounts alongside equipment without using rack unit space.

Q: What happens to network management during a power loss?
A: With Power Sharing, PDUs cascaded via the two Ethernet ports keep the network management card running during AC power loss, so network communication, sensor operation and alarm traps continue.
