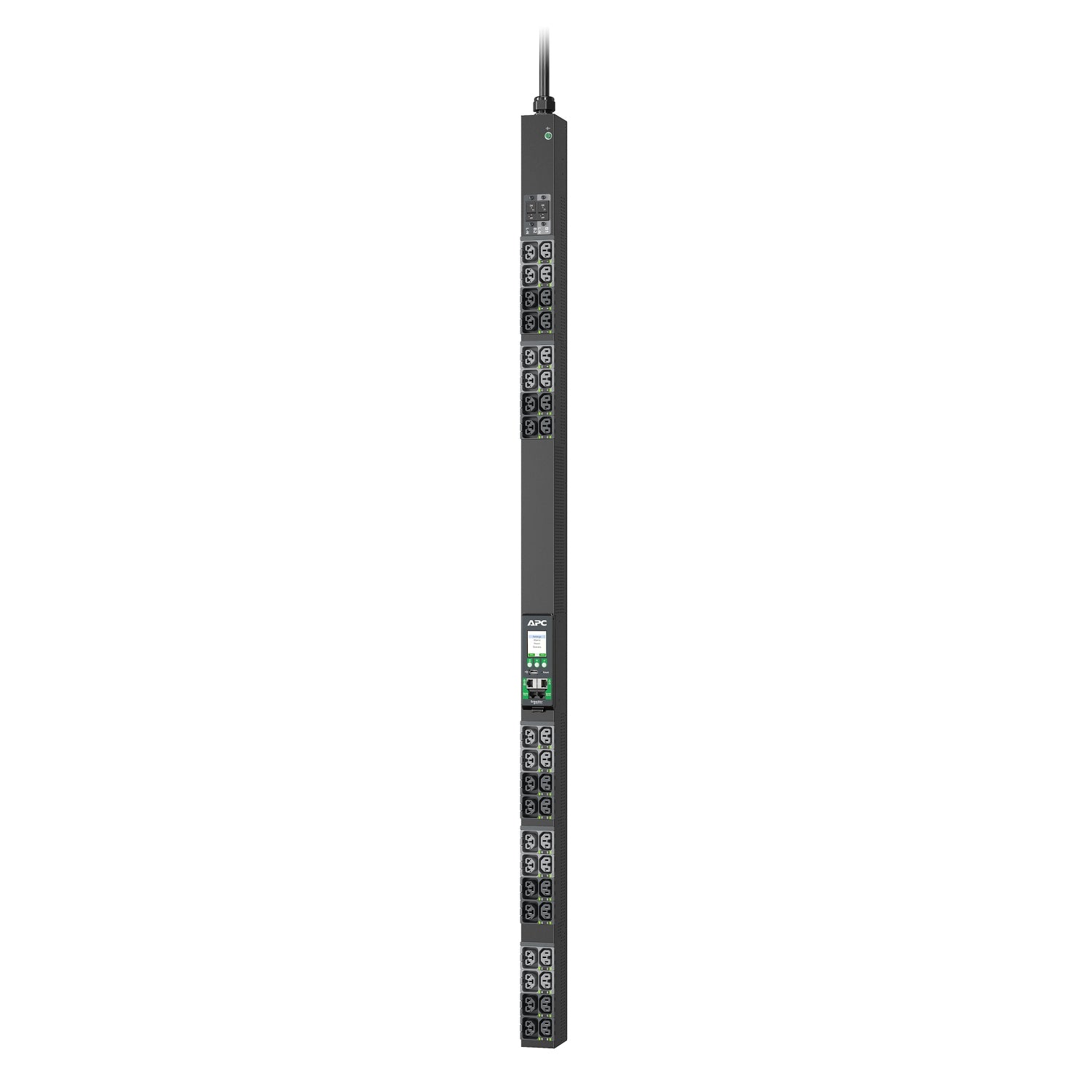

• APC APDU10150SM black surge protector with 40 outlets and digital display
1 1

APC

APC APDU10150SM | NetShelter Advanced Switched Rack PDU, 7.4kW, 40 Outlets

APC APDU10150SM | NetShelter Advanced Switched Rack PDU, 7.4kW, 40 Outlets

Authorised APC Partner

APDU10150SM

Stock Status: Enquire

$3,893.67 inc. GST
$3,539.70 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC APDU10150SM is a NetShelter Rack PDU Advanced (10K series), a 0U vertical switched rack PDU with metering at outlet level, rated for 7.4kW from a single-phase 230V 32A input. It delivers 40 outlets for dense server and network racks and supports remote on/off control of individual outlets, helping IT teams reboot equipment and manage power without a site visit.

The PDU connects via an IEC 60309 32A 2P+E (332P6) input and offers a mix of 20 C13/C15/C19/C21 combo outlets and 20 C13/C15 outlets. Per-outlet and PDU-level power measurement, an interactive LCD and full network management through web, SNMP and CLI give clear visibility of load and help prevent overloads.

Features

- Remote on/off switching of individual outlets
- Outlet-level and PDU-level power metering for visibility and overload notification
- High outlet density with 40 outlets in a narrow 0U form factor
- Outlets colour-coded and labelled by breaker to simplify deployment
- Network management via web, SNMP and CLI
- Interactive LCD for local monitoring
- Maintains network communication, sensor operation and alarm traps

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Maximum power: 7.4kW (7360W)
- Phase and voltage: single-phase, 230V
- Current rating: 32A
- Input connection: IEC 60309 32A 2P+E (332P6)
- Outlets: 40 total
- Outlet types: 20 x C13/C15/C19/C21 combo and 20 x C13/C15
- Switched with metering at outlet level
- Active power measurements: volts, amps, kW, kWh
- Interactive LCD display
- Network management capable
- Mounting: 0U vertical rack mount
- EAN: 0731304439677

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: Is the APDU10150SM a switched or metered PDU?
A: It is both. It is a switched PDU with metering at outlet level, so you can turn individual outlets on and off remotely and measure power per outlet.

Q: What input connection does this PDU use?
A: It uses an IEC 60309 32A 2P+E (332P6) input, supplied from a single-phase 230V 32A circuit.

Q: What outlet types are provided?
A: There are 40 outlets in total: 20 C13/C15/C19/C21 combo outlets and 20 C13/C15 outlets.

Q: How is the PDU managed remotely?
A: It has full network management capability, with web, SNMP and CLI access, plus an interactive LCD for local monitoring.

Q: How is it mounted in the rack?
A: It is a 0U vertical PDU, designed to mount alongside the equipment in a rack without using up rack unit space.

Q: What power measurements does it report?
A: It reports active power measurements including volts, amps, kW and kWh, at both outlet and PDU level.
