APC APDU10150ME | NetShelter Advanced Metered Rack PDU, 7.4kW, 32A, 40 Outlets

APC APDU10150ME | NetShelter Advanced Metered Rack PDU, 7.4kW, 32A, 40 Outlets

Authorised APC Partner

APDU10150ME

Stock Status: Enquire

$1,631.34 inc. GST
$1,483.04 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

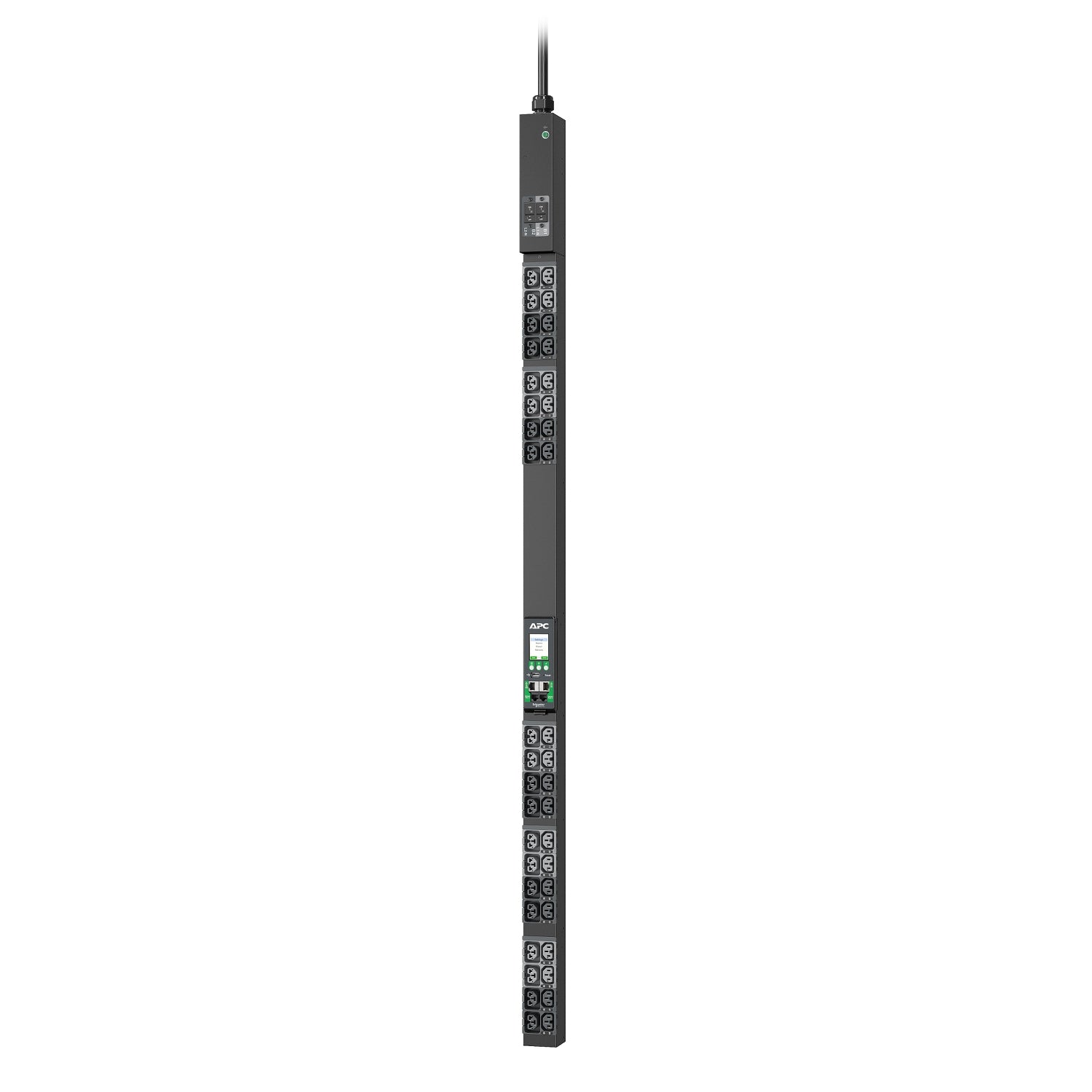

The APC NetShelter Rack PDU Advanced APDU10150ME is a 0U vertical metered rack PDU delivering 7.4kW from a single-phase 230V 32A feed through an IEC 309 332P6 input. It provides 40 outlets, made up of 20 C13/C15 outlets and 20 4-in-1 outlets that accept C13, C15, C19 and C21 plugs, giving high-density power distribution for server and network racks.

PDU-level metering is available through the colour LCD local display and remotely over Web and SNMP via Gigabit Ethernet, with overload notification and EcoStruxure IT compatibility for monitoring sensors and alarms. The ultra-low profile design, hydraulic-magnetic circuit breakers and alternating phase, colour-coded outlets support clean, reliable rack power deployment.

Features

- Ultra-low profile, space-saving design
- Hydraulic-magnetic circuit breakers
- High retention outlets when used with standard cords
- Locking IEC outlets when used with locking power cords
- High-density outlets for large server racks
- Alternating phase and colour-coded outlets
- PDU-level power metering with overload notification
- EcoStruxure IT compatibility with monitoring sensors and alarms

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Metered rack PDU, vertical 0U mounting
- Nominal voltage 230V, single phase
- Input circuit 32A, 1P
- Nominal power 7.4kW
- Input plug: IEC 309 32A (332P6)
- Outputs: 20 x C13/C15 and 20 x 4-in-1 outlets (40 total)
- 4-in-1 outlets accept C13, C15, C19 and C21 plugs
- Power cord length 3.0m
- Network management via Web and SNMP, Gigabit Ethernet
- Colour LCD local display
- Local USB port for firmware updates

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input plug does the APDU10150ME use?
A: It uses an IEC 309 32A (332P6) input plug on a 3.0m power cord, for a single-phase 230V 32A feed.

Q: How many outlets does this PDU provide and what types?
A: It provides 40 outlets in total: 20 C13/C15 outlets and 20 4-in-1 outlets that accept C13, C15, C19 and C21 plugs.

Q: Is this PDU metered or switched?
A: It is a metered PDU. It provides PDU-level power metering with overload notification but does not switch individual outlets.

Q: How can I monitor power on this PDU?
A: Power data is shown on the colour LCD local display and is also accessible remotely over Web and SNMP via Gigabit Ethernet. It is compatible with EcoStruxure IT.

Q: How is the PDU mounted in the rack?
A: It is a 0U vertical PDU with an ultra-low profile design, so it mounts alongside the rack without using any rack unit space.

Q: What is the total power capacity?
A: The nominal power rating is 7.4kW from a 230V single-phase 32A circuit.
