APC AP9559 | NetShelter Basic Rack PDU, 1U, 16A, 208/230V, 10 C13, 2 C19

APC AP9559 | NetShelter Basic Rack PDU, 1U, 16A, 208/230V, 10 C13, 2 C19

Authorised APC Partner

AP9559

In stock:13

$672.98 inc. GST
$611.80 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

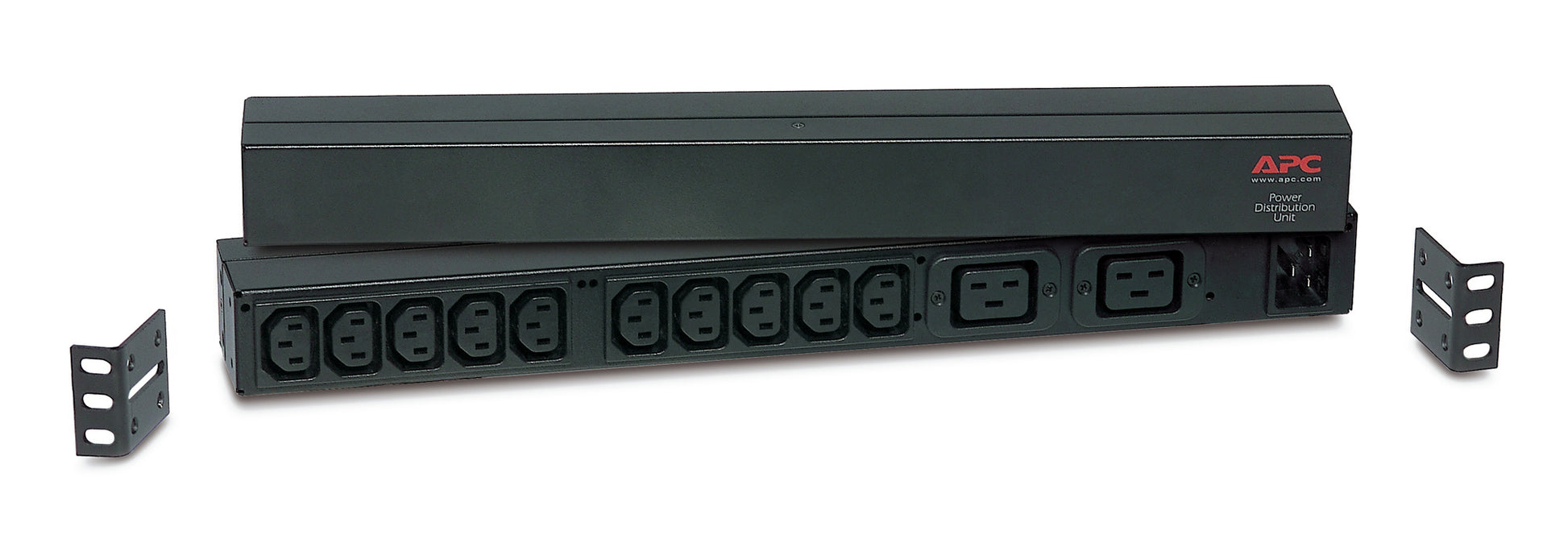

The APC AP9559 NetShelter Basic Rack PDU is a 1U horizontal-mount rack PDU that delivers 16A at 208/230V through 10 IEC C13 and 2 IEC C19 outlets, with a maximum load capacity of 3.68 kW. It suits server racks and network cabinets that need low-cost, reliable power distribution to a mix of standard C13 equipment and higher-draw C19 devices.

The unit connects through an IEC 60320 C20 inlet with a 2.5 m power cord and installs with the included toolless mounting kit, so it fits a wide range of rack configurations without extra hardware. As a basic, non-metered PDU it is a straightforward choice for expanding outlet capacity within a rack.

Features

- 10 C13 and 2 C19 outlets for mixed equipment power distribution
- Horizontal 1U mounting suits a variety of rack configurations
- Supports up to 16A at 208 and 230V
- Toolless mounting kit for quick installation
- Includes rack mounting brackets and user manual

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 1U horizontal rack mount with toolless mounting kit
- Outlets: 12 total, 10 x IEC 60320 C13 and 2 x IEC 60320 C19
- Input: 208/230V, 16A, IEC 60320 C20 inlet
- Maximum load capacity: 3680 W (3.68 kVA)
- Input voltage range: 90-250 V AC
- Power cord length: 2.5 m (8.2 ft)
- Dimensions: approx. 17.6 in W x 1.7 in H x 2.2 in D
- Weight: approx. 2.16 lb
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlet types does the APC AP9559 provide?
A: It provides 12 outlets in total: 10 x IEC 60320 C13 and 2 x IEC 60320 C19.

Q: What input does the AP9559 require?
A: It connects to a 208/230V, 16A supply through an IEC 60320 C20 inlet and supports a maximum load of 3680 W.

Q: Is the AP9559 a metered or switched PDU?
A: No. It is a basic rack PDU for power distribution, designed for simple and cost-effective outlet expansion within a rack.

Q: How is the AP9559 mounted in a rack?
A: It is a 1U horizontal-mount unit and ships with a toolless mounting kit and rack mounting brackets.

Q: How long is the power cord?
A: The attached power cord is 2.5 m (8.2 ft) long.

Q: Can I connect high-draw devices to this PDU?
A: Yes. The 2 C19 outlets suit higher-draw equipment, while the 10 C13 outlets cover standard servers and network devices, all within the 3680 W total load limit.
