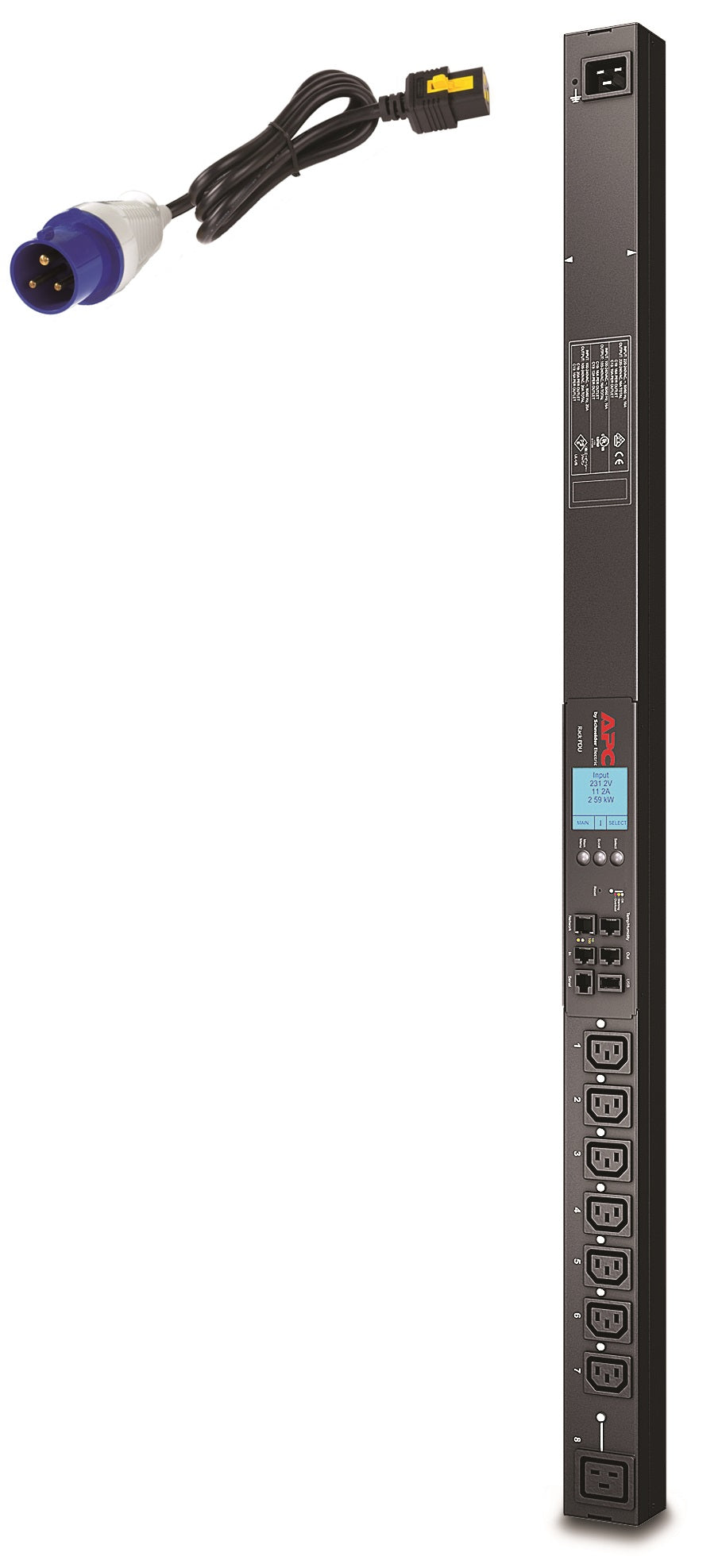

• APC AP8958EU3 NetShelter Switched Rack PDU black vertical with outlets display IEC cord
1 1

APC

APC AP8958EU3 | Rack PDU 2G Switched 0U, 16A 230V, 7x C13, 1x C19, IEC309

APC AP8958EU3 | Rack PDU 2G Switched 0U, 16A 230V, 7x C13, 1x C19, IEC309

Authorised APC Partner

AP8958EU3

Stock Status: Enquire

$2,122.54 inc. GST
$1,929.58 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP8958EU3 is a NetShelter Rack PDU 2G switched 0U vertical rack power distribution unit rated for 16A at 230V. It provides seven IEC C13 outlets and one C19 outlet, with individual outlet control so you can remotely switch on, switch off or reboot connected equipment over the network. The IEC 309 input cord suits dedicated 16A server rack and data centre circuits.

The Zero U vertical form factor keeps rack space free for active equipment, and the unit supports a 3700 VA load. It is supplied with a locking input power cord, rack mounting brackets, an installation guide and a safety guide, with serial configuration available for network management setup.

Features

- Switched outlet control for remote power on, off and reboot of individual outlets
- Network management with serial configuration
- Zero U vertical mounting saves valuable rack space
- Seven C13 and one C19 outlet for mixed server and network equipment
- Supplied with locking input power cord, rack mounting brackets, installation guide and safety guide

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: Zero U (0U) vertical rack mount, switched
- Outlets: (7) IEC 320 C13 and (1) IEC 320 C19
- Input connection: IEC 309 16A 2P+E
- Input cord length: 3 metres, 1 power cord
- Nominal input voltage: 230V (acceptable range 220-240 VAC)
- Output voltage: 200V / 208V / 230V
- Input frequency: 50/60 Hz
- Maximum input current: 16 A per phase
- Load capacity: 3700 VA
- Dimensions (H x W x D): 988 x 56 x 46 mm
- Net weight: 3.23 kg
- Colour: Black
- Operating temperature: -5 to 45 °C, humidity 5-95%
- Storage temperature: -25 to 65 °C
- Approvals: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, PSE, UL Listed, VCCI Class A, VDE, cUL Listed

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlets does the APC AP8958EU3 provide?
A: It provides seven IEC 320 C13 outlets and one IEC 320 C19 outlet, suited to a mix of servers, switches and higher-draw equipment.

Q: What input connection and power rating does it use?
A: It uses an IEC 309 16A 2P+E input on a 3 metre cord, at a nominal 230V, with a load capacity of 3700 VA.

Q: Can I switch individual outlets remotely?
A: Yes. This is a switched PDU, so each outlet can be turned on, turned off or rebooted remotely over the network.

Q: Does it take up rack unit space?
A: No. It is a Zero U vertical-mount unit, so it fits alongside the equipment rather than consuming rack units.

Q: What is supplied in the box?
A: The PDU ships with a locking input power cord, rack mounting brackets, an installation guide and a safety guide.

Q: How does it differ from a metered or basic PDU?
A: A switched PDU adds per-outlet remote control and network management, whereas basic PDUs only distribute power.
