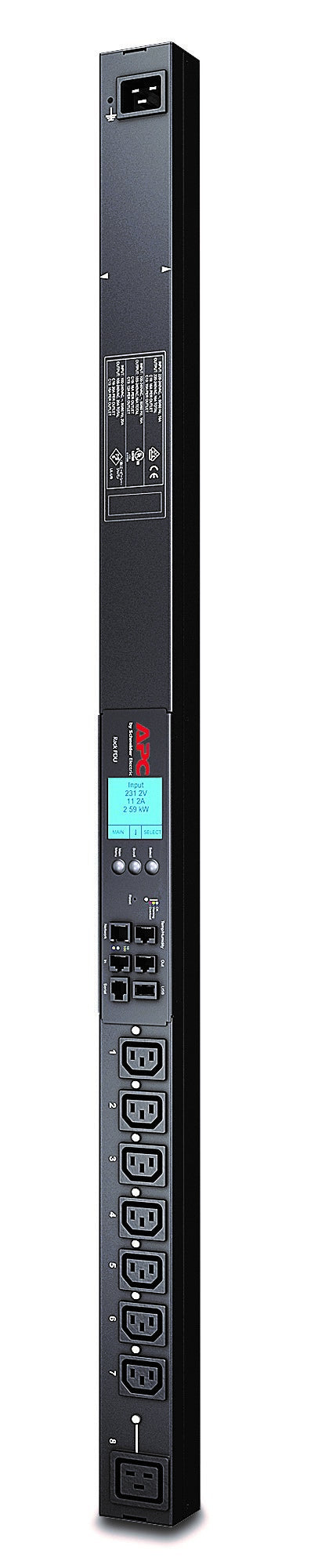

• APC AP8958 NetShelter Switched Rack PDU black tower with outlets and display
1 1

APC

APC AP8958 | NetShelter Switched Rack PDU, 0U, 20A/208V, 16A/230V, 7x C13, 1x C19

APC AP8958 | NetShelter Switched Rack PDU, 0U, 20A/208V, 16A/230V, 7x C13, 1x C19

Authorised APC Partner

AP8958

In stock:26

$2,083.71 inc. GST
$1,894.28 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP8958 NetShelter Switched Rack PDU is a 0U vertical rack PDU that delivers remote outlet-level on, off and reboot control for connected IT equipment. It provides 7 x C13 and 1 x C19 outlets and runs from a 200-240V supply, rated at 20A on 208V and 16A on 230V, with an IEC C20 inlet and no fitted plug.

Built-in current monitoring lets you track connected load remotely through EcoStruxure IT and other platforms, and management is available over web, SNMP, Telnet and CLI. The side-mounting 0U design preserves usable rack space, while locking IEC receptacles and low-profile breakers help prevent accidental disconnections.

Features

- Remote outlet-level on, off and reboot control
- Restricts unauthorised use of individual outlets
- Real-time remote monitoring of connected load through EcoStruxure IT and other platforms
- Locking IEC receptacles and low-profile breakers help prevent accidental disconnections
- 0U design maximises usable rack space for IT equipment
- Power sequencing delays and user-defined alarms warn of circuit overloads
- Temperature and humidity sensor port
- 1-year Secure Network Management Card subscription included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Switched (remote outlet on/off control)
- Form factor: 0U (ZeroU), vertical mount, side mounting location
- Outlets: 7 x IEC 60320 C13 and 1 x IEC 60320 C19 (8 total)
- Input connection: IEC 60320 C20
- Nominal input voltage: 200 / 208 / 230 V, 50/60 Hz
- Line rated current: 16 A, input current limit 20 A
- Load capacity: 3300 VA
- Output voltage: 100 / 200 / 208 / 230 V
- Management: Web, SNMP, Telnet, CLI
- Dimensions: 98.8 cm H x 5.6 cm W x 4.6 cm D
- Net weight: 3.23 kg
- Colour: Black
- Includes installation guide, rack mounting brackets, safety guide and serial configuration cable

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlets does the APC AP8958 provide?
A: It provides 7 x IEC 60320 C13 outlets and 1 x IEC 60320 C19 outlet, for 8 outlets in total.

Q: Does the AP8958 come with a plug fitted?
A: No. The input connection is an IEC 60320 C20 inlet with no fitted plug, so you will need a suitable C19 power cord for your supply.

Q: What input voltage and current does it support?
A: It is designed for a 200, 208 or 230V supply at 50/60 Hz, rated at 20A on 208V and 16A on 230V, with a load capacity of 3300VA.

Q: Can I switch individual outlets on and off remotely?
A: Yes. This is a switched PDU, so outlets can be turned on, off or rebooted remotely, and use of individual outlets can be restricted.

Q: How is the AP8958 managed?
A: It can be managed over the network via web interface, SNMP, Telnet and CLI, and supports monitoring through EcoStruxure IT.

Q: How does it mount in the rack?
A: It is a 0U vertical PDU that mounts at the side of the rack, and rack mounting brackets are included.
