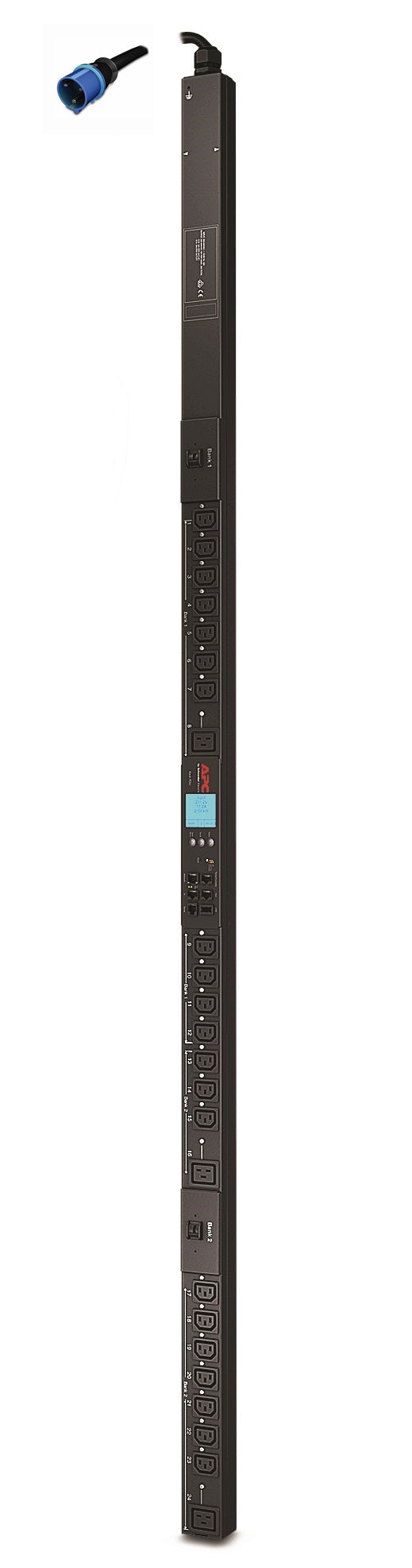

• APC AP8953 black metal rack PDU with outlets and blue LED display
1 1

APC

APC AP8953 | NetShelter Rack PDU 2G Switched, ZeroU, 32A, 230V, 21 C13 + 3 C19

APC AP8953 | NetShelter Rack PDU 2G Switched, ZeroU, 32A, 230V, 21 C13 + 3 C19

Authorised APC Partner

AP8953

Stock Status: Enquire

$2,568.52 inc. GST
$2,335.02 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP8953 is a single-phase, vertical Zero-U switched rack PDU from the NetShelter Rack PDU 2G range, delivering outlet-level remote on/off control, power sequencing and current metering on a 32A, 230V input. It provides 21 IEC C13 and 3 IEC C19 outlets, making it suited to dense server, storage and network racks that need remote power cycling and load visibility.

Outlet-level switching lets administrators reboot individual devices, restrict unauthorised use of outlets and stagger start-up to avoid in-rush overload. Management is available over Web, SNMP, Telnet and CLI, and the unit integrates with APC centralised management platforms. A local digital display shows aggregate current draw, and the locking IEC receptacles and low-profile circuit breakers suit tight vertical rack mounting.

Features

- Remote outlet-level control for power cycling and restricting unauthorised use of individual outlets
- Power sequencing delays to avoid in-rush and overload at start-up
- Real-time remote current metering with user-defined alarms before circuit overload
- Load-shedding prioritisation to extend uptime of critical equipment
- Secure Web, SNMP, CLI and Telnet access, plus APC centralised management platforms
- Local digital display of aggregate current draw

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: Zero U (0U), vertical mounting
- Input: 230V, 32A, single-phase, 220-240VAC, 47-63 Hz
- Input plug: IEC 309 32A 2P+E, 1 power cord, approx. 3.05 m
- Outlets: 21 x IEC C13 and 3 x IEC C19 (24 total)
- Switched: remote outlet-level on/off control
- Local digital current display
- Management via Web, SNMP, Telnet and CLI
- Temperature and humidity sensor port
- Locking IEC receptacles and low-profile circuit breakers

FAQs

Q: How many outlets does the APC AP8953 provide and what types?
A: It provides 24 outlets in total: 21 IEC C13 outlets and 3 IEC C19 outlets.

Q: What input does the AP8953 require?
A: It requires a single-phase 230V, 32A supply (220-240VAC, 47-63 Hz) and connects via an IEC 309 32A 2P+E plug on an approximately 3.05 m power cord.

Q: What does switched mean on this PDU?
A: Each outlet can be turned on, off or cycled remotely, allowing you to reboot individual devices and restrict unauthorised use of outlets without visiting the rack.

Q: How can the AP8953 be managed remotely?
A: It supports secure Web, SNMP, Telnet and CLI access, and works with APC centralised management platforms.

Q: Can it monitor environmental conditions in the rack?
A: Yes, it includes a port for a temperature and humidity sensor.

Q: How is the AP8953 mounted in the rack?
A: It is a Zero-U vertical PDU, so it mounts along the side of the rack without using any rack unit space.
