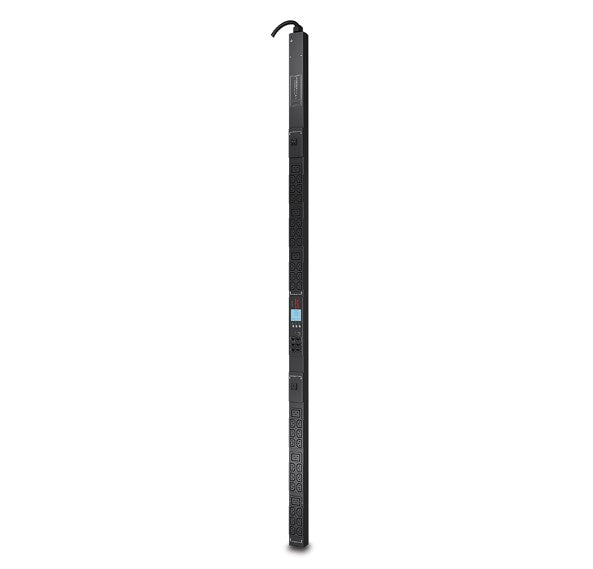

• APC AP8853X678 0U metered rack PDU black metal unit with outlets and display
1 1

APC

APC AP8853X678 | NetShelter 0U Metered Rack PDU, 32A, 36 C13 & 6 C19, Clipsal

APC AP8853X678 | NetShelter 0U Metered Rack PDU, 32A, 36 C13 & 6 C19, Clipsal

Authorised APC Partner

AP8853X678

In stock:12

$1,807.68 inc. GST
$1,643.35 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter 0U metered rack PDU delivers 230V single-phase power at up to 32A through 36 IEC C13 and 6 IEC C19 outlets, making it a high-density power distribution solution for fully populated server and network racks. This variant ships with a Clipsal 56 series AS/NZ input plug (32A 56P332) on a 3 m cord, so it connects directly to Australian and New Zealand supply without an adapter.

Built-in metering measures volts, amps, real power (kW) and energy (kWh) with a local digital display, helping installers plan capacity and avoid overloaded circuits. The vertical zero-U design mounts in the rack's side space to preserve usable rack units, and the unit suits colocation, large and remote data centre deployments.

Features

- Active metering of volts, amps, real power (kW) and energy (kWh)
- Local digital display helps installers avoid overloaded circuits
- Flash-upgradeable firmware via network download on networked units
- Can be monitored and managed through EcoStruxure IT and other platforms
- High outlet density suited to colocation, large and remote data centres
- Supports energy efficiency and emissions tracking
- Zero-U vertical mounting preserves rack space

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 0U (ZeroU) vertical rack PDU, metered
- Outlets: 36 x IEC 320 C13 and 6 x IEC 320 C19
- Nominal output voltage: 230V, maximum total current draw 32A
- Input plug: Clipsal 32A 56P332, 1 power cord, 3 m cord length
- Nominal input voltage: 200V / 208V / 230V (220-240 VAC acceptable), 50/60 Hz
- Maximum input current and line current: 32A
- Overload protection: Yes
- Metering accuracy: +/- 3% (amps, volts, kW, kWh)
- Dimensions (H x W x D): 1791 mm x 56 mm x 44 mm
- Net weight: 6.93 kg
- Operating temperature: -5 to 45 °C, storage -25 to 65 °C
- Operating humidity: 5-95%, operating elevation 0-3000 m

FAQs

Q: What input plug does the AP8853X678 use?
A: It has a Clipsal 56 series AS/NZ 32A plug (56P332) on a 3 m input cord, designed for Australian and New Zealand 32A supply outlets.

Q: How many and what type of outlets does it provide?
A: It provides 36 IEC C13 outlets and 6 IEC C19 outlets, covering standard servers and network gear as well as higher-draw equipment.

Q: What is the maximum load this PDU can supply?
A: It is rated for 230V with a maximum total current draw of 32A, with overload protection built in.

Q: Does this PDU measure power usage?
A: Yes. It is a metered PDU that measures amps, volts, kW and kWh with +/- 3% accuracy and shows readings on a local digital display.

Q: Does it take up any rack units?
A: No. It is a 0U vertical PDU that mounts in the side space of the rack, leaving all rack units free for equipment.

Q: Can it be monitored remotely?
A: Networked units can be monitored and managed through EcoStruxure IT and other platforms, and support firmware upgrades via network download.
