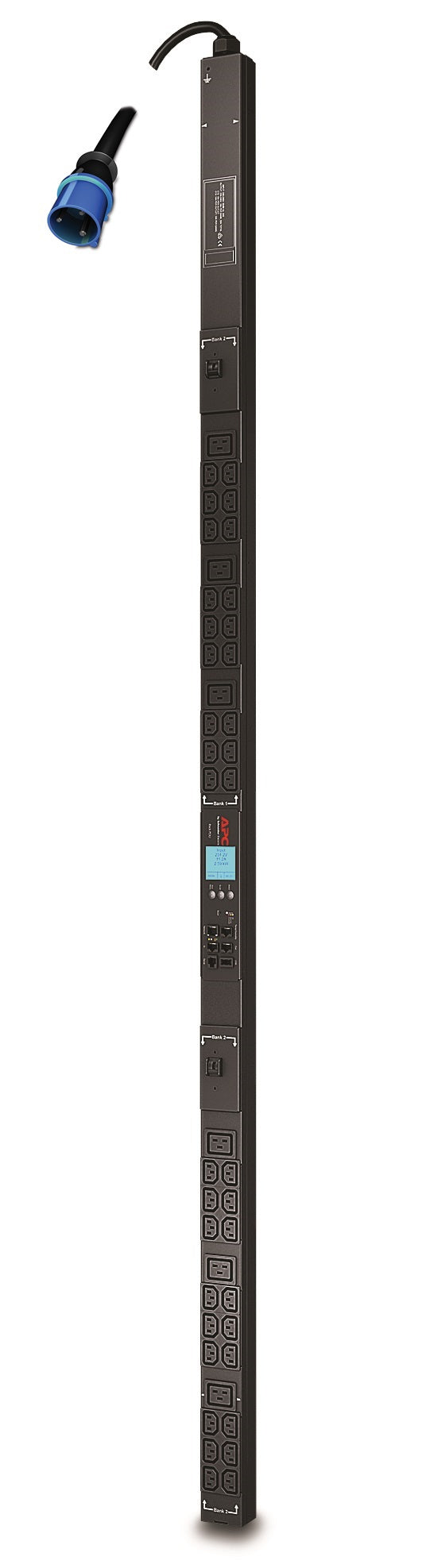

• APC AP8853 NetShelter Metered Rack PDU with black housing, blue plug, 36 C13 and 6 C19 outlets
1 1

APC

APC AP8853 | NetShelter Metered Rack PDU, 0U, 7.4kW 230V 32A, 36 C13 + 6 C19

APC AP8853 | NetShelter Metered Rack PDU, 0U, 7.4kW 230V 32A, 36 C13 + 6 C19

Authorised APC Partner

AP8853

In stock:6

$1,378.85 inc. GST
$1,253.50 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter Metered Rack PDU is a vertical 0U single-phase rack PDU rated 230V/32A (7.4kW), supplying 36 IEC C13 and 6 IEC C19 outlets from one IEC 309 2P+E input. It suits high-density server and network racks that need a large number of outlets without using any rack space, with active metering of volts, amps, kW and kWh built in.

A local digital display shows current draw so installers can balance loads and avoid overloaded circuits, while user-defined alarm thresholds provide real-time local and remote alerts. Web, SNMP and Telnet management allow the PDU to be monitored remotely, and a port for a temperature and humidity sensor supports environmental monitoring. Locking IEC receptacles and low-profile circuit breakers help keep connections secure.

Features

- Active metering of amps, volts, kW and kWh with +/- 3% accuracy
- User-defined alarm thresholds with real-time local and remote alerts for potential circuit overloads
- Local digital display shows current draw to help installers avoid overloading circuits
- Remote management via Web, SNMP and Telnet
- Locking IEC receptacles and low-profile circuit breakers
- Port for a temperature and humidity sensor
- Zero-U vertical design frees up rack space
- 42 outlets in a single PDU for dense server and network deployments

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 0U vertical mount
- Input: 1-phase 230V, 32A maximum, 50/60 Hz
- Load capacity: 7400 VA (7.4kW)
- Input connection: IEC 309 32A 2P+E, 3 m cord, 1 power cord
- Outlets: 36 x IEC 60320 C13 and 6 x IEC 60320 C19 (42 total)
- Nominal output voltage: 230V
- Metering: volts, amps, kW and kWh with local display
- Management: Web, SNMP and Telnet
- Overload protection: Yes
- Dimensions (H x W x D): 1791 x 56 x 44 mm
- Weight: 6.93 kg
- Colour: Black
- Operating temperature: -5 to 45 C
- Operating humidity: 5 to 95%
- Certifications: IEC 60950, VDE
- Supplied: installation guide, rack mounting brackets, serial configuration cable, safety guide

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of input plug does this PDU use?
A: It has a single 3 m cord terminated in an IEC 309 32A 2P+E plug, designed for a 230V single-phase 32A supply.

Q: How many outlets does it provide and what types?
A: It provides 42 outlets in total: 36 x IEC C13 and 6 x IEC C19, suitable for servers, switches and higher-draw equipment.

Q: Does it monitor power consumption?
A: Yes. It meters amps, volts, kW and kWh, shows current draw on a local display, and supports user-defined alarm thresholds for overload warnings.

Q: How can the PDU be managed remotely?
A: It supports Web, SNMP and Telnet management. A serial configuration cable is included for initial setup.

Q: Does it use any rack units?
A: No. It is a 0U vertical PDU that mounts alongside the equipment using the supplied rack mounting brackets.

Q: Can I connect environmental sensors?
A: Yes. It has a port for a temperature and humidity sensor to support environmental monitoring.
