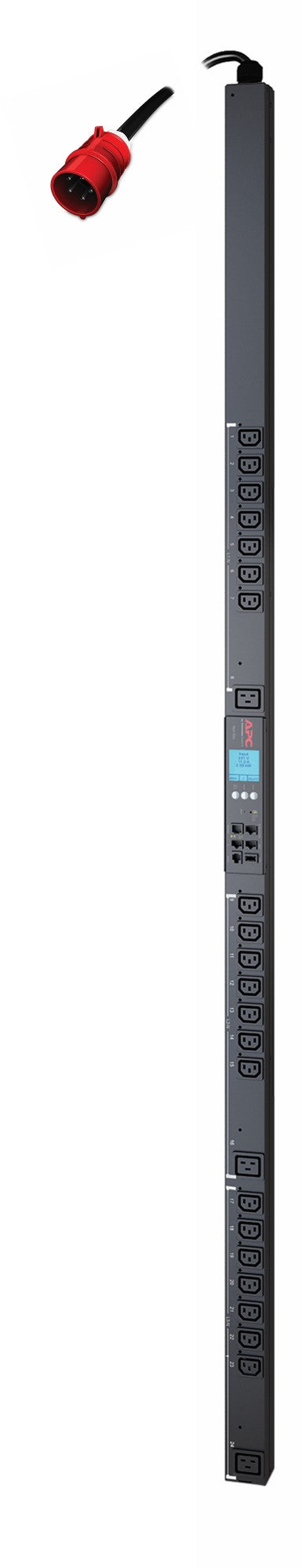

• APC AP8681 black metal rack PDU with power outlets and red plug
1 1

APC

APC AP8681 | NetShelter 0U Switched Rack PDU, 11kW, 21 C13 3 C19

APC AP8681 | NetShelter 0U Switched Rack PDU, 11kW, 21 C13 3 C19

Authorised APC Partner

AP8681

Stock Status: Enquire

$3,839.40 inc. GST
$3,490.36 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP8681 is a NetShelter 0U switched rack PDU rated at 11.0kW with 230V output, metered at every outlet. It provides 21 IEC C13 and 3 IEC C19 outlets in a vertical ZeroU form factor and is fed from a 400V 3-phase input. Outlet-level metering and remote switching make it well suited to data centres and server rooms that need granular power data and remote control of individual loads.

Each outlet can be switched on, off or recycled remotely, so locked-up equipment can be restarted without a site visit. Outlet power sequencing, sequencing delays and load shedding prioritisation help avoid in-rush current and circuit overload during recovery, while user-defined alarms warn of potential overloads. Tool-less vertical mounting keeps the rack tidy and the airflow clear.

Features

- Individual outlet metering for detailed power data, trend analysis and capacity planning
- Remote per-outlet control: turn outlets on or off, or recycle power to locked-up equipment
- Outlet power sequencing to avoid in-rush current at start-up
- Power sequencing delays and load shedding prioritisation to avoid circuit overload during recovery
- Real-time remote current monitoring of connected loads
- User-defined alarms warn of potential overloads
- Package includes a CAN port terminator, installation guide, rack mounting brackets, safety guide and serial configuration cable

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 0U / ZeroU vertical rack PDU, tool-less mounting
- Rated load: 11.0kW (about 11,040VA)
- Nominal output voltage: 230V
- Input: 400V 3-phase (3P+N+PE), 16A rated, IEC 60309 16A/20A plug
- Outlets: 21 x IEC 60320 C13 and 3 x IEC 60320 C19 (24 total)
- Metering: outlet-level (metered-by-outlet) with switching
- Cord length: about 1.8 m (6 ft)
- Dimensions (H x W x D): about 182.9 x 5.6 x 5.1 cm (72.0 x 2.2 x 2.0 in)
- Weight: about 8.23 kg (18.14 lb)
- Colour: Black
- Operating temperature: -5 to 60 °C
- Approvals: UL Listed, cUL, VDE, FCC Part 15 Class A
- Temperature/humidity sensor port and locking IEC receptacles

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input power does the APC AP8681 require?
A: It requires a 400V 3-phase (3P+N+PE) supply, 16A rated, and connects through an IEC 60309 16A/20A plug on the attached cord of about 1.8 m.

Q: How many outlets does the AP8681 provide and what types are they?
A: It provides 24 outlets in total: 21 IEC 60320 C13 and 3 IEC 60320 C19, all at 230V nominal output.

Q: Can I switch individual outlets remotely?
A: Yes. This is a metered-by-outlet model with switching, so each outlet can be turned on, off or recycled remotely, and power sequencing delays are supported.

Q: What does metered-by-outlet mean?
A: Power is measured at each individual outlet rather than only at the PDU input, giving detailed current data for monitoring, trend analysis and capacity planning.

Q: How is the AP8681 mounted in the rack?
A: It is a 0U (ZeroU) vertical PDU with tool-less mounting, so it fits in the rear of the rack without using any rack unit space. Rack mounting brackets are included.

Q: Does it support environmental monitoring?
A: Yes. It has a temperature/humidity sensor port for connecting an environmental sensor.
