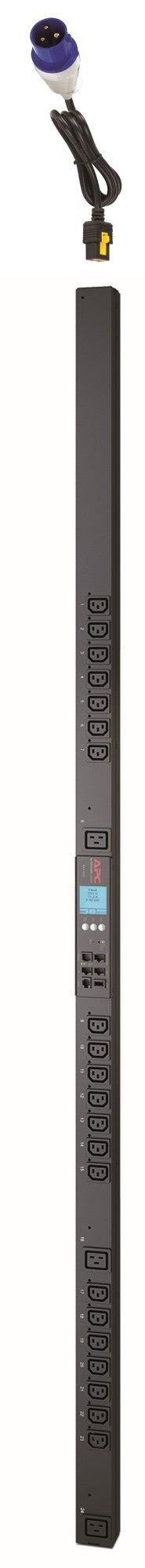

• APC AP8659EU3 NetShelter rack PDU with blue white front panel lights
1 1

APC

APC AP8659EU3 | NetShelter 0U Switched Rack PDU, 16A 230V, 21 C13, 3 C19

APC AP8659EU3 | NetShelter 0U Switched Rack PDU, 16A 230V, 21 C13, 3 C19

Authorised APC Partner

AP8659EU3

In stock:7

$2,586.93 inc. GST
$2,351.75 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter 2G 0U switched rack PDU delivers 16A at 230V through 21 C13 and 3 C19 outlets, with metering at every outlet and remote on/off control of individual outlets. Its ZeroU vertical form factor keeps power distribution out of the rack's usable space, making it well suited to colocation, large data centres and distributed IT sites that need outlet-level visibility and control.

Outlet-level metering, power sequencing and load shedding help protect critical equipment during power recovery, while user-defined alarms warn of potential circuit overloads before failures occur. A temperature and humidity sensor port, locking IEC receptacles and a locking IEC 60309 input cord support secure, monitored deployments, and the PDU integrates with EcoStruxure IT and other management platforms.

Features

- Remote outlet-level on/off control for power recycling to reboot locked-up equipment and to prevent unauthorised use of individual outlets
- Power sequencing delays define the power-up and power-down order of attached equipment
- Load shedding prioritisation helps avoid circuit overload during power recovery and extends uptime of critical equipment
- Real-time remote monitoring of connected load through current metering, with EcoStruxure IT and other platforms
- Real power monitoring, temperature and humidity sensor port, and locking IEC receptacles
- User-defined alarms warn of potential circuit overloads before failures occur

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Type: Switched, metered-by-outlet rack PDU (2G)
- Form factor: ZeroU (0U) vertical mount
- Outlets: 21 x IEC 60320 C13 and 3 x IEC 60320 C19
- Input: IEC 60309 16A 2P+E locking input power cord, 3.00 m cord
- Input voltage: 200/208/230 V, output voltage: 230 V
- Rated current: 16A
- Metering accuracy: +/- 3% (amps, volts, kW, kWh)
- Colour: Black
- Product dimensions: 182.9 cm height x 5.6 cm width x 5.1 cm depth
- Weight: 6.77 kg
- Included: CAN port terminator, installation guide, rack mounting brackets, safety guide, serial configuration cable

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlets does the AP8659EU3 provide?
A: It provides 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets, suitable for a mix of standard servers, switches and higher-draw equipment.

Q: Can individual outlets be switched on and off remotely?
A: Yes. This is a switched PDU, so each outlet can be turned on, off or cycled remotely to reboot locked-up equipment or prevent unauthorised use of an outlet.

Q: Does it meter power at each outlet?
A: Yes. It is metered-by-outlet, with real-time monitoring of amps, volts, kW and kWh at an accuracy of +/- 3%.

Q: What input connection and supply does it need?
A: It has a locking IEC 60309 16A 2P+E input with a 3.00 m cord, and accepts 200/208/230 V input with a 230 V output.

Q: How is it mounted in the rack?
A: It is a ZeroU (0U) vertical PDU installed in the rack's side space using the supplied rack mounting brackets, leaving all rack units free for equipment.

Q: Can it be managed with monitoring software?
A: Yes. It supports real-time remote monitoring and works with EcoStruxure IT and other platforms, and it has a port for a temperature and humidity sensor.
