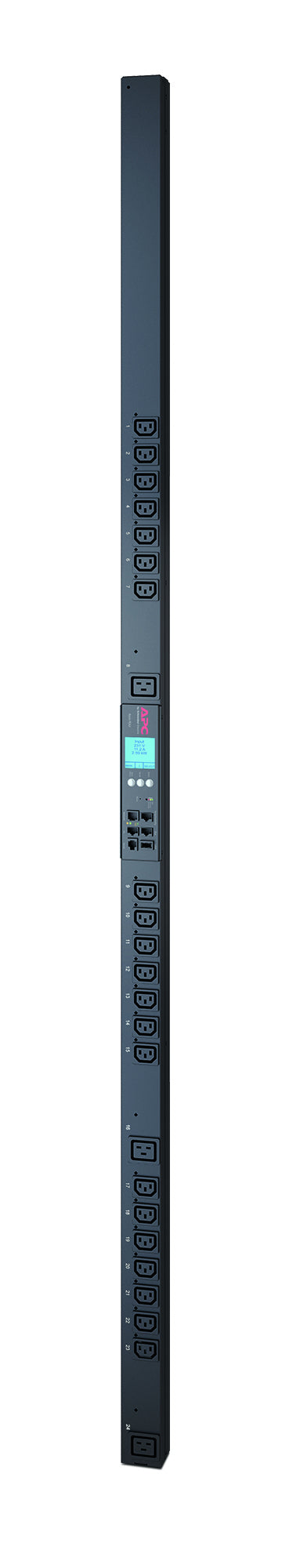

• APC AP8659 black metal rack PDU with outlets and digital display
1 1

APC

APC AP8659 | NetShelter 2G 0U Switched Rack PDU, 20A/208V, 21 C13, 3 C19

APC AP8659 | NetShelter 2G 0U Switched Rack PDU, 20A/208V, 21 C13, 3 C19

Authorised APC Partner

AP8659

In stock:43

$2,454.10 inc. GST
$2,231.00 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter AP8659 is a 0U vertical switched rack PDU that meters power at each outlet and allows remote on, off and reboot control per outlet. It delivers 21 IEC C13 and 3 IEC C19 outlets from a single C20 input, rated for 20A at 208V or 16A at 230V, making it well suited to colocation, data centre and distributed IT sites where outlet-level visibility matters.

Metering accuracy of +/-3% across amps, volts, kW and kWh gives a granular view of the power distributed to each connected device, while user-defined alarms warn of potential circuit overloads before failures occur. Secure Web, SNMP or Telnet management is supported, along with EcoStruxure IT and APC centralised management platforms. The ZeroU vertical form factor preserves valuable rack space in dense environments.

Features

- Individual outlet-level power metering for a granular view of power distributed to equipment
- Remote outlet switching to power on, off or recycle outlets and reboot locked-up equipment
- Outlet switching helps prevent unauthorised outlet use
- User-defined alarms warn of potential circuit overloads before failures occur
- Secure Web, SNMP or Telnet management
- Supports EcoStruxure IT and APC centralised management platforms
- Real-time remote monitoring of connected load
- ZeroU vertical mounting saves rack space in dense environments

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 0U vertical, switched, metered-by-outlet rack PDU
- Outlets: 21 x IEC 60320 C13 and 3 x IEC 60320 C19
- Input connection: IEC 60320 C20
- Nominal input voltage: 200V / 208V / 230V, 50/60 Hz (acceptable input 100-240VAC)
- Maximum input current: 20A (regulatory derated input current 16A)
- Maximum total current draw: 16A
- Load capacity: 3300VA
- Nominal output voltage: 100V / 200V / 208V / 230V
- Metering accuracy: +/-3% (amps, volts, kW, kWh)
- Dimensions (H x W x D): 1829 x 56 x 51 mm
- Net weight: 6.09 kg
- Operating temperature: -5 to 60 °C, operating humidity 5-95%
- Colour: Black
- Included: CAN port terminator, installation guide, rack mounting brackets, serial configuration cable, safety guide

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlets does the APC AP8659 provide?
A: It provides 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets, fed from a single IEC 60320 C20 input.

Q: Can I switch individual outlets on and off remotely?
A: Yes. This is a switched PDU, so each outlet can be turned on, off or recycled remotely to reboot locked-up equipment.

Q: Does it meter power at each outlet?
A: Yes. It is metered by outlet, reporting amps, volts, kW and kWh with +/-3% accuracy for granular load visibility.

Q: What input voltage and current does the AP8659 support?
A: It is rated for 20A at 208V and 16A at 230V, with nominal input of 200V / 208V / 230V at 50/60 Hz and acceptable input of 100-240VAC. Regulatory derated input current is 16A.

Q: How is the AP8659 mounted and how much rack space does it use?
A: It is a 0U vertical PDU, so it mounts alongside the equipment in the rack and uses no rack units. Rack mounting brackets are included.

Q: How is the AP8659 managed?
A: It supports secure Web, SNMP and Telnet management, plus EcoStruxure IT and APC centralised management platforms.
