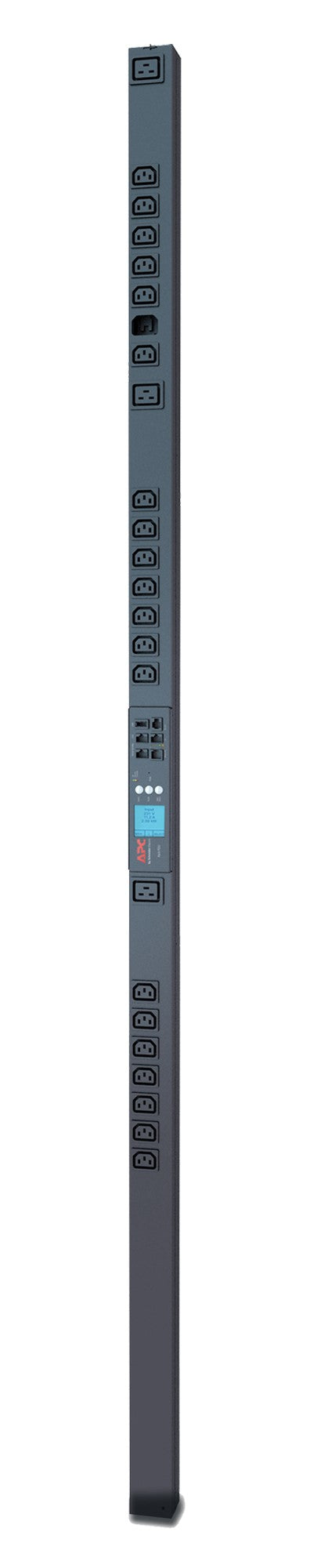

• APC AP8459WW black metal rack PDU with C13 C19 outlets and lights
1 1

APC

APC AP8459WW | NetShelter Rack PDU 2G Metered-by-Outlet, 16A, 21x C13, 3x C19

APC AP8459WW | NetShelter Rack PDU 2G Metered-by-Outlet, 16A, 21x C13, 3x C19

Authorised APC Partner

AP8459WW

In stock:1

$1,929.76 inc. GST
$1,754.33 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Rack PDU 2G AP8459WW is a ZeroU (0U) vertical metered-by-outlet rack PDU with 24 outlets, made up of (21) IEC C13 and (3) IEC C19. Metering each outlet individually supports energy optimisation, capacity planning and circuit protection in high-density server and network racks.

Outlet-level power data can be monitored remotely over the network, and alarm thresholds can be defined to help avoid overloaded circuits. The PDU suits high-density server and networking applications where accurate per-outlet visibility and a vertical, space-saving mounting position are required.

Features

- Individual outlet-level power metering for energy optimisation and capacity planning
- Real-time remote monitoring of connected load via EcoStruxure IT and other platforms
- Alarm thresholds can be defined to avoid overloaded circuits
- Toolless Zero U installation
- Locking IEC outlets and low-profile breakers
- Temperature and humidity sensor port for environmental monitoring
- Suited to high-density server and networking applications

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: ZeroU (0U) vertical rack mount
- PDU type: Metered-by-Outlet
- Outlets: 24 total, (21) IEC C13 and (3) IEC C19
- Input connection: IEC 60320 C20, 1 power cord
- Rated input current: 16A
- Input voltage: 200/208/230V, 50/60Hz
- Output voltage: 200/208/230V AC
- Metering accuracy: approx. +/-3%
- Management: Web, SNMP, Telnet
- Dimensions: approx. 182.9 cm H x 5.6 cm W x 5.1 cm D
- Colour: Black
- Included: CAN port terminator, installation guide, rack mounting brackets, safety guide, serial configuration cable

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlet types does the AP8459WW provide?
A: It provides 24 outlets in total: (21) IEC C13 and (3) IEC C19, covering most servers, switches and higher-draw equipment.

Q: Does this PDU meter each outlet individually?
A: Yes. It is a metered-by-outlet model, so power is measured at each outlet. This supports capacity planning and helps you identify overloaded circuits.

Q: How is the PDU mounted in the rack?
A: It is a ZeroU (0U) vertical unit with toolless installation, and rack mounting brackets are included.

Q: How can I manage and monitor it remotely?
A: It supports Web, SNMP and Telnet management, and connected load can be monitored in real time through EcoStruxure IT and other platforms.

Q: Can I add environmental monitoring?
A: Yes. The PDU has a temperature and humidity sensor port for environmental monitoring.

Q: What input connection does it use?
A: It has a single power cord with an IEC 60320 C20 input connection, rated at 16A.
