APC AP8453 | NetShelter Metered-by-Outlet 0U Rack PDU, 32A 230V, 21 C13, 3 C19

APC AP8453 | NetShelter Metered-by-Outlet 0U Rack PDU, 32A 230V, 21 C13, 3 C19

Authorised APC Partner

AP8453

Stock Status: Enquire

$2,443.85 inc. GST
$2,221.68 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

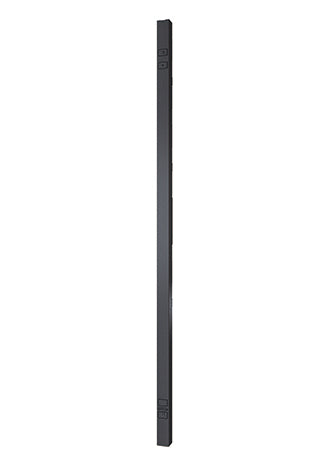

The NetShelter Metered-by-Outlet 0U Rack PDU is a vertical single-phase power distribution unit rated at 7.4kW, 230V and 32A, with 21 C13 and 3 C19 locking outlets and a 3 m IEC 309 input cord. It meters volts, amps, kW and kWh at every outlet, making it well suited to colocation and data centre racks where capacity planning and load balancing matter.

A local LCD display shows live readings, while remote monitoring and user-defined alarms are available through EcoStruxure IT, Web, SNMP and CLI to help prevent circuit overloads. Up to 4 PDUs can be daisy-chained from a single IP address, and a sensor port supports temperature and humidity monitoring.

Features

- Outlet-level power metering for capacity planning and load balancing
- Local LCD display with real-time remote monitoring
- User-defined alarms to help prevent circuit overloads
- Remote management via EcoStruxure IT, Web, SNMP and CLI
- Daisy-chaining to monitor up to 4 PDUs from one IP address
- Local USB port for firmware updates
- Temperature/humidity sensor port
- Locking IEC receptacles and low-profile circuit breakers

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 0U vertical rack mount, single phase
- 7.4kW, 230V, 32A
- Input: IEC 60309 32A 2P+E plug, 3 m cord
- Nominal input voltage 200V/208V/230V
- Outputs: 21 x IEC 60320 C13 and 3 x IEC 60320 C19 (24 total), locking, 230V
- Outlet-level metering (amps, volts, kW, kWh) with +/-3% accuracy
- Operating temperature up to 60°C
- Height 182.9 cm, depth 5.1 cm, width 5.6 cm
- Net weight 8.21 kg
- Colour: black
- Includes CAN port terminator, installation guide, rack mounting brackets, safety guide, serial configuration cable

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the AP8453 use?
A: It has a 3 m cord terminated with an IEC 60309 32A 2P+E plug, for a 230V single-phase supply.

Q: How many outlets does it provide and what types?
A: It provides 24 locking outlets in total: 21 x IEC 60320 C13 and 3 x IEC 60320 C19.

Q: Does it meter each outlet individually?
A: Yes. It measures volts, amps, kW and kWh at the outlet level with +/-3% accuracy.

Q: How can I monitor it remotely?
A: Remote monitoring and alarms are supported through EcoStruxure IT, Web, SNMP and Command Line Interface.

Q: Can I link multiple PDUs together?
A: Yes. Daisy-chaining lets you monitor up to 4 PDUs from a single IP address.

Q: What mounting style is it?
A: It is a 0U vertical rack PDU, supplied with rack mounting brackets.
