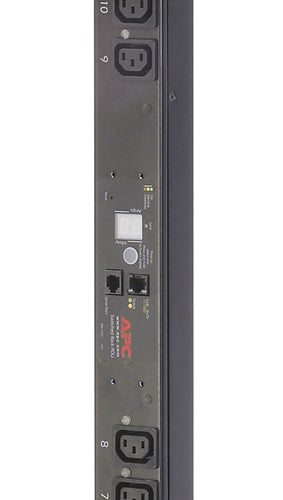

• APC AP7950B NetShelter Switched Rack PDU Zero U black metal rack-mount with 16 C13 outlets
1 1

APC

APC AP7950B | NetShelter Switched Zero U Rack PDU, 10A, 230V, 16x C13

APC AP7950B | NetShelter Switched Zero U Rack PDU, 10A, 230V, 16x C13

Authorised APC Partner

AP7950B

In stock:14

$2,175.80 inc. GST
$1,978.00 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP7950B NetShelter Switched Rack PDU is a Zero U vertical rack PDU with 16 IEC C13 outlets on a 10A, 230V input. Outlet-level on/off control lets you power cycle individual devices, apply delayed power sequencing and manage outlet use remotely, making it well suited to server racks, network cabinets and comms rooms where remote recovery matters.

The Zero U form factor mounts vertically at the rear of the rack using the included toolless mounting kit, saving rack space and improving cable management. Remote monitoring and configuration are available over Web, SNMP and CLI, with user-defined alarms and real-time current monitoring. The unit connects to the supply through a C14 inlet and 3.05 m cord.

Features

- Outlet-level on/off control for power cycling, delayed power sequencing and outlet use management
- Remote monitoring and management via Web, SNMP and Command Line Interface
- User-defined alarms and real-time current monitoring
- Flash-upgradable firmware via network download
- Zero U form factor saves rack space and improves cable management
- Toolless mounting kit, cord retention bracket, rack mounting brackets, installation guide and user manual included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Type: Switched Rack PDU, Zero U (0U) vertical form factor
- Outlets: 16 x IEC 60320 C13
- Input connection: IEC 60320 C14 with 3.05 m (10 ft) cord
- Nominal input voltage: 200V / 208V / 230V (200-240V permissible)
- Nominal output voltage: 230V
- Maximum input current: 10A
- Load capacity: 2300 VA
- Input frequency: 47-63 Hz
- Mounting: rear vertical rack-mount, toolless mounting kit
- Dimensions (H x W x D): 124.5 cm x 5.6 cm x 4.4 cm
- Colour: Black
- Management: Web, SNMP, CLI, Telnet
- Certifications: CE, VDE
- Includes 1-year Secure Network Management Card subscription

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What is the difference between a switched and a metered rack PDU?
A: A switched rack PDU such as the AP7950B allows each outlet to be turned on, off or power cycled remotely, with delayed sequencing. A metered PDU only reports power consumption and does not control individual outlets.

Q: What type and number of outlets does the AP7950B provide?
A: It provides 16 IEC 60320 C13 outlets, suited to servers, switches and other equipment that use standard C14 power cords.

Q: What is the input rating and connection?
A: The input is rated at 10A with a nominal voltage of 200V, 208V or 230V (200-240V permissible). It connects via an IEC 60320 C14 inlet with a 3.05 m cord and has a load capacity of 2300 VA.

Q: How is the AP7950B mounted?
A: It is a Zero U vertical unit that mounts at the rear of the rack using the included toolless mounting kit, so it does not use any rack unit space.

Q: How is the PDU managed remotely?
A: Management is available over Web, SNMP, CLI and Telnet through the network interface, with user-defined alarms and real-time current monitoring. Firmware can be upgraded over the network.

Q: Does the AP7950B include a network management subscription?
A: Yes, it includes a 1-year Secure Network Management Card subscription.
