• APC AP7922B NetShelter Switched Rack PDU black 16-outlet surge protector
1 1

APC

APC AP7922B | NetShelter Switched Rack PDU, 2U, 32A, 230V, 16x C13

APC AP7922B | NetShelter Switched Rack PDU, 2U, 32A, 230V, 16x C13

Authorised APC Partner

AP7922B

Stock Status: Enquire

$2,028.17 inc. GST
$1,843.79 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

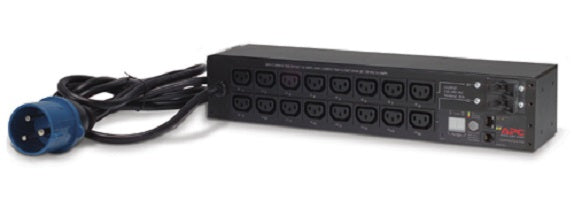

The APC AP7922B NetShelter Switched Rack PDU is a 2U horizontal-mount power distribution unit with 16 IEC C13 outlets, delivering 230V from a 32A input. It provides remote, outlet-by-outlet on/off/reboot control and load monitoring over the network, making it well suited to data centre and server rack deployments where equipment needs to be restarted without a site visit.

Management is handled through Web and SNMP interfaces, with multi-tier user access and outlet grouping for configurable power sequencing. The unit supports 1% metering accuracy suitable for usage-based billing and is compatible with APC centralised management tools such as StruxureWare. Rack mounting brackets and installation documentation are included.

Features

- Remote on/off/reboot control of individual outlets, to restart locked-up equipment
- Flash-upgradeable firmware via network download
- Network management through Web and SNMP interfaces
- Multi-tier user access: Administrator, Device User, Read-Only User and Network-only User
- Outlet-level grouping for configurable power sequencing
- Network port sharing to manage multiple PDUs from a single IP address
- 1% metering accuracy (IEC 62053-21 class 1) suitable for usage-based billing
- Compatible with APC centralised management tools such as StruxureWare

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 2U horizontal rack mount
- Input current: 32A
- Nominal input voltage: 230V (200/208/230V)
- Input plug: IEC 60309 32A 2P+E
- Output: 230V AC
- Outlets: 16 x IEC 60320 C13
- Load capacity: 7360 VA
- Input cord length: 3.05 m (10 ft)
- Dimensions (H x W x D): 8.9 x 44.5 x 11.4 cm (3.5 x 17.52 x 4.49 in)
- Net weight: approx. 4.5 kg (9.9 lb)
- Operating temperature: 0 to 45 \u00b0C
- Operating humidity: 0 to 95% RH
- Management: Web and SNMP network management
- Includes: documentation CD, installation guide, rack mounting brackets

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of outlets does the AP7922B provide?
A: It provides 16 IEC 60320 C13 outlets delivering 230V AC, suitable for most servers, switches and other rack equipment that use C13 power cords.

Q: What input plug and current does it use?
A: The AP7922B has a 32A input with an IEC 60309 32A 2P+E plug on a 3.05 m (10 ft) cord, so it needs a matching 32A supply.

Q: Can I turn individual outlets on and off remotely?
A: Yes. It is a switched PDU, so each outlet can be turned on, off or rebooted remotely over the network via Web or SNMP interfaces.

Q: How is it mounted in the rack?
A: It is a 2U horizontal-mount unit and ships with rack mounting brackets for standard 19-inch racks.

Q: Can it monitor power usage?
A: Yes. It provides load monitoring with 1% metering accuracy (IEC 62053-21 class 1), suitable for usage-based billing.

Q: Does it work with APC management software?
A: Yes. It is compatible with APC centralised management tools such as StruxureWare, and can also be managed via standard SNMP.
