APC AP7920B | NetShelter 1U Switched Rack PDU, 8x C13, C14, 2.3kW

APC AP7920B | NetShelter 1U Switched Rack PDU, 8x C13, C14, 2.3kW

Authorised APC Partner

AP7920B

In stock:184

$1,605.29 inc. GST
$1,459.35 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

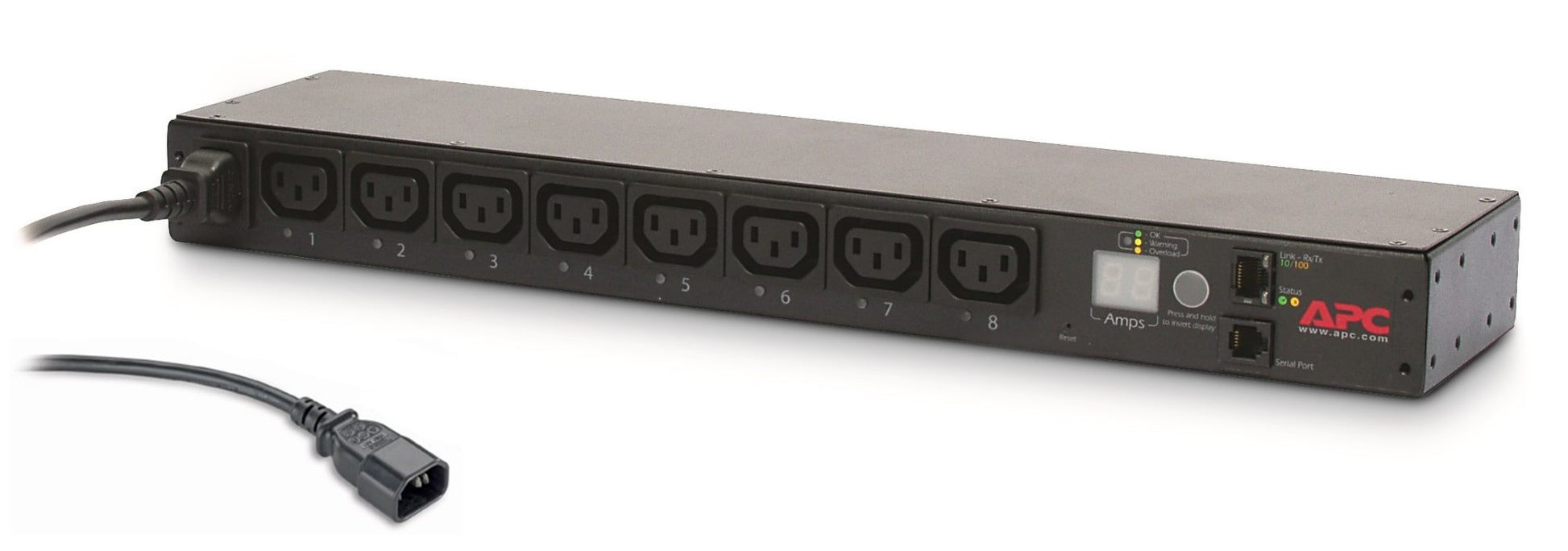

The APC NetShelter AP7920B is a 1U switched rack PDU with eight IEC C13 outlets, a C14 power cord and a capacity of 2.3kW at 230V (10A) or 2.5kW at 208V (12A). It gives data centre and comms room teams remote on/off control and reboot of each outlet, so a hung device can be power-cycled without a site visit.

Each outlet is controlled independently, with outlet user accounts in the firmware and a local digital display of aggregate current for load visibility. Monitoring and management are available over web, SNMP, Telnet and SSH, and the PDU integrates with StruxureWare Data Center Expert. It mounts horizontally in a standard 19-inch rack, with rack mounting brackets supplied.

Features

- Individual outlet on/off switching and remote reboot of connected equipment
- Independent outlet control with outlet user accounts in the firmware
- Monitoring via Web, Telnet, SNMP, SSH or StruxureWare Data Center Expert
- Local digital current display for load visibility
- Supplied with installation guide, user manual and rack mounting brackets

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 1U horizontal rack mount, 19-inch
- 8 x IEC 60320 C13 outlets
- Input: IEC 60320 C14 inlet with power cord
- Capacity: 2.3kW @ 230V (10A) or 2.5kW @ 208V (12A)
- Single phase (1PH)
- Switched PDU with per-outlet control
- Digital display of aggregate current
- Dimensions: 445 x 108 x 44 mm
- Net weight: approx. 2.27 kg
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How many outlets does the AP7920B have and what type are they?
A: It has eight IEC 60320 C13 outlets, all of which can be switched on and off individually.

Q: What is the maximum power capacity?
A: The AP7920B supports 2.3kW at 230V (10A) or 2.5kW at 208V (12A), single phase.

Q: How do I manage and monitor the PDU remotely?
A: It can be accessed via web, SNMP, Telnet or SSH, and it also works with StruxureWare Data Center Expert.

Q: What type of input connection does it use?
A: It is fed through an IEC 60320 C14 inlet and ships with a power cord.

Q: Does it need a dedicated rack space?
A: Yes, it mounts horizontally in a 19-inch rack and occupies 1U. Rack mounting brackets are supplied.

Q: Can I reboot a single device without affecting others?
A: Yes, each outlet is independently controlled, so you can switch off or reboot one connected device remotely without affecting the other outlets.
