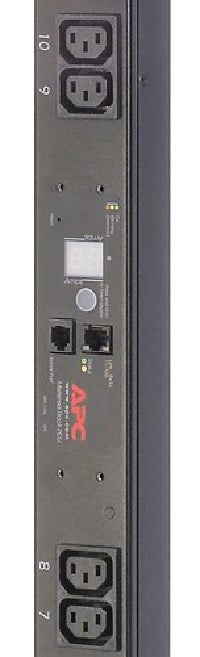

• APC AP7850B NetShelter dark gray rack PDU with 16 C13 outlets
1 1

APC

APC AP7850B | NetShelter Metered Zero U Rack PDU, 10A, 230V, 16x C13

APC AP7850B | NetShelter Metered Zero U Rack PDU, 10A, 230V, 16x C13

Authorised APC Partner

AP7850B

In stock:9

$1,057.54 inc. GST
$961.40 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP7850B is a metered Zero U rack PDU from the NetShelter range, delivering 16 IEC C13 outlets from a 230V, 10A input. Its vertical 0U form factor keeps power distribution alongside the equipment without using up valuable rack space, and metering monitors the aggregate load of connected devices.

A load indicator LED and user-defined alarm thresholds help prevent overloaded circuits, with RJ45 Ethernet and RJ12 serial interfaces for remote monitoring over the network. It supports horizontal, vertical and toolless mounting options, including toolless installation in APC NetShelter VX enclosures.

Features

- Metered: monitors the aggregate power consumption of connected equipment
- Load indicator LED signals overload and warning conditions
- User-defined alarm thresholds help avoid overloaded circuits
- Toolless mounting in APC NetShelter VX enclosures
- Vertical Zero U mounting saves valuable rack space
- Horizontal, vertical and toolless mounting options
- Remote monitoring of connected loads over the network

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 16 x IEC 320 C13 outlets
- Input connection: IEC 320 C14
- Input: 230 VAC, 50 Hz, 10 A max
- Load capacity: 2300 VA
- Zero U (0U) vertical mount form factor
- Input cord length: 10 ft (3.05 m)
- Network interface: RJ45 Base-T Ethernet and RJ12 serial
- Operating temperature: -5 to 45 C (23 to 113 F), 5 to 95% humidity
- Certifications: CE, RoHS, VDE
- Includes cord retention bracket(s), installation guide, rack mounting brackets and toolless mounting kit

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How many outlets does the APC AP7850B provide?
A: It provides 16 IEC 320 C13 outlets, suited to servers, switches and other equipment with standard C13 power cords.

Q: What input does the AP7850B require?
A: It has an IEC 320 C14 input rated for 230 VAC, 50 Hz at up to 10 A, with a 10 ft (3.05 m) input cord.

Q: Does this PDU monitor power consumption?
A: Yes. It is a metered PDU that monitors the aggregate load of connected equipment, with a load indicator LED and user-defined alarm thresholds to help prevent overloads.

Q: Can I monitor the AP7850B remotely?
A: Yes. It has RJ45 Base-T Ethernet and RJ12 serial interfaces, allowing remote monitoring of connected loads over the network.

Q: How is the AP7850B mounted in a rack?
A: It mounts vertically in Zero U space and supports horizontal, vertical and toolless mounting, including toolless installation in APC NetShelter VX enclosures. A toolless mounting kit and rack mounting brackets are included.

Q: What is the load capacity of this PDU?
A: The load capacity is 2300 VA from the 230V, 10A input.
