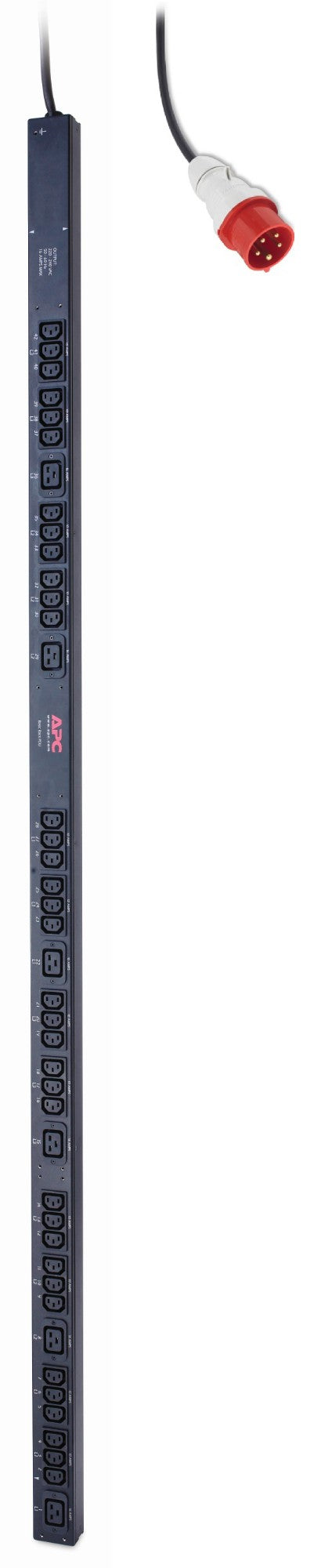

• APC AP7557 black vertical rack PDU with 36 C13 & 6 C19 outlets and red-white plug
1 1

APC

APC AP7557 | NetShelter Basic Zero U Rack PDU, 11kW, 36x C13, 6x C19

APC AP7557 | NetShelter Basic Zero U Rack PDU, 11kW, 36x C13, 6x C19

Authorised APC Partner

AP7557

Stock Status: Enquire

$1,476.00 inc. GST
$1,341.82 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP7557 is a NetShelter basic Zero U rack PDU rated at 11 kW, delivering 230V output to 36 C13 and 6 C19 outlets from a single 400V 3-phase, 16A IEC 309 inlet. It is a non-metered, non-switched vertical PDU suited to staffed sites and non-critical applications in high-density racks, where it consolidates power for servers, switches and storage in one strip.

The vertical Zero U form factor mounts in the rear of NetShelter enclosures without using any rack units, and the mixed outlet layout lets you connect both standard C13 devices and higher-draw C19 equipment from the same unit. A 0.91 m input cord, toolless mounting kit, rack mounting brackets and user documentation are included.

Features

- Low-cost power distribution from a single input to multiple outlets
- Toolless rack mounting in NetShelter enclosures
- Vertical Zero U mounting saves rack space
- Mixed C13 and C19 outlets for flexible device connectivity
- Includes installation guide, rack mounting brackets, toolless mounting kit and user manual

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: Zero U, vertical mount
- Type: Basic (non-metered, non-switched)
- Load capacity: 11 kW / 11000 VA
- Output voltage: 230V nominal
- Outlets: 36 x IEC 320 C13 and 6 x IEC 320 C19 (42 total)
- Input: 400V 3PH, 50/60 Hz
- Input connection: IEC 309 16A 3P+N+PE
- Max input current: 16 A per phase
- Power cord: 1 x 0.91 m (3 ft)
- Colour: Black
- Net weight: 5.45 kg
- Operating temperature: -5 to 45 \u00b0C
- Operating humidity: 5-95%

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input supply does the APC AP7557 require?
A: It requires a 400V 3-phase supply at 50/60 Hz, connected via the IEC 309 16A 3P+N+PE inlet, with a maximum input current of 16 A per phase.

Q: How many outlets does it have and what types?
A: It provides 42 outlets in total: 36 x IEC 320 C13 and 6 x IEC 320 C19, all at 230V nominal.

Q: Is this PDU metered or switched?
A: No. The AP7557 is a basic PDU with no metering, outlet switching or remote monitoring, and it does not include overload protection.

Q: Will it mount in a NetShelter rack?
A: Yes. It is a Zero U vertical unit designed for toolless mounting in NetShelter enclosures, and rack mounting brackets and a toolless mounting kit are included.

Q: What is the maximum load capacity?
A: The unit is rated for 11 kW (11000 VA) of total load.

Q: What length is the input power cord?
A: The attached input cord is 0.91 m (3 ft) long and terminates in the IEC 309 plug.
