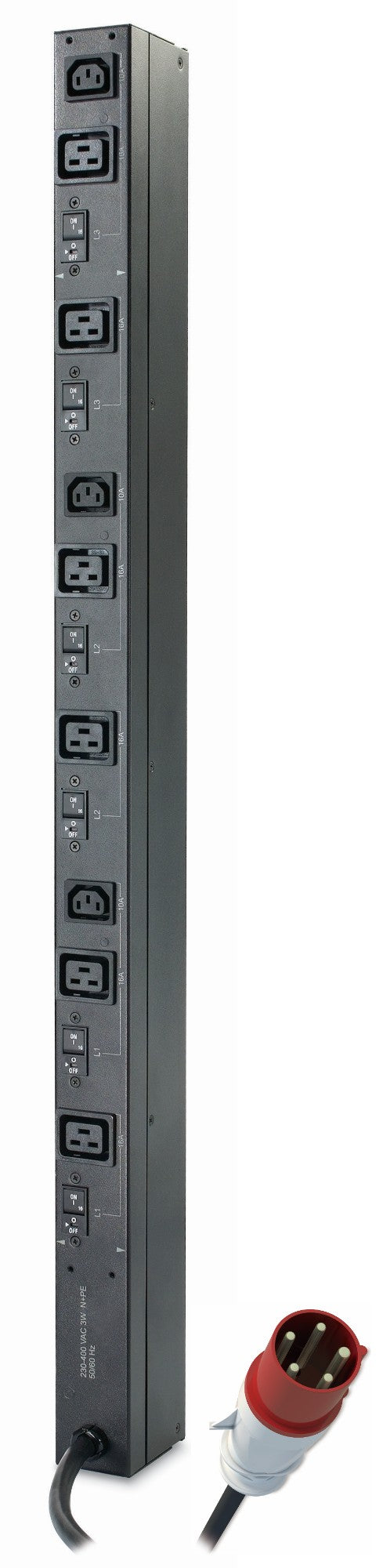

APC AP7555A | NetShelter Basic Zero U Rack PDU, 22kW, 400V, 6x C19, 3x C13

APC AP7555A | NetShelter Basic Zero U Rack PDU, 22kW, 400V, 6x C19, 3x C13

Authorised APC Partner

AP7555A

Stock Status: Enquire

$1,618.57 inc. GST
$1,471.43 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The AP7555A is a NetShelter Basic Zero U vertical rack PDU rated at 22kW, designed for high-density racks drawing power from a 400V 3-phase IEC 309 32A supply. It provides six C19 and three C13 outlets, making it well suited to servers, blade chassis and network equipment that need a mix of high-current and standard connections.

This non-metered basic PDU mounts vertically in the rack using a toolless mounting kit, saving rack space and keeping power cabling tidy in NetShelter enclosures. It is built for high-temperature environments and includes resettable circuit breakers for quick recovery from overloads.

Features

- Zero U vertical mounting saves rack space and is optimised for NetShelter enclosures
- Toolless mounting kit for fast installation
- Resettable circuit breakers for quick recovery from overloads
- Single input power source distributing to multiple outputs
- Designed to operate in high-temperature environments
- Includes installation guide and toolless mounting kit

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: Zero U vertical mount
- PDU type: Basic
- Nominal power capacity: 22kW (22,080VA)
- Nominal input voltage: 400V, 3-phase (3P+N+PE), 47-63 Hz
- Maximum input current: 32A per phase
- Input connection: IEC 309 32A 3P+N+PE, hardwired cord (approx. 1.8m)
- Nominal output voltage: 230V
- Outlets: 9 total, 6 x IEC 320 C19 and 3 x IEC 320 C13
- Dimensions: 927mm (H) x 55mm (W) x 88mm (D)
- Net weight: 4.76kg
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input supply does the AP7555A require?
A: It requires a 400V 3-phase (3P+N+PE) supply with a 32A IEC 309 connection, at 47-63 Hz. The input cord is hardwired.

Q: How many outlets does it have and what types?
A: It has nine outlets in total: six IEC 320 C19 and three IEC 320 C13, all at a nominal 230V output.

Q: Is this a metered or switched PDU?
A: No. The AP7555A is a basic PDU, so it does not include metering or outlet switching. It simply distributes power from a single input to multiple outlets.

Q: Does it mount inside the rack without using rack units?
A: Yes. It is a Zero U vertical PDU that mounts toolless in NetShelter enclosures using the supplied mounting kit, so it uses no rack unit space.

Q: Is it suitable for high-temperature environments?
A: Yes. It is designed to operate in high-temperature environments, which suits dense racks and hot-aisle deployments.

Q: What is the maximum power capacity?
A: The nominal power capacity is 22kW (22,080VA), with a maximum input current of 32A per phase.
