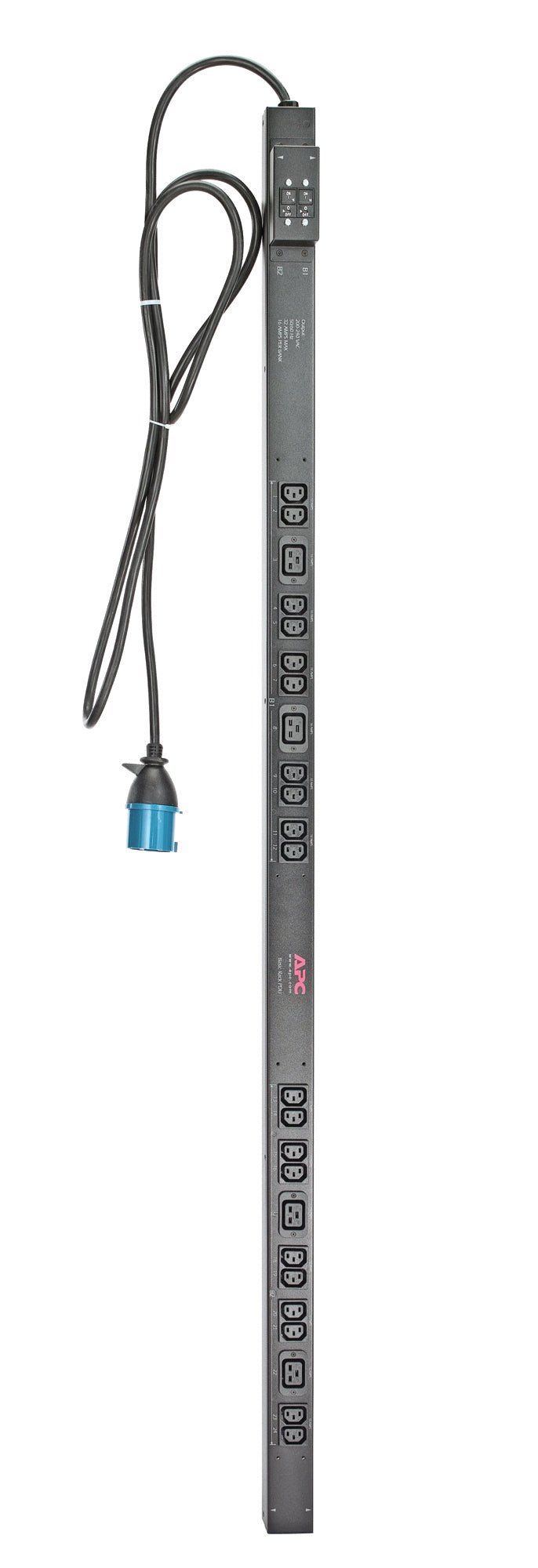

APC AP7553 | NetShelter Basic Zero U Rack PDU, 32A, 230V, 20x C13, 4x C19

APC AP7553 | NetShelter Basic Zero U Rack PDU, 32A, 230V, 20x C13, 4x C19

Authorised APC Partner

AP7553

In stock:5

$783.79 inc. GST
$712.54 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter Basic Zero U Rack PDU is a single-phase vertical rack power distribution unit rated at 32A and 230V, with 20 IEC C13 and 4 IEC C19 outlets. It is designed for rack deployments that need high outlet density without using any rack space, and it feeds multiple pieces of equipment from a single IEC 60309 32A input.

The unit has a 7400VA load capacity and mounts toolless at the rear of NetShelter enclosures, using the supplied mounting hardware. Resettable circuit breakers allow quick recovery from an overload event, and the 3.1 m input cord reaches the branch whip easily in most rack layouts.

Features

- Zero U vertical mounting uses no rack space
- Resettable circuit breakers allow quick recovery from overload events
- Toolless mounting at the rear of NetShelter enclosures
- 24 outlets (20 C13 and 4 C19) for servers, switches and storage in one unit
- Single IEC 60309 32A input feeds multiple devices from one branch whip
- 7400VA load capacity suits high-density racks

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: Zero U vertical mount
- Phase: single phase
- Nominal output voltage: 230V
- Maximum total current draw: 32A
- Load capacity: 7400VA (7.4kW)
- Outlets: 20 x IEC 60320 C13 and 4 x IEC 60320 C19
- Input connection: IEC 60309 32A 2P+E
- Nominal input voltage: 200V, 208V, 230V
- Input frequency: 47 - 63 Hz
- Input cord length: 3.1 m, 1 power cord
- Dimensions (H x W x D): 1619 x 56 x 44 mm
- Net weight: 5.57 kg
- Colour: black
- Includes: installation guide, rack mounting brackets, toolless mounting kit

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the AP7553 use?
A: It has a single fixed 3.1 m input cord terminated with an IEC 60309 32A 2P+E plug. Make sure the branch whip or supply outlet suits this connector.

Q: How many and what type of outlets does it provide?
A: It provides 24 outlets: 20 x IEC 60320 C13 and 4 x IEC 60320 C19. The C19 outlets suit higher-draw equipment such as blade chassis and larger servers.

Q: Does this PDU use any rack units?
A: No. It is a Zero U vertical unit that mounts in the rear of a NetShelter enclosure, so it does not consume any rack space.

Q: What is the maximum load it can supply?
A: The load capacity is 7400VA (7.4kW) with a maximum total current of 32A at 230V.

Q: Is this a metered or switched PDU?
A: No. It is a basic PDU, which distributes power only, without metering or per-outlet switching. It has resettable circuit breakers for overload protection.

Q: Is mounting hardware included?
A: Yes. The unit ships with rack mounting brackets, a toolless mounting kit and an installation guide.
