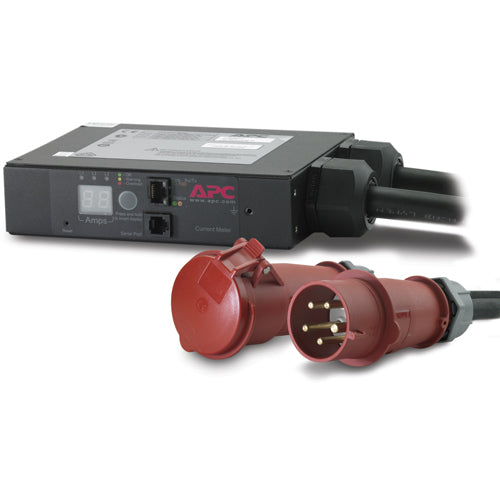

APC AP7175B | NetShelter Metered Rack PDU, In-Line Current Meter, 32A, 230V, IEC309 3-PH

APC AP7175B | NetShelter Metered Rack PDU, In-Line Current Meter, 32A, 230V, IEC309 3-PH

Authorised APC Partner

AP7175B

Stock Status: Enquire

$1,100.42 inc. GST
$1,000.38 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter AP7175B is a metered in-line rack PDU with a 32A, 230V IEC 60309 3-phase (3P+N+G) connection. It provides real-time remote monitoring of connected loads, with user-defined alarm thresholds that warn of potential circuit overloads before they cause IT downtime. It suits data centre and server room deployments that need visibility of current draw on a three-phase feed.

Monitoring is available locally and through web-based tools, with network management via Web, SNMP and Telnet on networked units. The 0U form factor and multiple mounting options make it straightforward to install in a rack, and the in-line design lets one branch whip feed multiple pieces of equipment.

Features

- Real-time remote monitoring of connected loads
- User-defined alarm thresholds with network and visual alarms to help avoid overloaded circuits
- Local and web-based monitoring, in the data centre or remotely
- Network management via Web, SNMP and Telnet
- Flash-upgradeable firmware via network download (networked units only)
- Multiple mounting methods
- Single input power source feeding multiple pieces of equipment from one branch whip
- Wide range of input and output connection options

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Input: IEC 60309 32 A 3P+N+E (400 V, 3-phase)
- Output: 1 x IEC 60309 32 A 3P+N+PE
- Output voltage: 230 V (permissible 220-250 V)
- Maximum line current: 32 A
- Load capacity: 22080 VA
- Frequency: 50/60 Hz
- Form factor: 0U
- Cable length: 0.91 m
- Dimensions (H x D x W): 24.6 x 33.0 x 18.5 cm
- Included: documentation CD, rack mounting brackets, RS-232 configuration cable

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input and output connections does the AP7175B use?
A: Both the input and output use IEC 60309 32A connectors in a 3P+N+E configuration, so it is designed for a 3-phase 32A feed.

Q: Does the AP7175B switch or control individual outlets?
A: No. It is a metered in-line unit that monitors current for the connected load. It does not provide individual outlet switching.

Q: How is the load monitored?
A: Current can be monitored locally and through web-based tools. Network management is available via Web, SNMP and Telnet on networked units.

Q: Can I set alarms for overload conditions?
A: Yes. User-defined alarm thresholds trigger network and visual alarms, giving early warning before a circuit becomes overloaded.

Q: What is the maximum current and load capacity?
A: The maximum line current is 32A, with a load capacity of 22080 VA at 230V output.

Q: How is it mounted in a rack?
A: It is a 0U unit supplied with rack mounting brackets, and it supports multiple mounting methods.
