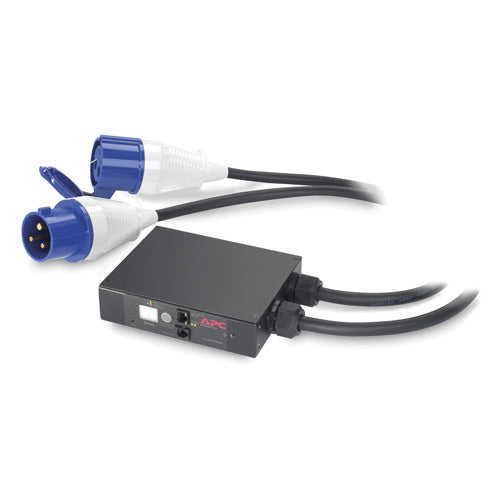

• APC AP7155B black power strip with blue white industrial plugs
1 1

APC

APC AP7155B | NetShelter Metered Rack PDU In-Line Current Meter, 32A, 230V, IEC309-32A 2P+G

APC AP7155B | NetShelter Metered Rack PDU In-Line Current Meter, 32A, 230V, IEC309-32A 2P+G

Authorised APC Partner

AP7155B

Stock Status: Enquire

$949.76 inc. GST
$863.42 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP7155B is an in-line current meter for rack power distribution, rated for 32A at 230V with IEC309-32A 2P+G input and output connections. It measures and displays the current drawn by connected equipment in real time on a digital display, making it well suited to server rooms and data centres where load needs to be tracked closely.

The unit supports up to 7360 VA of load at 50/60 Hz and ships with a 0.91 m input cord, rack mounting brackets, an RS-232 configuration cable and documentation. Its small form factor allows it to be added to an existing power feed without redesigning the rack layout, and precise current readings help with effective power management and capacity planning.

Features

- Real-time monitoring of the current drawn by connected equipment
- Precise current measurement for effective power management
- Small form factor for easy integration into existing setups
- Digital display for at-a-glance current readings
- Simple setup process with clear instructions
- Rack mounting brackets and installation guide included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Maximum input current: 32A per phase
- Nominal input voltage: 230V (220-250 VAC acceptable)
- Input frequency: 50/60 Hz
- Input connection: IEC 309 32A 2P+E
- Output connection: 1 x IEC 309 32A 2P+E
- Load capacity: 7360 VA
- Input cord length: 0.91 m, 1 power cord
- Digital current display
- Operating temperature: -5 to 45 C
- Operating relative humidity: 5 to 95%
- Operating elevation: 0 to 3000 m
- Includes documentation CD, RS-232 configuration cable and rack mounting brackets
- Approvals: AS/NZS 3548 Class A, CE, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input and output connections does the AP7155B use?
A: It uses IEC 309 32A 2P+E (2P+G) for both the input and the single output connection, with a 0.91 m input cord.

Q: What is the maximum current and load capacity?
A: The AP7155B supports up to 32A per phase at 230V, with a load capacity of 7360 VA.

Q: Does this unit distribute power to multiple outlets?
A: No. It is an in-line meter with a single IEC 309 32A output, designed to measure the current drawn by the connected equipment rather than provide multiple outlets.

Q: How is the current reading displayed?
A: The unit has a digital display that shows the current drawn by connected equipment in real time.

Q: What is included in the box?
A: It includes rack mounting brackets, an RS-232 configuration cable and a documentation CD.

Q: What input voltage range is supported?
A: It is rated for 230V nominal, with an acceptable input range of 220-250 VAC at 50/60 Hz.
