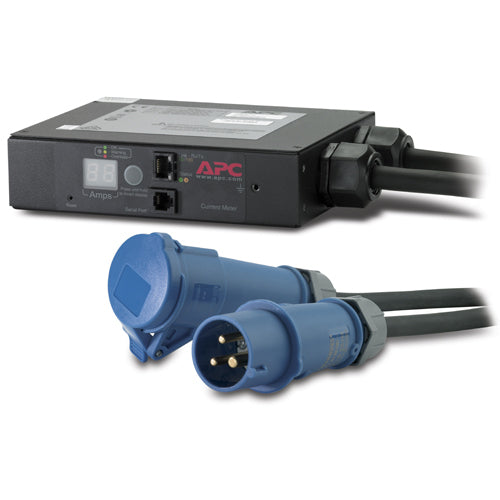

• APC AP7152B black surge protector with blue IEC309-16A connectors
1 1

APC

APC AP7152B | NetShelter In-Line Current Meter, 16A, 230V, IEC309

APC AP7152B | NetShelter In-Line Current Meter, 16A, 230V, IEC309

Authorised APC Partner

AP7152B

Stock Status: Enquire

$869.43 inc. GST
$790.39 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NetShelter In-Line Current Meter (AP7152B) is a 16A, 230V metered PDU designed to monitor the current drawn by connected equipment in the data centre. With a single IEC 60309 16A 2P+E input and one IEC 60309 16A 2P+E output, it sits in-line to add current monitoring to existing basic rack PDUs and freestanding equipment without replacing them.

Current transformers with user-defined alarm thresholds warn of circuit overloads, and loads can be monitored locally and remotely through web, SNMP and Telnet interfaces. Firmware is flash-upgradeable over the network, and the 0U rack-mount design with included mounting brackets keeps it out of the way of rack space.

Features

- Current transformers with user-defined alarm thresholds to warn of circuit overloads
- Real-time remote monitoring of connected loads via web, SNMP and Telnet
- Local and remote current monitoring
- Monitors existing basic rack PDUs and freestanding equipment
- Flash-upgradeable firmware via network download
- 0U rack mounting with included brackets

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 16A, 230V in-line metered PDU
- Input: IEC 60309 16A 2P+E
- Output: 1 x IEC 60309 16A 2P+E
- Load capacity: 3680 VA
- Input voltage: 200/208/230 V, 50/60 Hz
- Acceptable input voltage: 220-250 VAC
- Maximum line current: 16 A
- Input and output cord length: 0.91 m
- Mounting: 0U rack-mounted
- Dimensions (H x W x D): 44 x 178 x 140 mm
- Net weight: 1.84 kg
- Colour: Black
- Operating temperature: -5 to 45 C
- Operating relative humidity: 5 to 95 %
- Included: documentation CD, rack mounting brackets, RS-232 configuration cable

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What does the AP7152B do?
A: It is an in-line current meter that monitors the current drawn by connected equipment. It provides local and remote monitoring with user-defined alarm thresholds to warn of circuit overloads.

Q: What connectors does it use?
A: It has a single IEC 60309 16A 2P+E input and one IEC 60309 16A 2P+E output, each on a 0.91 m cord.

Q: Can it be used with an existing basic rack PDU?
A: Yes. It is designed to monitor existing basic rack PDUs as well as freestanding equipment, by sitting in-line between the supply and the load.

Q: How is the current monitored remotely?
A: Connected loads can be monitored in real time via web, SNMP and Telnet interfaces.

Q: Does it provide overload protection?
A: No. It is a monitoring device only and does not include overload protection, so circuit protection must be provided upstream.

Q: How is it mounted and what is included?
A: It is a 0U rack-mounted unit. The box includes rack mounting brackets, a documentation CD and an RS-232 configuration cable.
