• APC AP6038A NetShelter rack PDU with 3 C19 outlets and cable
1 1

APC

APC AP6038A | NetShelter Basic Rack PDU, 0U/1U, 63A, 3x C19, 220-240V

APC AP6038A | NetShelter Basic Rack PDU, 0U/1U, 63A, 3x C19, 220-240V

Authorised APC Partner

AP6038A

Stock Status: Enquire

$994.04 inc. GST
$903.67 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

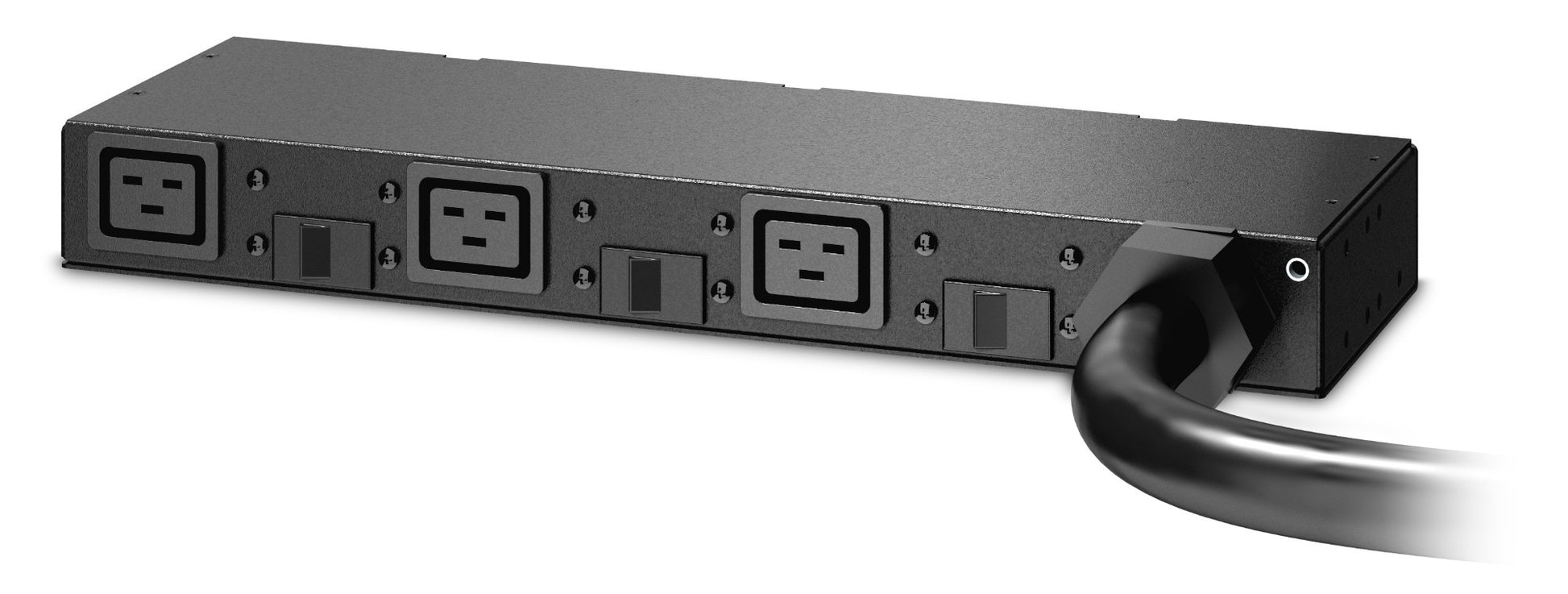

The APC AP6038A is a NetShelter Basic Rack PDU with three IEC C19 outlets, fed from a single 63A, 220-240V input via an IEC 60309 plug. It provides low-cost, non-metered power distribution for high-draw IT equipment such as servers, blade chassis and network gear in standard equipment racks.

The 0U/1U form factor allows horizontal mounting in 1U or vertical mounting in 0U, giving flexibility when planning rack layouts. A 12 ft (3.6 m) input cord and the installation and safety guides are supplied, making it a straightforward fit for single-feed rack power distribution.

Features

- Low-cost basic power distribution for IT equipment
- Single input power source feeding multiple devices from one branch supply
- Flexible horizontal (1U) or vertical (0U) rack mounting
- Three high-current C19 outlets for servers and network equipment
- Supplied with installation guide and safety guide

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Outlets: 3 x IEC 60320 C19
- Nominal input voltage: 220-240V (230V), 50Hz
- Rated input: 63A, single phase
- Maximum input current: 48A
- Input connection: IEC 60309 63A 2P+PE plug
- Input cord length: 12 ft (3.6 m)
- Form factor: 0U vertical / 1U horizontal
- Dimensions: approx. 388 x 126 x 44 mm (1U)

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of plug does the AP6038A use?
A: It has an IEC 60309 63A 2P+PE plug on a 12 ft (3.6 m) input cord, so it needs a matching 63A IEC 60309 supply outlet.

Q: How many outlets does this PDU provide and what type are they?
A: It provides three IEC 60320 C19 outlets, suited to high-draw equipment such as servers and blade chassis.

Q: Can the AP6038A be mounted vertically in a rack?
A: Yes. It supports both horizontal mounting in 1U and vertical mounting in 0U.

Q: Is this a metered or switched PDU?
A: No. It is a basic PDU with no metering or outlet switching, providing straightforward power distribution.

Q: What input voltage and current does it support?
A: It is rated for 220-240V single phase at 63A, with a maximum input current of 48A.
