• APC AP6032A rack PDU back with 4 C19 outlets 2 switches black cord
1 1

APC

APC AP6032A | NetShelter Basic Rack PDU, 4x C19, 32A, 0U/1U

APC AP6032A | NetShelter Basic Rack PDU, 4x C19, 32A, 0U/1U

Authorised APC Partner

AP6032A

Stock Status: Enquire

$311.32 inc. GST
$283.02 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

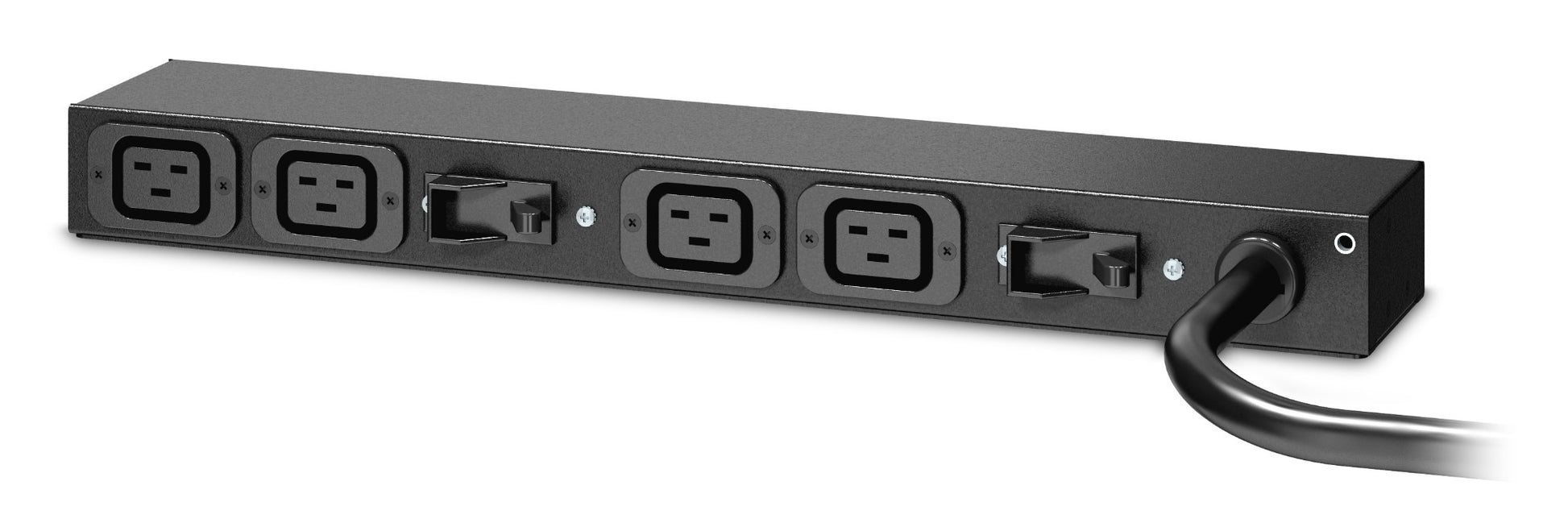

The APC AP6032A is a basic 0U/1U rack PDU with four IEC 60320 C19 outlets, rated for 32A at 220-240V single-phase. It connects through an IEC 60309 32A 2P+E input and suits high-power IT equipment such as servers and chassis switches in EMEA and Asia-Pacific power environments.

This non-metered, non-switched PDU mounts vertically (0U) or horizontally (1U) at the front or rear of the rack, using a toolless mounting kit for quick installation. Overload protection and a roughly 3.7 m input cord make it a straightforward way to distribute power inside an APC NetShelter or compatible rack.

Features

- Four C19 outlets for high-power IT equipment distribution
- Zero-U (vertical) or 1U (horizontal) mounting flexibility to save rack space
- Supports up to 32A, 230V single-phase power distribution
- Toolless mounting kit for quick setup
- Overload protection
- Mounts at the front or rear of the rack

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 4 x IEC 60320 C19 outlets
- Rack height: 0U/1U (1U horizontal or 0U vertical mounting)
- Input connection: IEC 60309 32A 2P+E
- Nominal input voltage: 200/230/240V, acceptable input range 200-240VAC
- Input frequency: 50/60 Hz
- Maximum input current: 32A
- Load capacity: 7400VA
- Overload protection: Yes
- Input cord length: approx. 3.7 m (12 ft)
- Dimensions (H x W x D): approx. 4.4 x 43.8 x 9.3 cm
- Net weight: 2.78 kg
- Includes installation guide and safety guide

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of plug or input connection does the AP6032A use?
A: It has an IEC 60309 32A 2P+E input connection, so it needs a matching 32A IEC 60309 supply.

Q: Can the AP6032A be mounted vertically and horizontally?
A: Yes. It supports 0U vertical mounting or 1U horizontal mounting, at the front or rear of the rack.

Q: Is this PDU metered or switched?
A: No. The AP6032A is a basic PDU without metering or outlet switching, designed for simple power distribution.

Q: What outlets does it provide?
A: Four IEC 60320 C19 outlets, suited to high-power equipment. C13 devices need a C19-to-C13 adapter cable.

Q: What input voltage range does it support?
A: It operates at 200-240VAC, 50/60 Hz, with a maximum input current of 32A.

Q: Does it include mounting hardware?
A: Yes. It ships with a toolless mounting kit, plus an installation guide and a safety guide.
