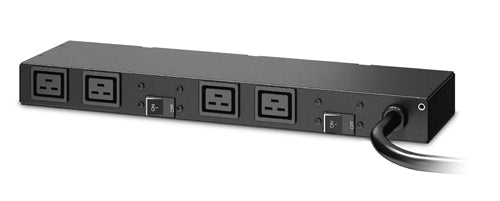

APC AP6031A | NetShelter Basic Rack PDU, 0U/1U, 208V 30A, 4x C19, L6-30P

APC AP6031A | NetShelter Basic Rack PDU, 0U/1U, 208V 30A, 4x C19, L6-30P

Authorised APC Partner

AP6031A

Stock Status: Enquire

$396.83 inc. GST
$360.75 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP6031A NetShelter Basic Rack PDU delivers 208V 30A power distribution to four C19 outlets from a single NEMA L6-30P input. It is a non-metered, non-switched rack PDU that mounts horizontally in 1U or vertically as 0U, making it a practical choice for high-density server, storage and network racks.

With a 5000 VA load capacity and a 12 ft (3.66 m) input cord, one branch whip can power multiple pieces of rack equipment. A toolless mounting kit is included for quick installation, along with an installation guide and a safety guide.

Features

- Supports up to 30A, 208V power distribution
- Can be mounted horizontally or vertically
- Includes toolless mounting kit for quick setup
- Single input power source: one branch whip powers multiple pieces of rack equipment
- Supplied with an installation guide and a safety guide

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 4 x IEC 60320 C19 outlets
- Input: NEMA L6-30P, 12 ft (3.66 m) cord
- Input voltage 200/208V (200-240VAC +6%/-10%), 50/60 Hz
- Max line current 30A (24A UL/C-UL derated)
- Load capacity 5000 VA
- Overcurrent protection via two 20A pole breakers
- Basic PDU type (no metering or switching)
- Form factor 1U horizontal or 0U vertical
- Dimensions (H x W x D): 44 x 438 x 126 mm
- Net weight 3.8 kg
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of plug does the AP6031A use?
A: It has a NEMA L6-30P input plug on a 12 ft (3.66 m) cord and requires a matching 208V 30A supply.

Q: What outlets does this PDU provide?
A: Four IEC 60320 C19 outlets, suited to high-draw equipment such as servers and storage that use C19 power cords.

Q: Can the AP6031A be mounted vertically?
A: Yes. It mounts horizontally in 1U or vertically as 0U, and a toolless mounting kit is included.

Q: Does this PDU offer metering or remote switching?
A: No. It is a basic PDU with no metering or switching and is not USB compatible.

Q: What is the maximum load this PDU can support?
A: It has a 5000 VA load capacity with a 30A maximum line current, derated to 24A under UL/C-UL rules.

Q: What overcurrent protection is built in?
A: Overcurrent protection is provided by two 20A pole breakers.
