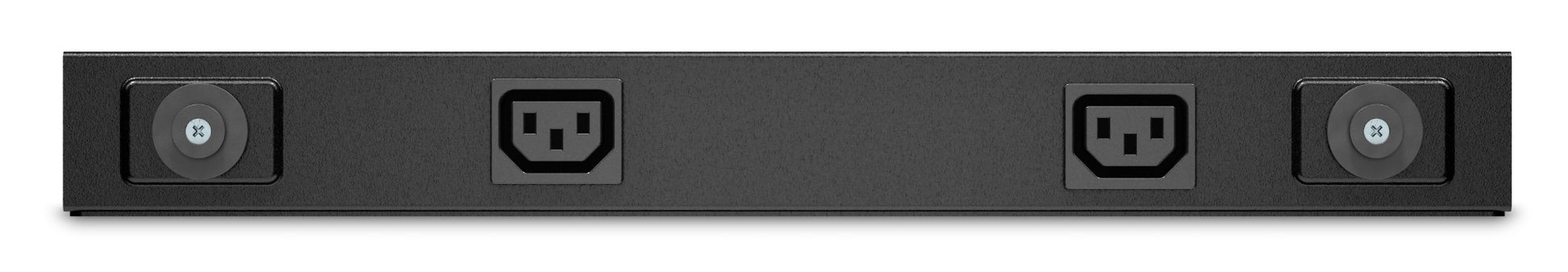

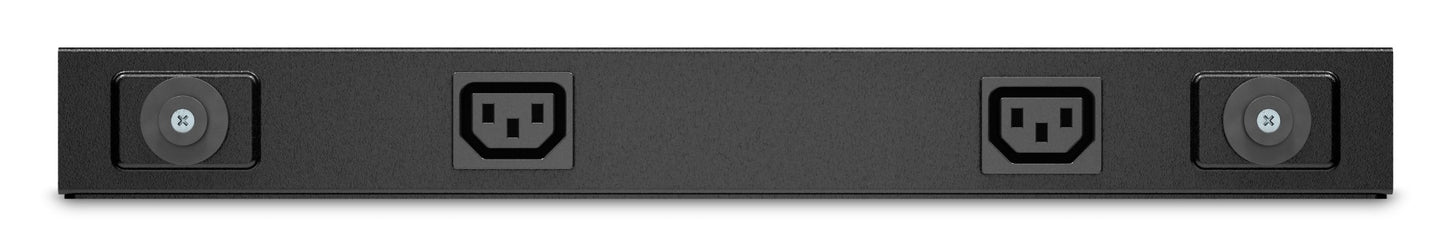

• APC AP6020A NetShelter PDU rear black power strip 2 AC outlets 2 buttons
1 1

APC

APC AP6020A | NetShelter Basic Rack PDU, 0U, 3.3kW, 13x C13, C20 Inlet

APC AP6020A | NetShelter Basic Rack PDU, 0U, 3.3kW, 13x C13, C20 Inlet

Authorised APC Partner

AP6020A

In stock:4

$142.44 inc. GST
$129.49 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP6020A NetShelter Basic Rack PDU is a 0U single-phase rack power distribution unit delivering up to 3.3kW through 13 IEC C13 outlets from a single C20 inlet. It supports 100-240V at 20A or 200-240V at 16A input, making it suited to standard server racks and network cabinets that need dense, reliable outlet capacity for IT equipment.

This basic (non-metered, non-switched) PDU mounts vertically in 0U or horizontally in 1U, at the front or rear of the rack, freeing up valuable U-space. It is part of the APC NetShelter range and carries UL/cUL, CE, EAC, IRAM, PSE and VDE certifications.

Features

- 13 C13 outlets provide dense power distribution for servers, switches and storage
- 0U or 1U mounting frees up U-space in the rack
- Flexible input supports 100-240V at 20A or 200-240V at 16A
- Protects against overloads and enables quick recovery
- Front or rear rack placement for flexible cable routing
- Durable APC design for reliable rack power distribution

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Model: AP6020A
- PDU type: Basic (non-metered, non-switched)
- Form factor: 0U vertical or 1U horizontal mounting
- Phase: Single phase
- Maximum load: 3.3kW (3300 VA)
- Input voltage: 100-240V at 20A or 200-240V at 16A
- Input connection: IEC 60320 C20 inlet
- Outputs: 13 x IEC 60320 C13
- Output voltage: 120V AC / 230V AC
- Mounting: rack-mountable, front or rear placement
- Certifications: UL/cUL Listed, CE, EAC, IRAM, PSE, VDE
- Package contents: PDU, installation guide, safety guide

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of inlet does the AP6020A use?
A: It uses an IEC 60320 C20 inlet, so it requires a power cord with a C19 connector.

Q: How many outlets does the AP6020A provide and what type are they?
A: It provides 13 IEC 60320 C13 outlets, suitable for most servers, switches and other rack-mounted IT equipment.

Q: What input voltage and current does it support?
A: It supports 100-240V at 20A or 200-240V at 16A, for a maximum load of 3.3kW.

Q: Is the AP6020A a metered or switched PDU?
A: No. It is a basic PDU, so it provides power distribution without outlet metering or remote switching.

Q: Can it be mounted vertically in a rack?
A: Yes. It can be mounted vertically in 0U or horizontally in 1U, at the front or rear of the rack.

Q: Is it single phase or three phase?
A: The AP6020A is a single-phase PDU.
