• APC AP6003A NetShelter Basic Rack PDU with 14 vertical C13 outlets
1 1

APC

APC AP6003A | NetShelter Basic Rack PDU, Half Height, 14x C13, 20A/16A

APC AP6003A | NetShelter Basic Rack PDU, Half Height, 14x C13, 20A/16A

Authorised APC Partner

AP6003A

In stock:2

$320.05 inc. GST
$290.95 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

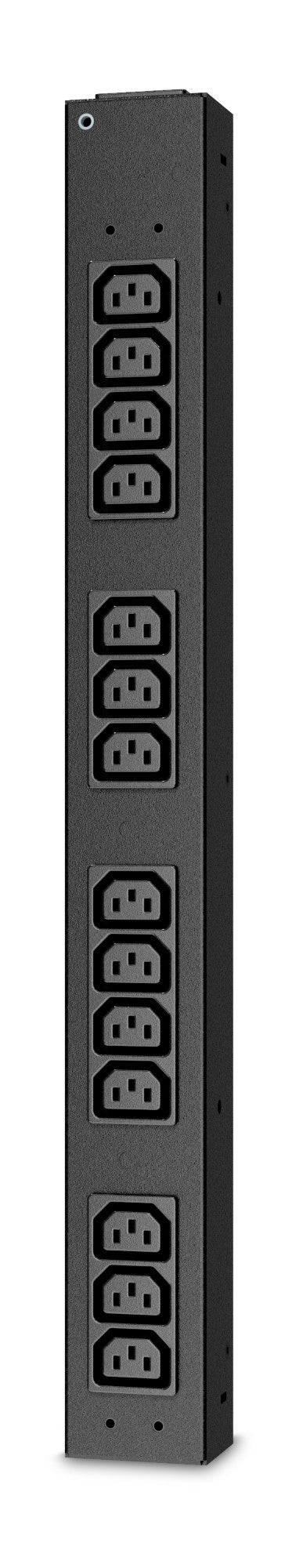

The APC AP6003A NetShelter Basic Rack PDU is a half height, Zero U vertical rack power distribution unit with 14 IEC C13 outlets. It accepts 100-240V input at up to 20A, or 16A at 220-240V, making it suited to distributing power to servers, switches and other IT equipment in standard racks.

This basic (non-metered, non-switched) PDU uses a compact vertical form factor that keeps rack space free for equipment. The input connection is an IEC 60320 C20 plug, and a toolless mounting kit is included for quick installation.

Features

- 14 C13 outlets for extensive power distribution from a single unit
- Compact half height Zero U design for flexible rack installation
- Supports 100V to 240V power distribution up to 20A
- Toolless mounting kit included for quick setup

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Basic
- Outlets: 14 x IEC 60320 C13
- Input connector: IEC 60320 C20 plug
- Input rating: 100-240V/20A, 220-240V/16A
- Form factor: 0U / Zero U, vertical mounting
- Dimensions: height 20.6 in, width 2.2 in, depth 1.9 in
- Weight: approx. 4.14 lb
- Colour: Black
- Certifications: UL / cUL Listed, RoHS

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of outlets does the AP6003A provide?
A: It provides 14 IEC 60320 C13 outlets, which suit most servers, switches and other IT equipment using standard C13 power cords.

Q: What input connector does this PDU use?
A: The input is an IEC 60320 C20 plug, so it requires a power cord with a C19 connector at the PDU end.

Q: What input voltage and current does it support?
A: It supports 100-240V at up to 20A, and 220-240V at up to 16A.

Q: Is this a metered or switched PDU?
A: No. The AP6003A is a basic PDU, which means it distributes power without metering or remote outlet switching.

Q: How is the AP6003A mounted in a rack?
A: It is a Zero U vertical unit and ships with a toolless mounting kit, so it mounts alongside equipment without using any rack unit space.
