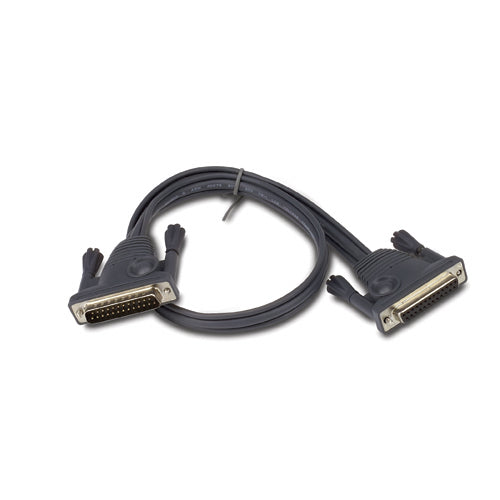

• APC AP5263 KVM daisy-chain cable, 1.8m black DB-25 serial with metallic connectors
1 1

APC

APC AP5263 | NetShelter KVM Daisy-Chain Cable, 1.8m (6 ft)

APC AP5263 | NetShelter KVM Daisy-Chain Cable, 1.8m (6 ft)

Authorised APC Partner

AP5263

Stock Status: Enquire

$153.95 inc. GST
$139.95 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP5263 KVM daisy-chain cable, 1.8m (6 ft), links compatible APC NetShelter KVM switches so multiple servers can be managed from a single keyboard, monitor and mouse. It uses a SUB-D 25 male RS232 connector on one end and a SUB-D 25 female RS232 connector on the other, making it suited to expanding an existing KVM setup in a server rack.

This is a 0U cable with a black finish that takes up no rack space, and the 1.8m (6 ft) length gives enough reach to connect adjacent KVM switches in the same rack. It is intended for use with APC KVM switches and is RoHS compliant.

Features

- Manage multiple servers from a single keyboard, monitor and mouse
- Daisy-chains compatible APC KVM switches
- 0U cable that takes no rack space
- Black finish
- 1.8 m (6 ft) length for connecting adjacent KVM switches

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Product type: KVM daisy-chain cable
- Cable length: 1.8 m (6 ft)
- Connector A: SUB-D 25 male RS232
- Connector B: SUB-D 25 female RS232
- Colour: Black
- Rack units: 0U
- Mounting: Rack-mounted
- Compatibility: APC KVM switches
- Net weight: 0.11 kg
- RoHS compliant

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What is the APC AP5263 used for?
A: It is a daisy-chain cable for linking compatible APC NetShelter KVM switches, allowing several servers to be controlled from one keyboard, monitor and mouse.

Q: What connectors does the AP5263 use?
A: One end has a SUB-D 25 male RS232 connector and the other end has a SUB-D 25 female RS232 connector.

Q: How long is this cable?
A: The cable is 1.8 m (6 ft) long.

Q: Will it take up rack space?
A: No. It is a 0U cable, so it does not occupy any rack units.

Q: Is it compatible with APC KVM switches?
A: Yes. It is designed for use with compatible APC KVM switches to daisy-chain them together.
