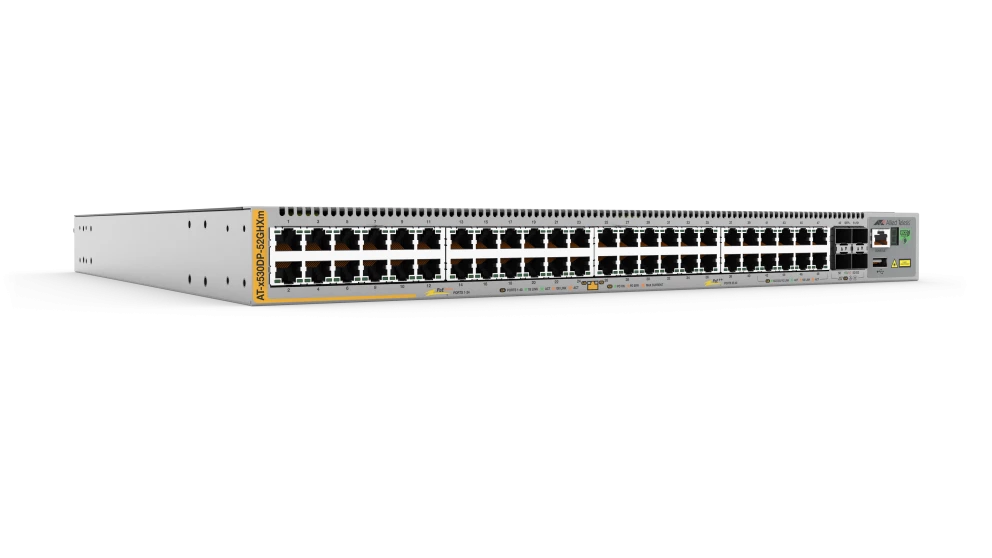

• Gray metal allied telesis at-x530dp-52ghxm-e01 multi-gig poe++ stackable switch with multiple ethernet ports and yellow label
1 1

Allied Telesis

Allied Telesis AT-x530DP-52GHXm-E01 | x530DP 52-Port Multi-Gig PoE++ Stackable L3 Switch, 4x SFP+

Allied Telesis AT-x530DP-52GHXm-E01 | x530DP 52-Port Multi-Gig PoE++ Stackable L3 Switch, 4x SFP+

AT-x530DP-52GHXm-E01

Stock Status: Enquire

$6,647.58 AUD
$6,647.58 AUD
$6,647.58 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Allied Telesis x530DP 52-port stackable Layer 3 switch is engineered for high-density enterprise wiring closets and campus distribution deployments demanding flexible PoE power delivery across multiple device types. It combines 24 Gigabit PoE+ ports, 16 Gigabit PoE++ ports, and 8 Multi-Gigabit (100M/1G/2.5G/5G) PoE++ ports to simultaneously power Wi-Fi 6/6E access points, IP cameras, VoIP phones, and high-draw IoT devices — all with four 10G SFP+ uplinks for fast backbone connectivity. Dual hot-swap power supplies ensure mission-critical uptime without scheduled downtime.

As a full Layer 3 switch, the x530DP supports advanced routing, VLAN segmentation, QoS, and Allied Telesis VCStack stacking technology for simplified multi-switch management and resilience. The 'DP' designation confirms dual PSU capability, making it ideal for environments requiring redundant power. Order the AT-x530DP-52GHXm-E01 today from iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- VCStack stacking technology — manage multiple switches as a single logical unit for simplified operations and resilience
- Multi-Gigabit PoE++ (2.5G/5G) ports future-proof Wi-Fi 6/6E AP deployments and high-bandwidth surveillance cameras
- IEEE 802.3bt PoE++ delivers up to 90W per port for PTZ cameras, digital signage, and emerging powered devices
- Full Layer 3 routing (static, RIP, OSPF) enables efficient inter-VLAN routing without a dedicated router
- Dual hot-swap PSUs provide redundant power for 24/7 mission-critical environments with zero-downtime PSU replacement
- Advanced QoS and traffic prioritisation ensures voice and video traffic maintain low latency across the network
- Comprehensive security features including 802.1X port authentication, MAC-based ACLs, and DHCP snooping
- SNMP, CLI, and web GUI management with Allied Telesis Vista Manager EX integration for network visualisation
- Energy-efficient design with per-port PoE power scheduling and power monitoring

Warranty

Allied Telesis provides a structured hardware warranty for products purchased after January 1, 2024, through approved sources such as IP Trading. Warranty terms vary by product class and are valid for purchases made in Australia and other supported regions.
Warranty Coverage Options:
• 2-Year Warranty: Standard coverage for most entry-to-mid-tier Allied Telesis hardware.
• 5-Year Warranty: Applies to selected enterprise-grade models.
• Limited Lifetime Warranty: Offered on eligible products for the operational life of the unit, with support ending five (5) years after the product’s official End-of-Sale (EOS) date.
Extended Warranty Options:
IP Trading offers tailored extended coverage and support solutions for Allied Telesis products. Speak to our team to customise a warranty plan that suits your business requirements.
https://www.alliedtelesis.com/au/en/warranty-july-2024-onwards

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24x 10/100/1000-T PoE+ ports (IEEE 802.3af/at)
- 16x 10/100/1000-T PoE++ ports (IEEE 802.3bt)
- 8x 100M/1G/2.5G/5G Multi-Gigabit PoE++ ports (IEEE 802.3bt)
- 4x 10G SFP+ uplink ports
- Total port count: 52 (48 copper + 4 SFP+)
- Layer 3 switching with hardware-assisted routing
- VCStack stacking support for multi-switch aggregation
- Dual hot-swap redundant power supply bays
- High PoE budget supporting 802.3bt Class 8 devices (up to 90W per port on PoE++ ports)
- Fanless or active cooling (model dependent)
- Rackmount form factor (1U)

FAQs

Q: What is the difference between PoE+, PoE++, and Multi-Gigabit PoE++ on this switch?
A: The AT-x530DP-52GHXm features three tiers of PoE. The 24 PoE+ ports (802.3at) deliver up to 30W per port, suitable for standard IP cameras, VoIP phones, and basic Wi-Fi APs. The 16 PoE++ Gigabit ports (802.3bt) deliver up to 90W per port for high-draw devices like PTZ cameras and next-gen APs. The 8 Multi-Gigabit PoE++ ports (802.3bt) add speeds up to 5G over copper alongside 90W power delivery — ideal for Wi-Fi 6/6E access points that need both high throughput and high power.

Q: Can I stack multiple x530DP switches together?
A: Yes. The x530DP supports Allied Telesis VCStack technology, allowing multiple switches to be stacked and managed as a single logical device. This simplifies configuration, improves redundancy, and enables cross-stack link aggregation (LAG) for greater bandwidth and resilience.

Q: What routing protocols does the x530DP support at Layer 3?
A: As a full Layer 3 switch, the x530DP supports static routing, RIPv1/v2, OSPFv2/v3, and inter-VLAN routing. This allows it to replace a dedicated router in many enterprise access or distribution scenarios, reducing hardware costs and complexity.

Q: Why does this switch have dual hot-swap power supplies?
A: The dual hot-swap PSU design ('DP' in the model name stands for dual PSU) allows one power supply to fail or be replaced without interrupting switch operation. This is essential for mission-critical environments such as hospitals, data centres, manufacturing floors, and enterprise campuses that cannot tolerate unplanned downtime.

Q: Can I purchase the AT-x530DP-52GHXm-E01 in Australia with local support?
A: Yes. IP Trading (iptrading.com.au) stocks and sells Allied Telesis enterprise switches including the x530DP series for Australian businesses. We provide local pre-sales advice, competitive pricing, and access to Allied Telesis' ANZ support network. Contact us for volume pricing or deployment assistance.

Q: What management options are available for the x530DP?
A: The x530DP can be managed via CLI (SSH/Telnet), web GUI, SNMP v1/v2c/v3, and Allied Telesis Vista Manager EX — a network management platform that provides topology visualisation, device monitoring, and automated configuration. It also supports sFlow for traffic analysis and RMON for performance monitoring.
