Eaton MBP3KI | HotSwap MBP Maintenance Bypass Panel, 3000VA, C20, 6x C13, 1x C19

Eaton MBP3KI | HotSwap MBP Maintenance Bypass Panel, 3000VA, C20, 6x C13, 1x C19

Authorised Eaton Partner

MBP3KI

In stock:23

$487.27 inc. GST
$442.97 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

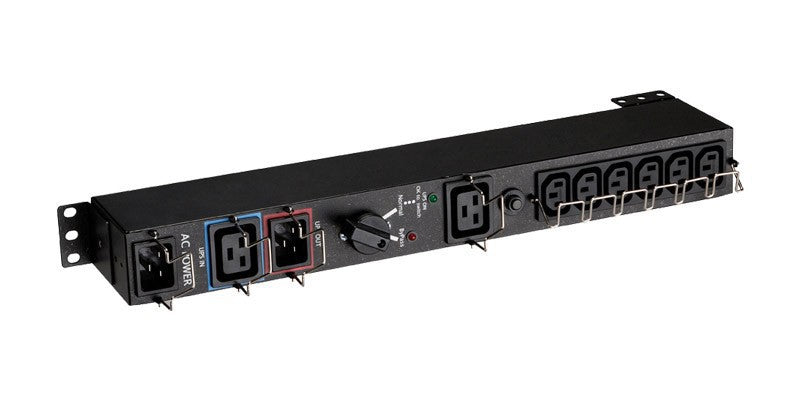

The Eaton HotSwap MBP maintenance bypass panel is a 1U rack-mountable PDU rated at 3000VA for single-phase Eaton UPS systems. This IEC model takes a single C20 input at 200-240V and provides six C13 outlets plus one C19 outlet, so it suits racks that run IEC-connected servers, network gear and storage.

The panel adds high availability to the power path. A connected UPS can be replaced, serviced or upgraded without interrupting power to the protected loads. It mounts in a rack, on a wall or on the back of a UPS, and mounting material is included. LED indication shows status at a glance.

Features

- Adds high availability to UPS systems up to 3000 VA
- Replace or service a connected UPS without interrupting power to protected devices
- Six C13 and one C19 outlet for IEC-connected equipment
- Mounts in a rack, on a wall or on the back of a UPS
- LED indication
- Mounting material included

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- VA rating: 3000 VA
- Input: 1 x C20, 200-240V, single-phase
- Outlets: 6 x C13, 1 x C19 (7 outlets with earth pin)
- Form factor: 1U, 19 inch (482.6 mm) rack-mountable
- Mounting: rack, wall or UPS-back, horizontal or vertical
- Dimensions: 439 mm W x 76.5 mm D x 50 mm H
- Weight: 1.9 kg
- Operating temperature: 0 to 40 C
- Colour: Black
- Indication: LED
- Switchable outlets: No
- SNMP / Ethernet / serial interface: No
- Certification: CE

FAQs

Q: What UPS systems can the Eaton MBP3KI be used with?
A: It is designed for single-phase Eaton UPS systems up to 3000 VA with a 200-240V supply.

Q: What connectors does this maintenance bypass panel use?
A: It has one C20 input and provides six C13 outlets and one C19 outlet, all with earth pin.

Q: Can I replace my UPS without shutting down the connected equipment?
A: Yes. The bypass panel lets a connected UPS be replaced, serviced or upgraded while the protected loads stay powered.

Q: How can the MBP3KI be installed?
A: It is a 1U, 19 inch unit that can be mounted in a rack, on a wall or on the back of a UPS. Mounting material is supplied.

Q: Does it offer remote monitoring or switchable outlets?
A: No. It has LED indication only, with no SNMP, Ethernet or serial interface and no outlet control.

Q: What is its maximum power rating?
A: It is rated at 3000 VA at 200-240V single-phase input.
