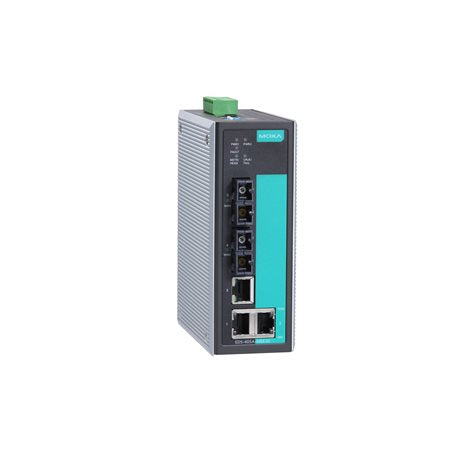

Moxa EDS-405A-PTP Entry-Level Managed Ethernet Switch With 5 10/100Baset(X) Ports, Hardware-Based Ieee 1588 Ptpv2 Protocol Support, -10 C To 60 C Operating Temperature

The Moxa EDS-405A-PTP is an entry-level managed Ethernet switch, featuring 5 10/100BaseT(X) ports. It supports the hardware-based IEEE 1588 PTPv2 protocol for precise time synchronization in industrial networks. Designed to perform reliably in challenging environments, this switch operates in temperatures ranging from -10°C to 60°C. Ideal for applications requiring accurate network timing and robust performance, the EDS-405A-PTP ensures efficient data communication and network stability for industrial automation systems.

REQUEST A QUOTE today, and let us provide you with a prompt and professional response tailored just for you. Experience the highest standard of service at unbeatable prices.

Moxa EDS-405A-PTP Entry-Level Managed Ethernet Switch With 5 10/100Baset(X) Ports, Hardware-Based Ieee 1588 Ptpv2 Protocol Support, -10 C To 60 C Operating Temperature


  • Entry-level managed Ethernet switch
  • Supports 5 10/100BaseT(X) ports
  • Hardware-based IEEE 1588 PTPv2 protocol support for precise time synchronization
  • Durable design with an operating temperature range of -10°C to 60°C
  • Advanced network management features
  • Rugged design suitable for industrial applications
  • Easy installation and setup
  • High reliability and performance

Technical Specifications

  • Model: EDS-405A-PTP
  • Ports: 5 10/100BaseT(X) ports
  • Protocol: Hardware-based IEEE 1588 PTPv2
  • Operating Temperature: -10°C to 60°C
  • Power Input: 12/24/48 VDC, redundant dual inputs
  • Power Consumption: Maximum 6.4 W
  • Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
  • Weight: Approximately 815 g (1.8 lb)
  • Mounting: DIN-rail mounting
  • Management: SNMP v1/v2c/v3, RMON, HTTPS, Telnet, SSH, and Web Console
  • Certifications: CE, FCC, UL/cUL and more
  • MTBF: 1,352,000 hrs

Frequent Ask Questions

  • What are the key features of the Moxa EDS-405A-PTP Entry-Level Managed Ethernet Switch?

    The Moxa EDS-405A-PTP features 5 10/100BaseT(X) ports, hardware-based IEEE 1588 PTPv2 protocol support, and an operating temperature range of -10°C to 60°C. It also includes essential managed switch functionalities like VLAN, QoS, port mirroring, and redundancy for improved network performance and reliability.

  • What is IEEE 1588 PTPv2 protocol support?

    IEEE 1588 PTPv2 (Precision Time Protocol version 2) is a protocol used to synchronize clocks throughout a computer network. The hardware-based support in the Moxa EDS-405A-PTP ensures precise time synchronization essential for applications requiring high timing accuracy such as industrial automation, telecommunications, and financial services.

  • What type of environments is the Moxa EDS-405A-PTP designed for?

    The Moxa EDS-405A-PTP is designed for industrial environments given its wide operating temperature range of -10°C to 60°C and features that enhance network reliability and performance. It is suitable for applications in factory automation, energy, transportation, and other rugged environments.

  • Can this switch operate in extreme temperatures?

    Yes, the Moxa EDS-405A-PTP can operate within a temperature range of -10°C to 60°C, which makes it suitable for moderate industrial settings.

  • Does the Moxa EDS-405A-PTP support redundancy features?

    Yes, the Moxa EDS-405A-PTP supports network redundancy features such as STP/RSTP, Moxa Turbo Ring and Turbo Chain, allowing for quick recovery times in the event of network failures, which ensures continuous network availability.

  • What management features does the EDS-405A-PTP include?

    The EDS-405A-PTP includes several management features such as web-based management, SNMP v1/v2c/v3, Telnet, and CLI for easy configuration and monitoring. Additionally, it supports advanced features such as IGMP snooping, VLAN, QoS, and bandwidth management.

  • What are the security features available on this switch?

    The Moxa EDS-405A-PTP provides various security features including port-based access control, user authentication, IP security, and supportive IEEE 802.1X to ensure secure data transmission and unauthorized access prevention.
