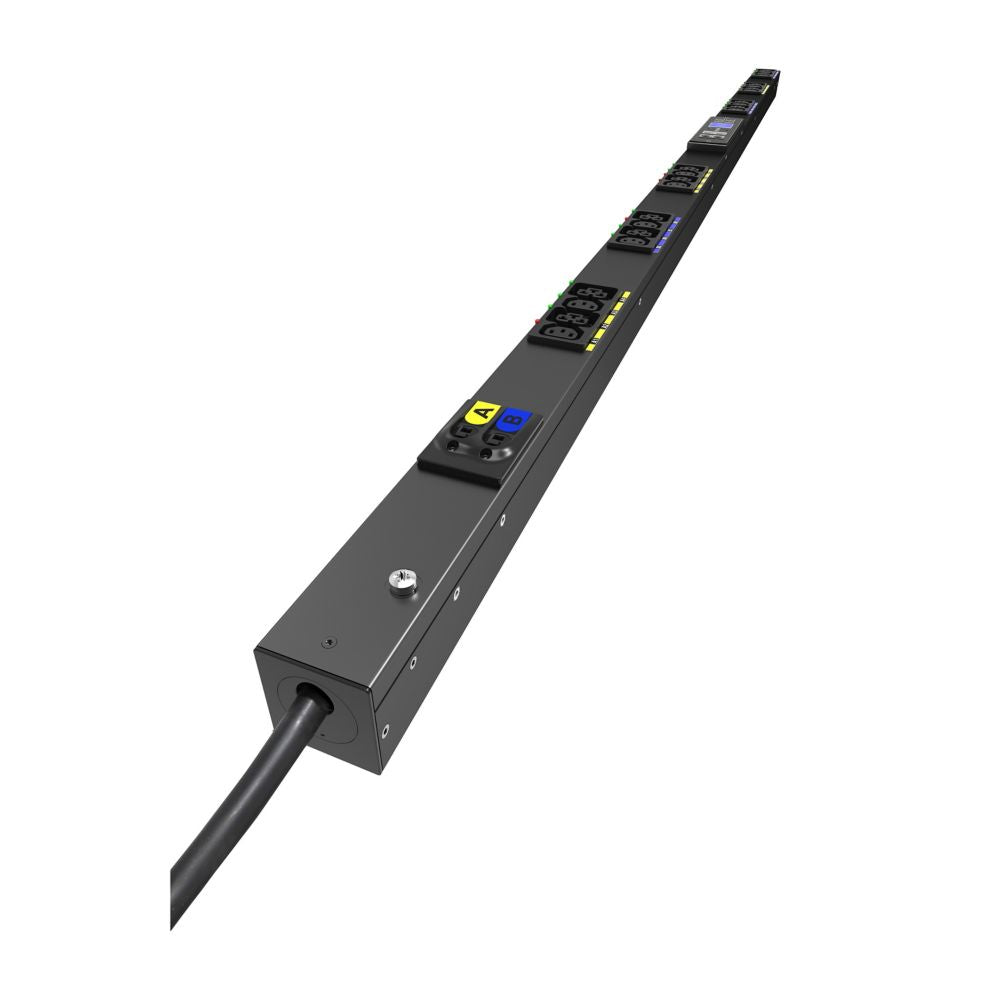

• Eaton EVSWF132A G4 Series PDU with 24 AC outlets and black metal power strip
1 1

Eaton

Eaton EVSWF132A | Rack PDU G4 Switched 0U, 24 Outlets, 32A 1-Phase

Eaton EVSWF132A | Rack PDU G4 Switched 0U, 24 Outlets, 32A 1-Phase

Authorised Eaton Partner

EVSWF132A

$2,643.19 inc. GST
$2,402.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Eaton EVSWF132A is a switched 0U vertical rack PDU from the Eaton Rack PDU G4 range, delivering 24 outlets (12 x C13 and 12 x C39) from a single-phase 32A IEC 60309 input. With a rated capacity of 7.4kW at 200-240V and a 3m input cord, it suits IT cabinets that need dense, high-capacity power distribution with per-outlet control.

Outlet-level on/off, reboot and sequenced start-up control let you manage connected equipment remotely, while billing-grade input measurement supports capacity planning and energy reporting. The versatile C39 outlets accept both C14 and C20 plugs, and a gigabit network card with two ports, hot-swap network module and cascading support make it straightforward to integrate into existing monitoring and DCIM environments.

Features

- Outlet-level control: on/off, reboot and sequential start-up
- 1% IEC Class 1 billing-grade measurement accuracy
- Versatile C39 outlets support C14 or C20 power cord plugs
- High retention outlets support P-Lock power cords
- Cybersecurity standards UL 2900-1 and IEC 62443-4-2
- Hot-swap network control module
- Network cascading of up to 32 PDUs via network loop
- Power sharing between two network modules keeps PDU data and sensors accessible
- Optional temperature and humidity sensor support
- Remote site management

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Type: Switched rack PDU, 0U vertical, 39U
- Outlets: 24 total, 12 x C13 and 12 x C39 (C39 accepts C14 or C20 plugs)
- Input: IEC 60309, 32A, single-phase, 200-240V
- Rated power: 7.4kW
- Input cord length: 3m
- Dimensions (L x H x W): 1730 x 53 x 52 mm
- Weight: 4.5 kg
- Network card: gigabit with 2 x Gb ports
- Protocols: RestAPI, Modbus TCP, SNMP, LDAP, HTTPS
- Measurement accuracy: 1% IEC Class 1 billing grade
- Certifications: IEC 62368-1, CE, UKCA, EAC, RoHS, WEEE, EMC
- EAN: 3553340697180

FAQs

Q: What outlet types does the Eaton EVSWF132A provide?
A: It provides 24 outlets in total: 12 x C13 and 12 x C39. The C39 outlets accept both C14 and C20 plugs.

Q: Can I control individual outlets remotely?
A: Yes. This is a switched PDU, so each outlet can be turned on, off or rebooted remotely, and sequential start-up reduces inrush current when powering up equipment.

Q: What input supply does this PDU require?
A: It requires a single-phase 32A IEC 60309 supply at 200-240V, supporting up to 7.4kW, and ships with a 3m input cord.

Q: How does it connect to the network for monitoring?
A: It includes a gigabit network card with two Gb ports and supports RestAPI, Modbus TCP, SNMP, LDAP and HTTPS. Up to 32 PDUs can be cascaded on a network loop.

Q: How does this differ from a monitored-only PDU?
A: This model adds per-outlet switching and reboot control on top of input power measurement, whereas monitored-only units report power data but cannot switch individual outlets.

Q: Does it support environmental sensors?
A: Yes, an optional temperature and humidity sensor can be connected for environmental monitoring of the cabinet.
