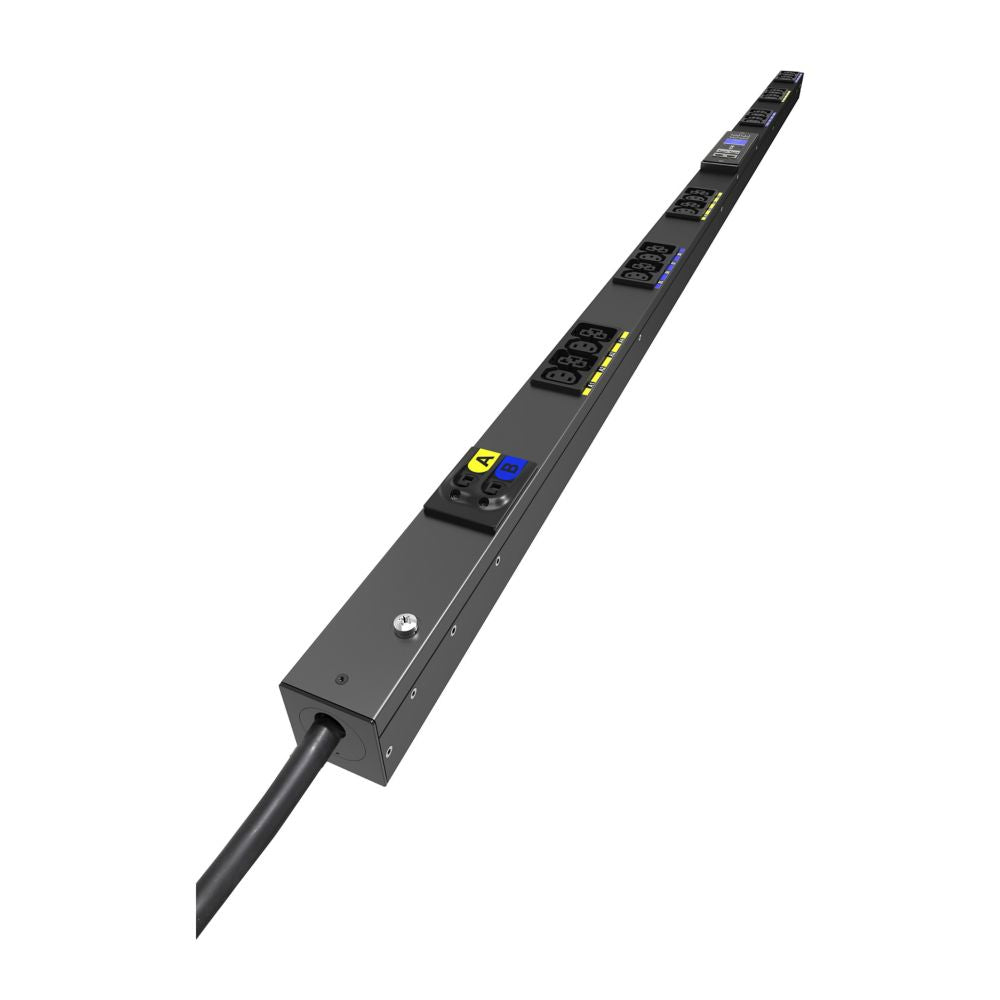

• Eaton EVMIF132A 39U PDU black metal power strip with 24 outlets and indicator lights
1 1

Eaton

Eaton EVMIF132A | Rack PDU G4 Metered 0U, 24 Outlets, 32A IEC 60309

Eaton EVMIF132A | Rack PDU G4 Metered 0U, 24 Outlets, 32A IEC 60309

Authorised Eaton Partner

EVMIF132A

Stock Status: Enquire

$1,544.86 inc. GST
$1,404.42 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton EVMIF132A is a vertical 0U single-phase metered-input rack PDU from the Eaton Rack PDU G4 range, built for data centre and server room racks up to 39U. It is fed by a 32A IEC 60309 plug with a 3m cord and provides 24 outlets (12 x C13 and 12 x C39) at up to 7.4 kW on 200-240V supply, with an LCD display for local power readings.

A hot-swap network management module adds remote power monitoring over SNMP and HTTPS, with 4 x RJ-45 Ethernet ports and 2 x USB ports. The aluminium housing, colour-coded outlets and included rack mounting accessories make deployment straightforward in dense, high-power rack environments.

Features

- Hot-swap network control module
- Metered input monitoring with local LCD display
- Colour-coded outlets for easier identification
- Network cascading: connect up to 32 PDUs via a network loop
- Power sharing between two network modules keeps PDU data and sensors accessible
- 1% IEC Class 1 billing-grade measurement accuracy
- Gigabit network card with 2 GbE ports

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Model code: PDU G4 MI 0U 309 32A 1P 12xC13,12xC39
- Metered input, single-phase, 0U vertical mounting, 39U rack capacity
- 24 outlets: 12 x C13 and 12 x C39 (C13/C19 combo)
- Input: IEC 60309 32A plug, 200-240V, 50/60Hz, 3m cord
- Maximum power: 7.4 kW (7400 W)
- LCD display
- Network: 4 x RJ-45 Ethernet ports, 2 x USB ports
- Management protocols: SNMP, HTTPS
- Dimensions: 1730 mm length x 53 mm height x 52 mm width
- Weight: 3.8 kg, aluminium housing, black
- Operating temperature: 0-60°C
- Includes rack mounting accessories, quick start guide and safety instructions

FAQs

Q: What input supply does the Eaton EVMIF132A require?
A: It requires a single-phase 200-240V, 50/60Hz supply via a 32A IEC 60309 connector. The PDU ships with a 3m input cord fitted with the IEC 60309 plug.

Q: What outlets does this PDU provide?
A: It provides 24 outlets in total: 12 x C13 and 12 x C39 (C13/C19 combo). The outlets are colour-coded for easier identification.

Q: Can this PDU be monitored remotely?
A: Yes. A hot-swap network management module provides remote monitoring over SNMP and HTTPS via the RJ-45 Ethernet ports. The PDU also has a local LCD display for on-site readings.

Q: What does metered input mean on this model?
A: Metered input means the PDU measures power at the input, so you can see overall load on the LCD display and over the network. It does not provide per-outlet switching.

Q: How is the EVMIF132A mounted?
A: It is a 0U vertical PDU intended for racks up to 39U. It mounts alongside the equipment so it takes no rack space, and rack mounting accessories are included.

Q: What is the maximum power this PDU can deliver?
A: The maximum power rating is 7.4 kW (7400 W), based on the 32A input at 200-240V.
