• Eaton EBAB00 ePDU basic black power distribution unit with 42 AC outlets
1 1

Eaton

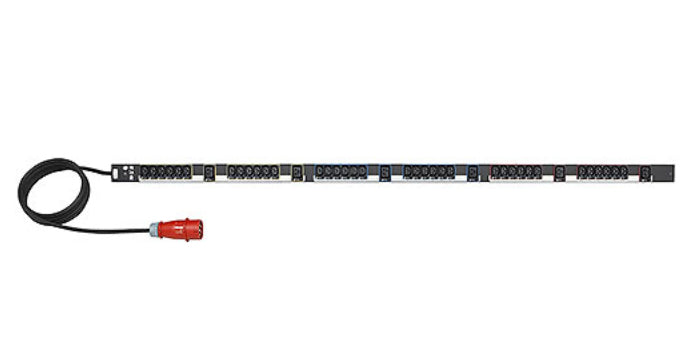

Eaton EBAB00 | ePDU G3 Basic Rack PDU, 0U, 3-Phase 16A, 36x C13, 6x C19

Eaton EBAB00 | ePDU G3 Basic Rack PDU, 0U, 3-Phase 16A, 36x C13, 6x C19

Authorised Eaton Partner

EBAB00

$682.99 inc. GST
$620.90 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire
End of life
This item has been replaced by EVBAF316X.

Description

The Eaton ePDU G3 Basic rack PDU is a vertical 0U three-phase power distribution unit with a 16A IEC 60309 input rated at 12 kW. It delivers 42 outlets in total, made up of 36 x IEC C13 and 6 x IEC C19, giving high-density power for servers, switches and storage in a full-height rack with 36U of outlet coverage.

This basic model is designed for cost-effective rack power distribution without metering or switching. Colour-coded outlet sections and branch circuits simplify load balancing, eGrip retention keeps standard IEC plugs secure, and hydraulic-magnetic circuit breakers with accidental trip protection safeguard connected equipment. The low-profile black chassis mounts using rear and side buttons or Eaton's variable mounting bracket, and is rated for operation up to 60 C.

Features

- eGrip plug retention that works with standard IEC plugs
- Colour-coded outlet sections and branch circuits for simple load balancing
- Hydraulic-magnetic circuit breakers with accidental trip protection
- Low-profile form factor, 52 mm wide x 53 mm deep
- 60 C operating temperature rating
- Rear and side button mounting plus variable mounting system

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- 0U vertical rack mount, 36U outlet coverage
- 42 outlets total: 36 x IEC C13 + 6 x IEC C19
- Input: 1 x IEC 60309 16A three-phase (346-415V, 50Hz)
- Rated capacity: 12 kW (16A three-phase)
- Basic PDU type (no metering or switching)
- Outlet retention: eGrip cable retention
- Circuit protection: hydraulic-magnetic circuit breakers with accidental trip protection
- Dimensions (H x W x D): 1604 x 52 x 53 mm
- Mounting: button mounting on rear and sides, variable mounting bracket
- Cable length: 3 m
- Colour: Black
- LED indicators: Yes
- Operating temperature: up to 60 C

FAQs

Q: What type of input does the Eaton EBAB00 use?
A: It has a single IEC 60309 16A three-phase input (346-415V, 50Hz) with a 3 m cable, rated for 12 kW.

Q: How many outlets and what types does it provide?
A: It provides 42 outlets in total: 36 x IEC C13 and 6 x IEC C19, suitable for servers, switches and other rack equipment.

Q: Does this PDU offer metering or remote switching?
A: No. The EBAB00 is a Basic model without metering or switching, intended for straightforward power distribution.

Q: How is the PDU mounted in the rack?
A: It is a 0U vertical unit that mounts using rear and side button mounting or Eaton's variable mounting bracket, with outlet coverage for 36U.

Q: How does it help prevent plugs coming loose?
A: eGrip retention holds standard IEC plugs securely in the outlets without needing specialised locking cords.

Q: Is it suitable for balancing loads across phases?
A: Yes. Colour-coded outlet sections and branch circuits make it easy to distribute equipment evenly across the three phases.
