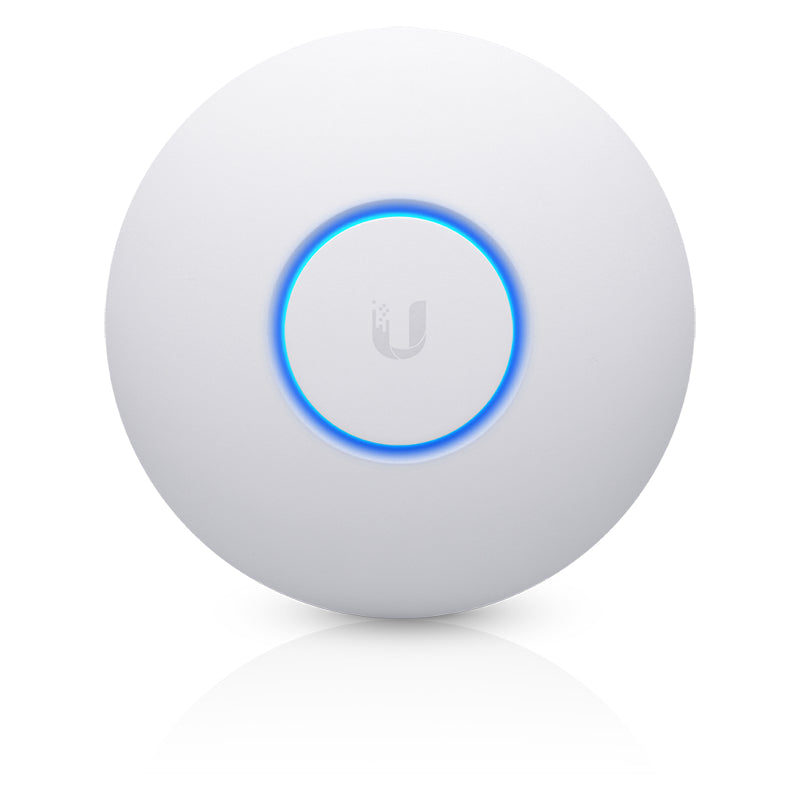

Ubiquiti UAP-NANOHD-3 | UniFi nanoHD Wi-Fi 5 Access Point, 4x4 MU-MIMO, 1.7 Gbps, 3-Pack

Ubiquiti UAP-NANOHD-3 | UniFi nanoHD Wi-Fi 5 Access Point, 4x4 MU-MIMO, 1.7 Gbps, 3-Pack

UAP-NANOHD-3

In stock:20

$884.24 inc. GST
$803.85 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The UniFi nanoHD is a compact 802.11ac Wave 2 enterprise access point built for high-density wireless deployments in offices, education, and hospitality environments. Delivering up to 1.7 Gbps on 5 GHz via 4x4 MU-MIMO and supporting 200+ concurrent clients per AP, the nanoHD packs serious performance into a low-profile ceiling-mount form factor. This 3-pack offers a cost-effective way to deploy scalable enterprise Wi-Fi across multiple zones or floors — note that PoE injectors are not included.

Managed through the UniFi Controller (on-premises or cloud) or the UniFi Network mobile app, these APs support multi-SSID, VLAN segmentation, guest portals, fast roaming, and wireless meshing out of the box. Powered via standard 802.3af PoE from any compatible switch, the nanoHD is a direct upgrade from the UAP-AC-PRO with no additional licensing required. Get it now at iptrading.com.au — authentic hardware, reliable service.

Features

- Compact 802.11ac Wave 2 design ideal for high-density enterprise, education, and hospitality environments
- 4x4 MU-MIMO on 5 GHz serves multiple clients simultaneously for maximum throughput efficiency
- Simultaneous dual-band operation: 5 GHz (up to 1.7 Gbps) + 2.4 GHz (up to 300 Mbps)
- Supports 200+ concurrent wireless clients per access point
- Compatible with any 802.3af PoE switch — no proprietary power equipment required
- Centrally managed via UniFi Controller (on-premises or cloud) with zero per-AP licensing
- Mobile management via UniFi Network app (iOS and Android)
- Supports wireless meshing, multiple SSIDs, guest access, VLAN segmentation, and fast roaming
- LED provisioning ring for easy device identification and status alerts during deployment
- Low-profile ceiling-mount form factor with included Lite Mount for discreet installation
- Direct upgrade path from UAP-AC-PRO with compatible PoE and mounting footprint
- 3-pack format delivers per-unit cost savings for multi-AP site deployments

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi Standard: 802.11ac Wave 2 (Wi-Fi 5)
- 5 GHz: 4x4 DL MU-MIMO, up to 1,733 Mbps (80 MHz channel)
- 2.4 GHz: 2x2 DL MU-MIMO, up to 300 Mbps (40 MHz channel)
- Spatial Streams: 6 total
- Max Concurrent Clients: 200+ per AP
- Coverage Area: ~140 m² (1,500 ft²) per AP
- Uplink: 1x RJ45 Gigabit Ethernet
- Power Method: 802.3af PoE (PoE injectors not included)
- Max Power Consumption: 10.5W
- Max TX Power: 26 dBm (5 GHz) / 23 dBm (2.4 GHz)
- Antenna Gain: 3 dBi (5 GHz) / 2.8 dBi (2.4 GHz)
- BSSIDs: 8 per radio
- Dimensions: ⌀160 × 32.7 mm
- Weight: 300 g (without mount) / 315 g (with mount)
- Mounting: Ceiling or wall (Lite Mount included)
- Pack Quantity: 3 access points

FAQs

Q: What is included in the UAP-NANOHD-3 3-pack?
A: The UAP-NANOHD-3 includes three UniFi nanoHD access points, each with a Lite ceiling mount. PoE injectors are not included — you will need a compatible 802.3af PoE switch or injectors purchased separately.

Q: Can I buy the UAP-NANOHD-3 in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an authorised Australian B2B reseller of Ubiquiti hardware. The UAP-NANOHD-3 is available for immediate ordering, backed by reliable fulfilment and local support.

Q: Does the UniFi nanoHD require a dedicated controller or licensing fees?
A: No per-AP licensing is required. The nanoHD is managed via the free UniFi Network application, which can run on-premises (self-hosted) or as a cloud-based controller via Ubiquiti's UniFi Cloud. There are no ongoing subscription fees for standard network management.

Q: Is the nanoHD suitable for high-density environments like open-plan offices or classrooms?
A: Yes. The nanoHD supports 200+ concurrent wireless clients per unit and uses 4x4 MU-MIMO on 5 GHz to serve multiple clients simultaneously. It is designed specifically for high-density enterprise deployments where multiple APs are deployed in close proximity.

Q: Is the UAP-NANOHD-3 an upgrade from the UAP-AC-PRO?
A: Yes. Ubiquiti positions the nanoHD as the recommended upgrade from the UAP-AC-PRO. It offers improved MU-MIMO performance (4x4 vs 3x3), a more compact form factor, and the same 802.3af PoE compatibility, making it a straightforward drop-in upgrade.

Q: What wireless features does the nanoHD support for enterprise deployments?
A: The nanoHD supports multiple SSIDs (up to 8 per radio), VLAN tagging, guest portal access, fast roaming (802.11r), wireless meshing, band steering, and airtime fairness — all manageable from a single UniFi Controller instance across multiple sites.
