Teltonika

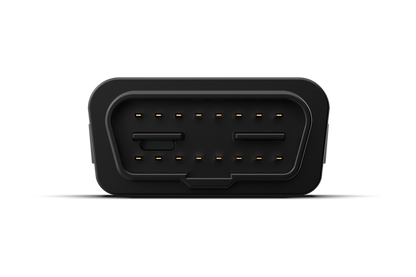

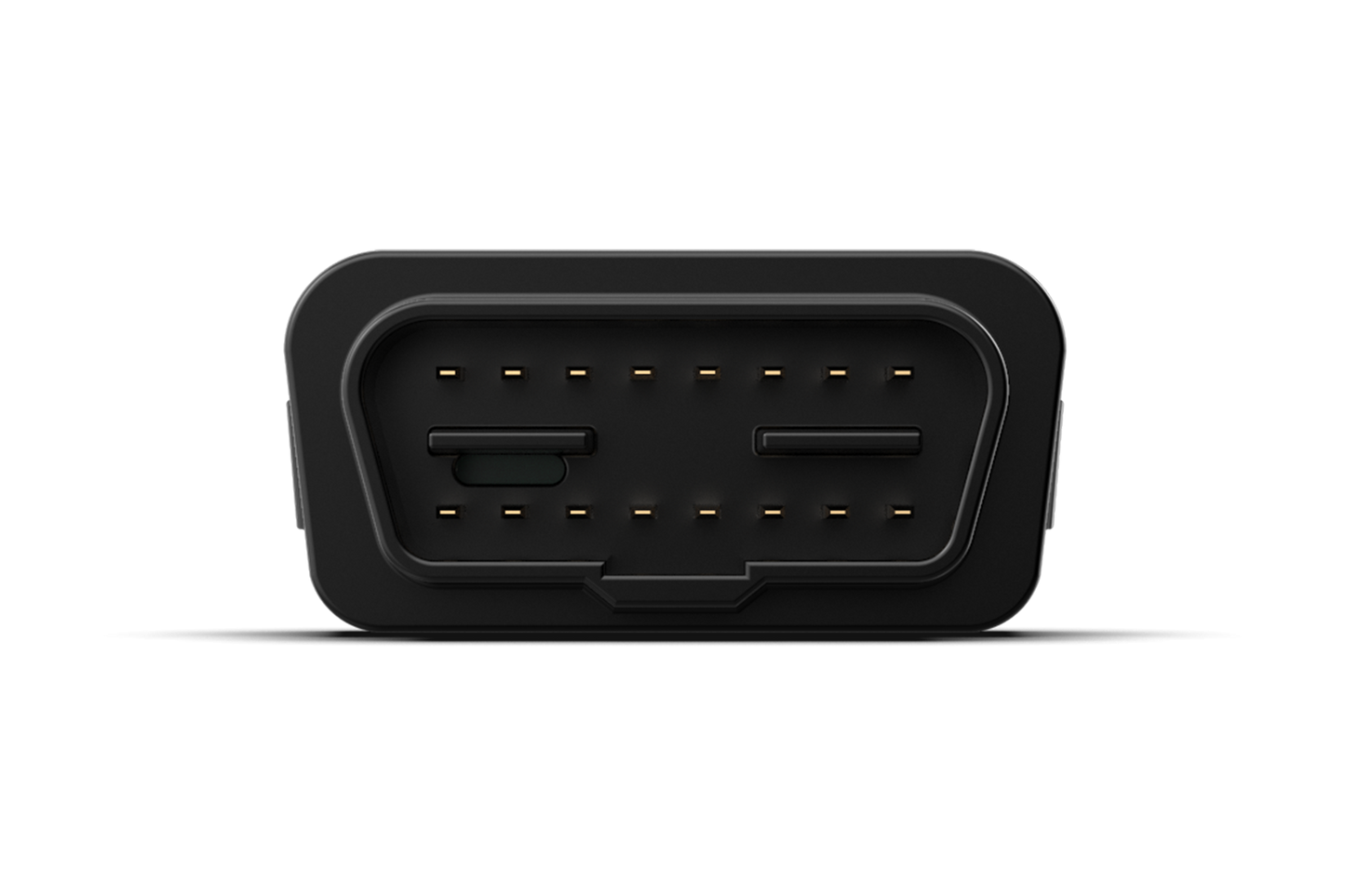

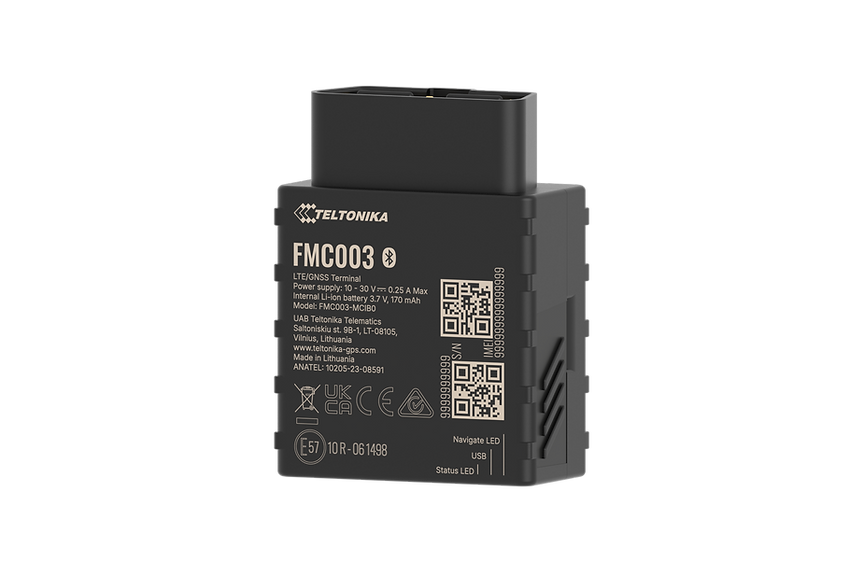

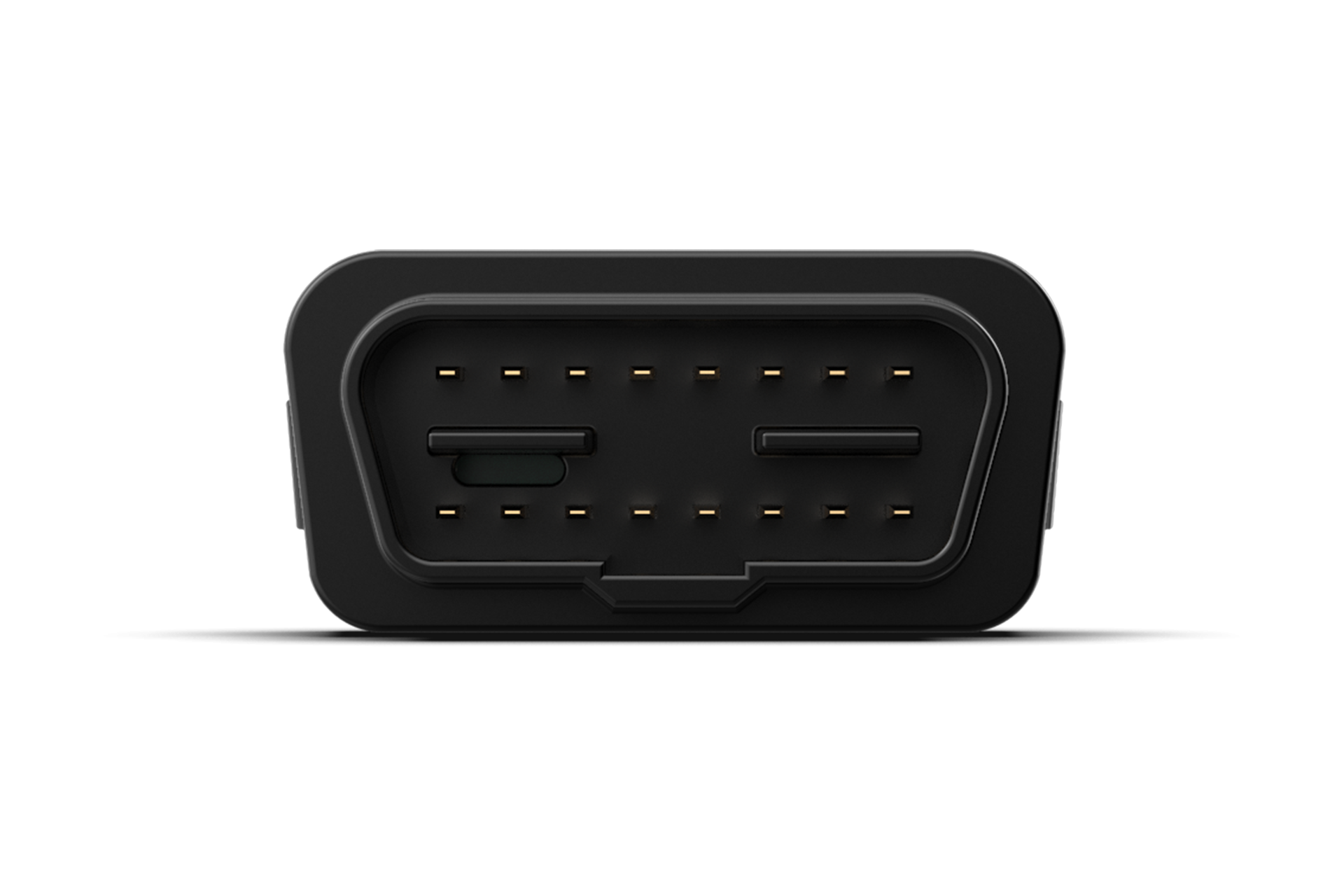

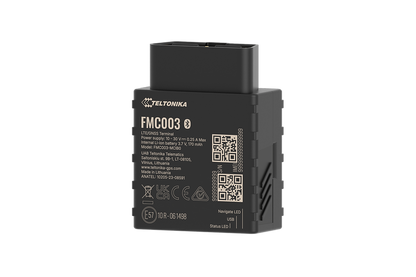

Teltonika FMC003WMNW01 | FMC003 OBD Plug-and-Track GNSS/LTE Vehicle Tracking Terminal

Teltonika FMC003WMNW01 | FMC003 OBD Plug-and-Track GNSS/LTE Vehicle Tracking Terminal

FMC003WMNW01

In stock:19

$184.69 inc. GST
$167.90 ex. GST
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Teltonika FMC003 is an advanced plug-and-play OBDII vehicle tracking terminal delivering real-time GPS/GNSS location with LTE Cat 1 connectivity and 2G GSM fallback. Designed for fleet management, insurance telematics, car rental, and driver logbook applications, the FMC003 connects directly to any standard OBDII port — no wiring required — and reads OEM data including real fuel level, odometer, and up to 32 onboard vehicle parameters via HS/MS/SW CAN and K-line protocols. Bluetooth 4.0 LE support enables connection to external sensors, beacons, and barcode scanners, while the built-in accelerometer enables Green Driving scoring, Crash Detection, Towing Detection, and Over Speeding alerts.

The FMC003 supports multi-constellation GNSS (GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS) with an internal high-gain antenna and up to -165 dBm receiver sensitivity for reliable positioning. Multiple power-saving sleep modes, overvoltage protection, and a 170 mAh backup battery ensure operational resilience across a wide voltage range of 10–30 V DC and temperatures from -40°C to +85°C. Remote management is supported via FOTA Web, Teltonika Configurator, and the FMBT mobile app. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- Plug-and-Play OBDII installation — no wiring, tools, or vehicle modification required
- LTE Cat 1 with automatic 2G GSM/GPRS fallback for broad Australian network coverage
- Multi-constellation GNSS (GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS) with up to -165 dBm sensitivity
- OEM PID reading via OBD port: real fuel level, odometer, and up to 32 vehicle parameters
- Bluetooth 4.0 LE for external sensors, beacons, barcode scanner, and wireless configuration
- Built-in accelerometer: Green Driving, Crash Detection, Towing Detection, Unplug Detection, Over Speeding
- Automatic and manual geofencing with configurable zone alerts
- Jamming detection, GNSS Fuel Counter, and Excessive Idling monitoring
- Multiple sleep modes (GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep) for power efficiency
- Remote management via FOTA Web; configuration via Teltonika Configurator (USB/Bluetooth) and FMBT app
- Secured SMS command support for remote configuration
- Wide operating temperature range: -40°C to +85°C; overvoltage protection; IP41 rated
- 170 mAh Li-Ion internal backup battery for continuity during brief power interruptions
- Time synchronisation via GPS, NITZ, and NTP

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Connectivity: LTE Cat 1 with 2G GSM/GPRS fallback
- GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
- GNSS Receiver Sensitivity: Up to -165 dBm (internal high-gain antenna)
- Bluetooth: 4.0 + LE (internal antenna)
- Connection: OBDII Socket (Plug-and-Play, no wiring required)
- OBD Interface: HS CAN, MS CAN, SW CAN, K-line
- OBD Data: OEM Fuel Level, Odometer, up to 32 onboard vehicle parameters
- OBD Protocols: ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN (11/29-bit), ISO 14229 (UDS), J1939, J2819 (VW TP2.0)
- SIM: Micro-SIM slot
- USB: Micro-USB 2.0
- Memory: 128 MB internal flash
- Backup Battery: 170 mAh Li-Ion 3.7 V (0.63 Wh)
- Input Voltage: 10–30 V DC
- Power Consumption: <3 mA (Ultra Deep Sleep) / <33 mA (nominal) / <2 A (peak)
- Dimensions: 67.2 x 49.6 x 25 mm (L x W x H)
- Weight: 63 g
- Operating Temperature (without battery): -40°C to +85°C
- Ingress Protection: IP41
- LED Indication: 2 status LEDs

FAQs

Q: How is the FMC003 installed in a vehicle?
A: The FMC003 is a true plug-and-play device — it connects directly to the vehicle's standard OBDII diagnostic port, requiring no wiring, tools, or modification. It is compatible with any vehicle fitted with an OBDII socket and draws power directly from the port.

Q: What OBD data can the FMC003 read from a vehicle?
A: The FMC003 can read OEM fuel level, odometer, and up to 32 onboard vehicle parameters (PIDs) via HS CAN, MS CAN, SW CAN, and K-line interfaces. Teltonika provides a supported vehicle and data list so you can confirm readable parameters for specific makes and models before deployment.

Q: Does the FMC003 support 4G LTE networks in Australia?
A: Yes. The FMC003 operates on LTE Cat 1 for 4G data connectivity and automatically falls back to 2G GSM/GPRS where 4G coverage is unavailable, ensuring broad nationwide network compatibility across Australian carrier networks.

Q: What Bluetooth capabilities does the FMC003 have?
A: The FMC003 supports Bluetooth 4.0 + LE, enabling connection to external sensors (temperature, humidity), Bluetooth beacons, and the Inateck Barcode Scanner. Bluetooth can also be used for firmware updates and device configuration via the Teltonika Configurator or the FMBT mobile app.

Q: What fleet and driver behaviour features are built in?
A: The FMC003 includes a built-in accelerometer that supports Green Driving scoring, Over Speeding detection, Crash Detection, Towing Detection, and Unplug Detection. It also supports automatic and manual geofencing, jamming detection, GNSS Fuel Counter, and Excessive Idling detection — all configurable remotely.

Q: Can I purchase the Teltonika FMC003 in Australia with local support?
A: Yes. IP Trading Australia stocks the Teltonika FMC003 and ships Australia-wide with fast dispatch and expert pre- and post-sale technical support. Visit iptrading.com.au to order or contact our team for fleet volume pricing enquiries.
