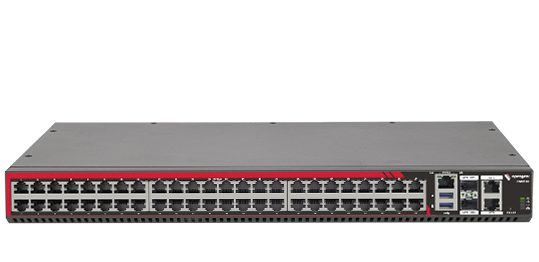

• Black and red opengear cm8148-10g-usb-lsp console manager with 48 ports usb-c and sleek metallic finish back view
1 1

OPENGEAR

OPENGEAR CM8148-10G-USB-LSP | 48-Port Console Manager, Dual 10GbE SFP+, 8x USB-C, TPM 2.0, Docker, 1 Yr Foundation Support

OPENGEAR CM8148-10G-USB-LSP | 48-Port Console Manager, Dual 10GbE SFP+, 8x USB-C, TPM 2.0, Docker, 1 Yr Foundation Support

CM8148-10G-USB-LSP

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Opengear CM8148-10G-USB is a high-density 1U rack-mountable Console Manager delivering Smart Out-of-Band™ management for critical data centre and enterprise infrastructure. It provides 48 selectable serial ports (RS-232, software-selectable X1/X2 pinout), dual 10GbE SFP+ uplinks, dual 1GbE RJ-45 interfaces, 8x USB-C and 2x USB-A host ports, an ARM 1.6GHz dual-core CPU, 2GB RAM, 32GB flash storage, hardware TPM 2.0 for secure boot and encryption, Docker container support, and Lighthouse Service Portal enablement for centralised at-scale management — all backed by a 4-year hardware warranty.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target. Need it fast? iptrading.com.au delivers across Australia — shop now.

Features

- 48 selectable serial ports with software-selectable RS-232 pinout (X1/X2) — no adapters needed for Cisco-style consoles
- Dual 10GbE SFP+ uplinks for direct high-speed network connectivity alongside dual 1GbE RJ-45 interfaces
- 8x USB-C and 2x USB-A host ports for external storage or additional console device management
- Hardware TPM 2.0 for secure boot, data encryption, and hardened appliance security
- Docker container and Python scripting support for on-device data centre automation
- REST API for seamless integration with infrastructure automation and orchestration platforms
- Dual AC power supplies with independent monitoring and automatic failover for high availability
- Lighthouse Service Portal Enabled — centralised at-scale management across distributed sites
- Smart Out-of-Band™ management enables resilient remote access even during primary network outages
- Passive cooling and <25W typical power draw for a lower total cost of ownership
- 4-year hardware warranty included for long-term investment confidence
- Includes 1 Year Opengear Foundation Support (OG-FNTS-CM8100-1YR) — 8x5 APAC/Americas/EMEA coverage, next-business-day RMA in Australia, and ongoing firmware updates with 95% SLA compliance

Warranty

1 Year Opengear Foundation Support

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial Ports: 48 selectable RS-232 ports, software-selectable pinout X1 or X2
- Serial Port Speed: 50 to 230,400 bps
- Network Interfaces: 2x 10GbE SFP+ (NET1, NET2) + 2x 1GbE RJ-45 (NET3, NET4)
- USB Host Ports: 8x USB-C + 2x USB-A
- CPU: ARM 1.6GHz dual-core
- RAM: 2GB
- Storage: 32GB flash
- Security: Hardware TPM 2.0 (secure boot and data encryption)
- Containerisation: Docker support
- Power Supply: Dual AC with auto-failover, C14 IEC inlet
- AC Input: 100–240 VAC, 50/60 Hz
- Typical Power Draw: <25W
- Cooling: Passive
- Form Factor: 1U rack-mountable
- Operating Temperature: 5–50°C
- Operating Humidity: 5–90% RH
- MTBF: 150,000 hours
- Lighthouse Service Portal: Enabled
- Compliance: TAA Compliant
- Hardware Warranty: 4 years
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-CM8100-1YR)

FAQs

Q: What is included in this listing?
A: This listing includes the Opengear CM8148-10G-USB Console Manager hardware and 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR), sold together as a single SKU. The hardware also carries a 4-year manufacturer warranty.

Q: What does Opengear Foundation Support cover?
A: Foundation Support provides 8x5 regional technical assistance (8 AM–5 PM Mon–Fri) across APAC, Americas, and EMEA via phone, email, and portal. Initial response times are up to 15 minutes via portal and up to 30 minutes via email. Priority 1 (Critical) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target.

Q: What are the serial port capabilities of the CM8148-10G-USB?
A: The CM8148-10G-USB offers 48 selectable RS-232 serial ports with a software-selectable pinout (X1 or X2), eliminating the need for rollover adapters when connecting to Cisco-style consoles. Port speeds range from 50 to 230,400 bps.

Q: Does the CM8148-10G-USB support Docker and automation?
A: Yes. The unit includes Docker container support and Python scripting capabilities, enabling teams to deploy automation workflows and custom applications directly on the device. It also exposes a REST API for integration with third-party orchestration and automation tools.

Q: Can this unit be managed centrally across multiple sites?
A: Yes. The CM8148-10G-USB is Lighthouse Service Portal Enabled, allowing it to be managed at scale through Opengear's Lighthouse software platform for centralised configuration, monitoring, and access control across distributed sites.

Q: Can I purchase this product in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is a specialist B2B IT hardware reseller serving Australian businesses with fast local delivery. You can order the CM8148-10G-USB directly on the website, and the team can assist with volume pricing, lead times, and procurement requirements.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
