OPENGEAR CM8148-10G-USB | 48-Port Console Server, 10GbE SFP+, 8x USB-C, TPM 2.0, Docker, Dual AC, 1 Yr Foundation Support

OPENGEAR CM8148-10G-USB | 48-Port Console Server, 10GbE SFP+, 8x USB-C, TPM 2.0, Docker, Dual AC, 1 Yr Foundation Support

SKU:CM8148-10G-USB

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

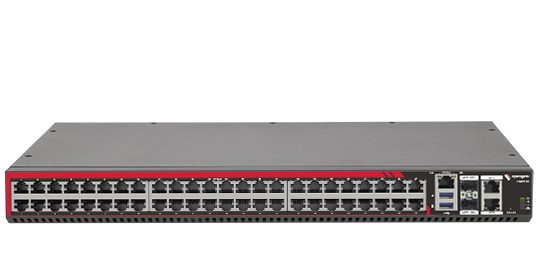

The Opengear CM8148-10G-USB is a high-density 1U console server delivering 48 selectable serial ports for out-of-band management of critical infrastructure at scale. Powered by an ARM 1.6 GHz dual-core processor with 2 GB RAM and 32 GB flash, it offers 2x 10GbE SFP+ uplinks and 2x 1GbE copper ports for resilient network connectivity, plus 8x USB-C and 2x USB-A ports for expanded device access. Built-in TPM 2.0 provides hardware-rooted security, Docker support enables containerised automation and edge applications, and dual AC (C14) power inputs ensure continuous availability. This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR) bundled with the hardware.

This listing includes 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR), sold together with the hardware as a mandatory bundle. Foundation Support delivers 8x5 regional live assistance across APAC, Americas, and EMEA via phone, email, and portal, with initial response times of up to 15 minutes via portal and 30 minutes via email. Critical (Priority 1) issues — including severe outages and DOA units — receive next-business-day RMA replacement in Australia (within 4 days internationally). Ongoing firmware and software updates are included throughout the support term, with a 95% SLA compliance target. Order direct from iptrading.com.au — Australian-owned and operated since 2001.

Features

- 48 selectable serial ports for high-density out-of-band console access to network and server infrastructure
- Dual 10GbE SFP+ uplinks plus 2x 1GbE copper ports for fast, resilient management network connectivity
- 8x USB-C and 2x USB-A ports provide flexible device and peripheral connectivity
- ARM 1.6 GHz dual-core processor with 2 GB RAM and 32 GB flash for responsive, embedded operations
- TPM 2.0 hardware security ensures cryptographic key protection and secure boot
- Docker support enables deployment of containerised edge applications and automation directly on the appliance
- Dual AC C14 power inputs deliver redundant power for high-availability deployments
- Includes 1 Year Opengear Foundation Support: 8x5 regional live assistance, next-business-day Australian RMA, firmware updates, and 95% SLA compliance

Warranty

1 Year Opengear Foundation Support

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial Ports: 48 selectable serial ports
- 10GbE Uplinks: 2x 10GbE SFP+ ports
- 1GbE Uplinks: 2x 1GbE copper Ethernet ports
- Processor: ARM 1.6 GHz dual-core
- Memory: 2 GB RAM
- Storage: 32 GB flash
- USB Ports: 8x USB-C, 2x USB-A
- Security: TPM 2.0 hardware security module
- Containerisation: Docker support for edge applications
- Power: Dual AC inputs with C14 power connectors
- Form Factor: 1U rack-mount
- Bundled Support: 1 Year Opengear Foundation Support (OG-FNTS-CM8100-1YR)

FAQs

Q: What is included in this listing?
A: This listing includes the Opengear CM8148-10G-USB console server hardware plus 1 Year of Opengear Foundation Support (OG-FNTS-CM8100-1YR) as a single bundled SKU.

Q: What does Opengear Foundation Support cover?
A: Foundation Support provides 8x5 regional technical assistance (8 AM–5 PM Mon–Fri) across APAC, Americas, and EMEA via phone, email, and portal. Initial response times are up to 15 minutes via portal and up to 30 minutes via email. Priority 1 (Critical) issues such as severe outages or DOA units receive next-business-day RMA replacement in Australia (within 4 days internationally). Firmware and software updates are also included throughout the support term, with a 95% SLA compliance target.

Q: Can I extend Foundation Support beyond 1 year?
A: Yes. Foundation Support is available in 1, 3, and 5-year terms, with a maximum of 7 years of total coverage. Co-terming with Lighthouse subscriptions and hardware warranties is also supported.

Q: How does the CM8148-10G-USB support out-of-band management?
A: The CM8148-10G-USB provides 48 selectable serial ports for direct console access to connected devices, combined with dual 10GbE SFP+ and 1GbE uplinks. This enables persistent out-of-band access even when the primary network is unavailable.

Q: Can I run custom applications on this console server?
A: Yes. The CM8148-10G-USB includes Docker support, allowing operators to deploy containerised automation scripts, monitoring agents, or edge applications directly on the device without additional hardware.

Q: Can I purchase the CM8148-10G-USB in Australia through IP Trading?
A: Yes. IP Trading is an Australian-owned and operated business, trading since 2001. You can order this product directly from iptrading.com.au with local support and fulfilment.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
